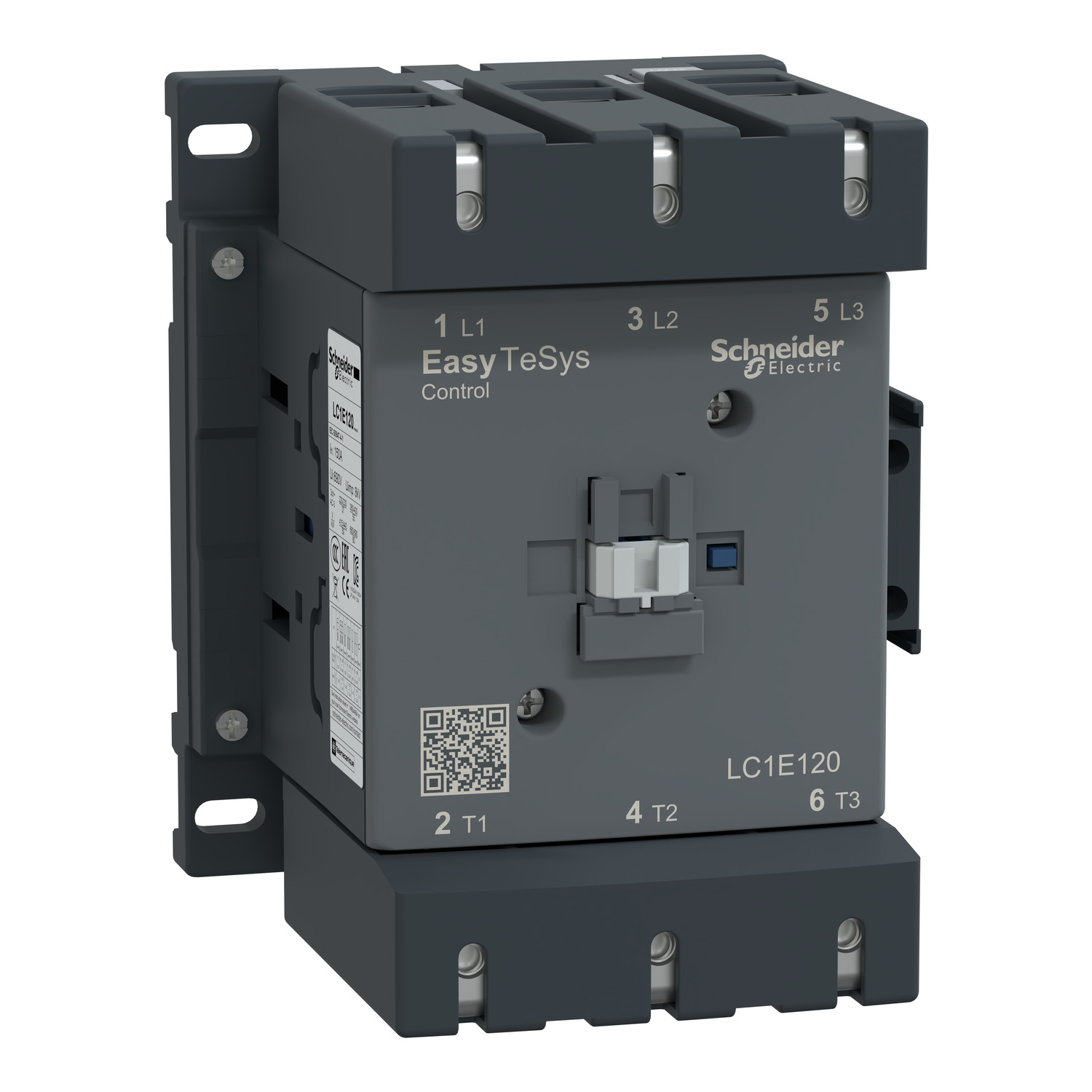

LC1E120U5 | Easy TeSys Contactor

Product Description

The LC1E120U5 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching and control of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 120 A. The contactor features a 240 V AC coil, making it ideal for industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO – Normally Open)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 120 A
• Coil Voltage: 240 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations
• Mounting: Screw mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC/EN 60947-4-1, UL 60947-4-1

Applications

The LC1E120U5 contactor is widely used in industrial and commercial environments for controlling motors, lighting, heating, and other electrical loads. It is particularly suitable for applications requiring reliable and durable switching performance.

Technical Specifications

Additional Information

For more details, including wiring diagrams and installation instructions, refer to the official Schneider Electric product documentation or contact their support team.
