LC1E160B5 | Easy TeSys Contactor

Product Overview

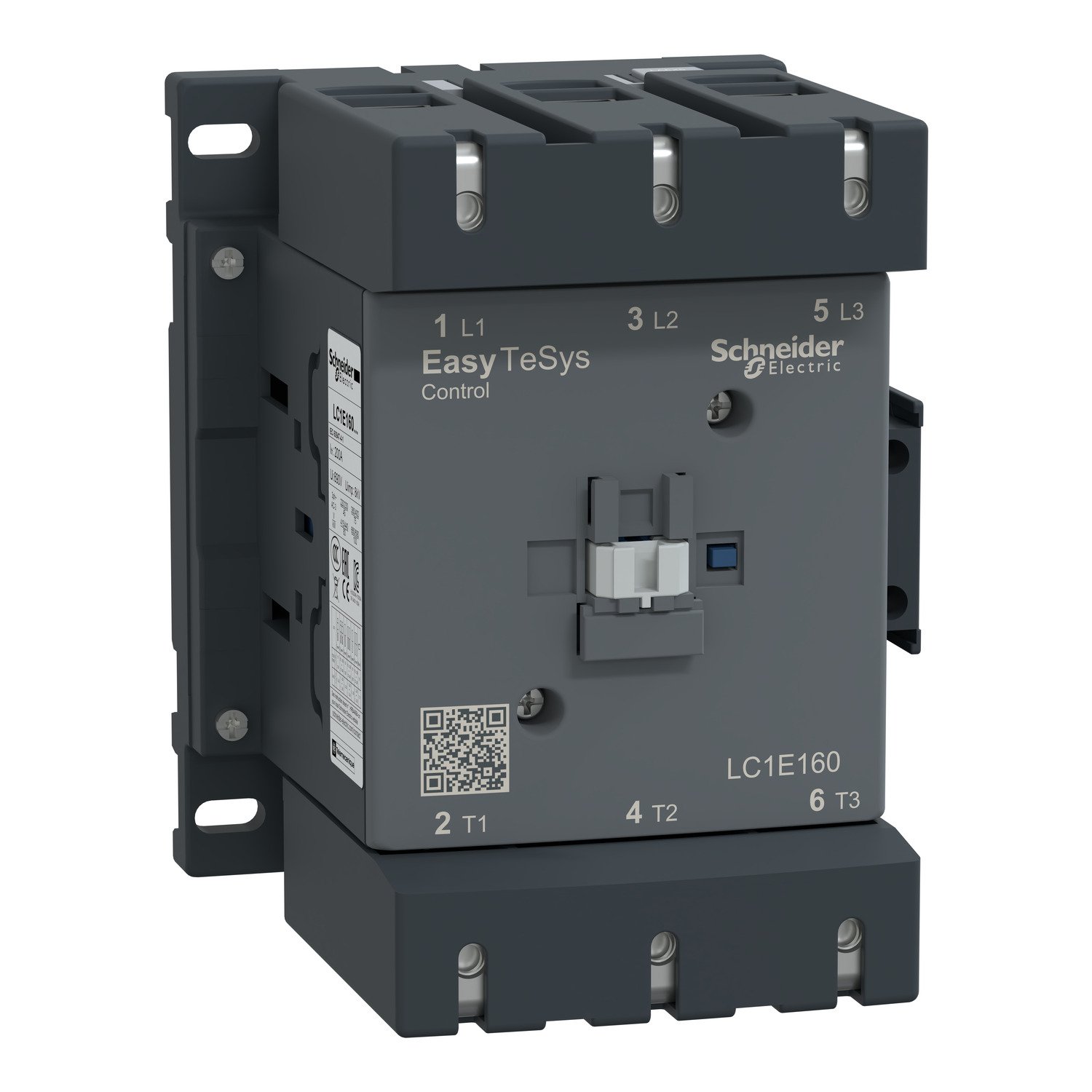

The LC1E160B5 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 160 A. The contactor features a 24 V AC coil, making it ideal for industrial and commercial applications.

Key Features

• Type: Contactor
• Poles: 3P (3 NO – Normally Open)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 160 A (AC-3)
• Coil Voltage: 24 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations under load
• Mounting: Screw mounting or snap-on mounting on DIN rail
• Terminals: Screw-clamp terminals for secure connections
• Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Environmental Protection: IP20 (finger-safe protection)
• Dimensions: Compact design for space-saving installation
• Accessories: Compatible with auxiliary contacts, timers, and mechanical interlocks

Applications

The LC1E160B5 contactor is widely used in industrial and commercial environments for controlling motors, pumps, compressors, and other electrical loads. It is particularly suitable for applications requiring reliable and durable switching performance.

Benefits

• High reliability and durability for demanding applications
• Easy installation and maintenance
• Compatible with a wide range of accessories for enhanced functionality
• Complies with international standards for safety and performance

Technical Specifications

Warranty and Support

Schneider Electric offers a standard warranty on the LC1E160B5 contactor. For technical support and warranty claims, contact Schneider Electric’s customer service or authorized distributors.
