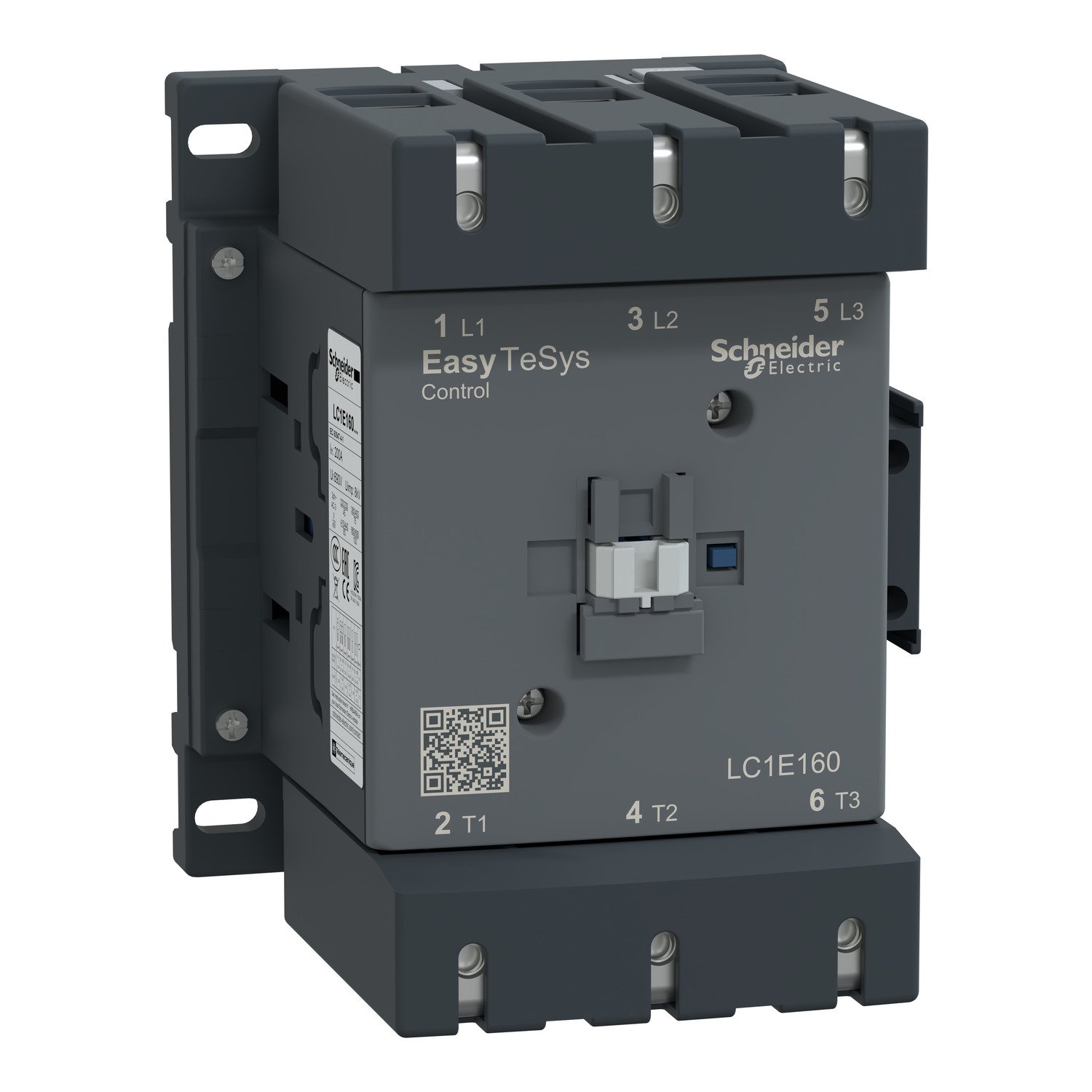

LC1E160F5 | Easy TeSys Contactor
Product Description
The LC1E160F5 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching and control of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 160 A. The contactor features a 110 V AC coil, making it ideal for industrial and commercial applications.
Key Features
- Type: Contactor
- Series: Easy TeSys
- Number of Poles: 3 (3 NO)
- Rated Operational Voltage (Ue): Up to 440 V AC
- Rated Operational Current (Ie): 160 A
- Utilization Category: AC-3
- Coil Voltage: 110 V AC
- Mounting: Screw or snap-on mounting
- Mechanical Durability: High mechanical endurance
- Electrical Durability: High electrical endurance
- Terminal Type: Screw terminals
- Environmental Compliance: RoHS compliant
- Safety Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
Applications
The LC1E160F5 contactor is widely used in:
- Motor control applications
- Industrial automation systems
- HVAC systems
- Power distribution systems
- Commercial and residential building automation
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Thermal Current (Ith) | 160 A |
| Power Consumption (Coil) | Approx. 50 VA |
| Operating Temperature Range | -25°C to +60°C |
| Weight | Approx. 1.2 kg |
Additional Information
For more details, refer to the official Schneider Electric product datasheet or contact their customer support team.
