LC1E1801B7 | Easy TeSys Contactor

Product Description

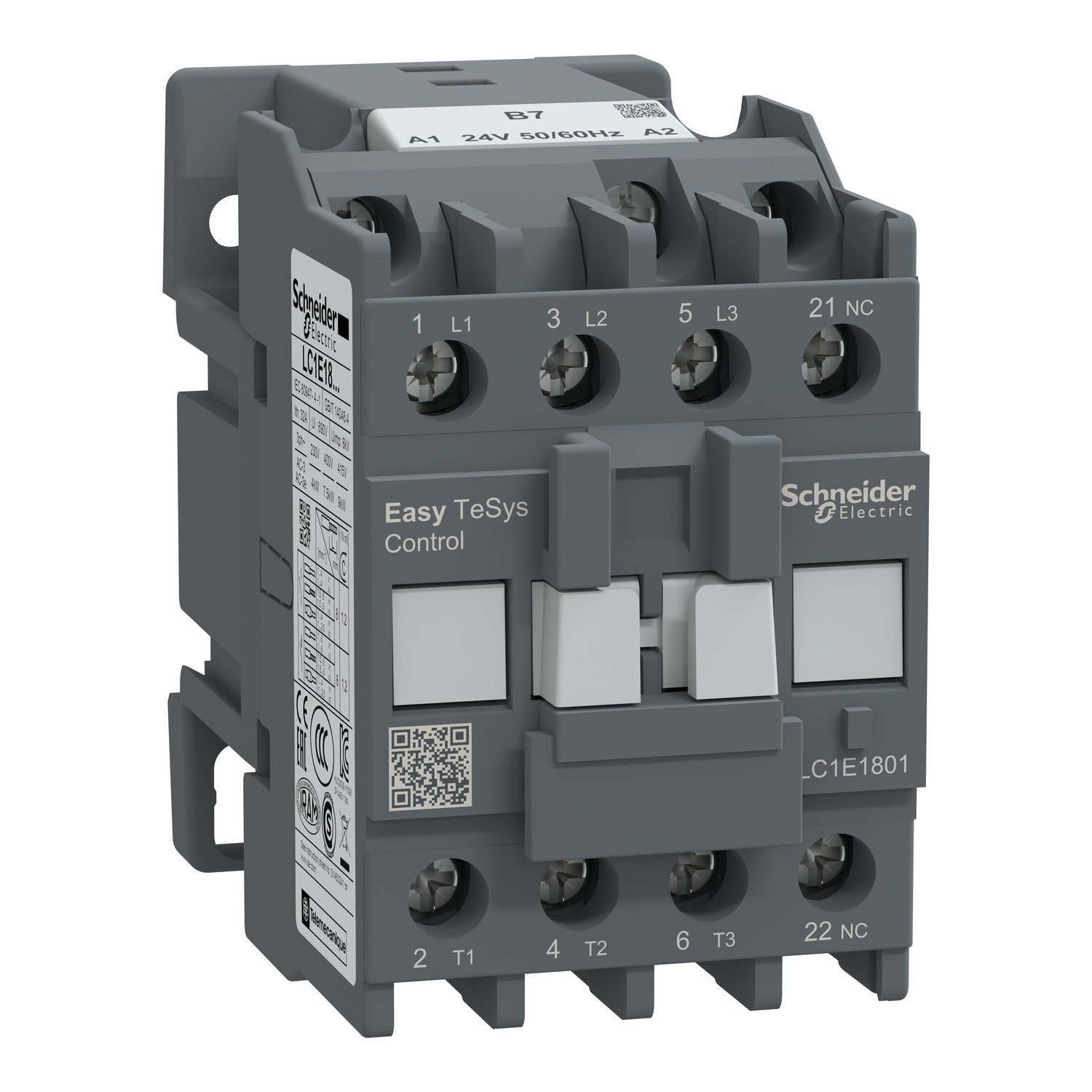

The LC1E1801B7 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 18 A. The contactor features a 24 V AC coil, making it ideal for use in control circuits.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO – Normally Open)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 18 A (AC-3)
• Coil Voltage: 24 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards: Complies with IEC 60947-4-1, UL 508, and CSA C22.2 No. 14 standards
• Environmental Compliance: RoHS compliant

Applications

The LC1E1801B7 contactor is widely used in industrial and commercial applications, including:

• Motor control for pumps, fans, and compressors
• HVAC systems
• Lighting control
• Power distribution systems

Additional Information

This contactor is part of Schneider Electric’s Easy TeSys range, known for its simplicity, reliability, and ease of installation. It is designed to provide efficient and safe operation in a variety of electrical control applications.
