LC1E2501M7 | Easy TeSys Contactor

Product Description

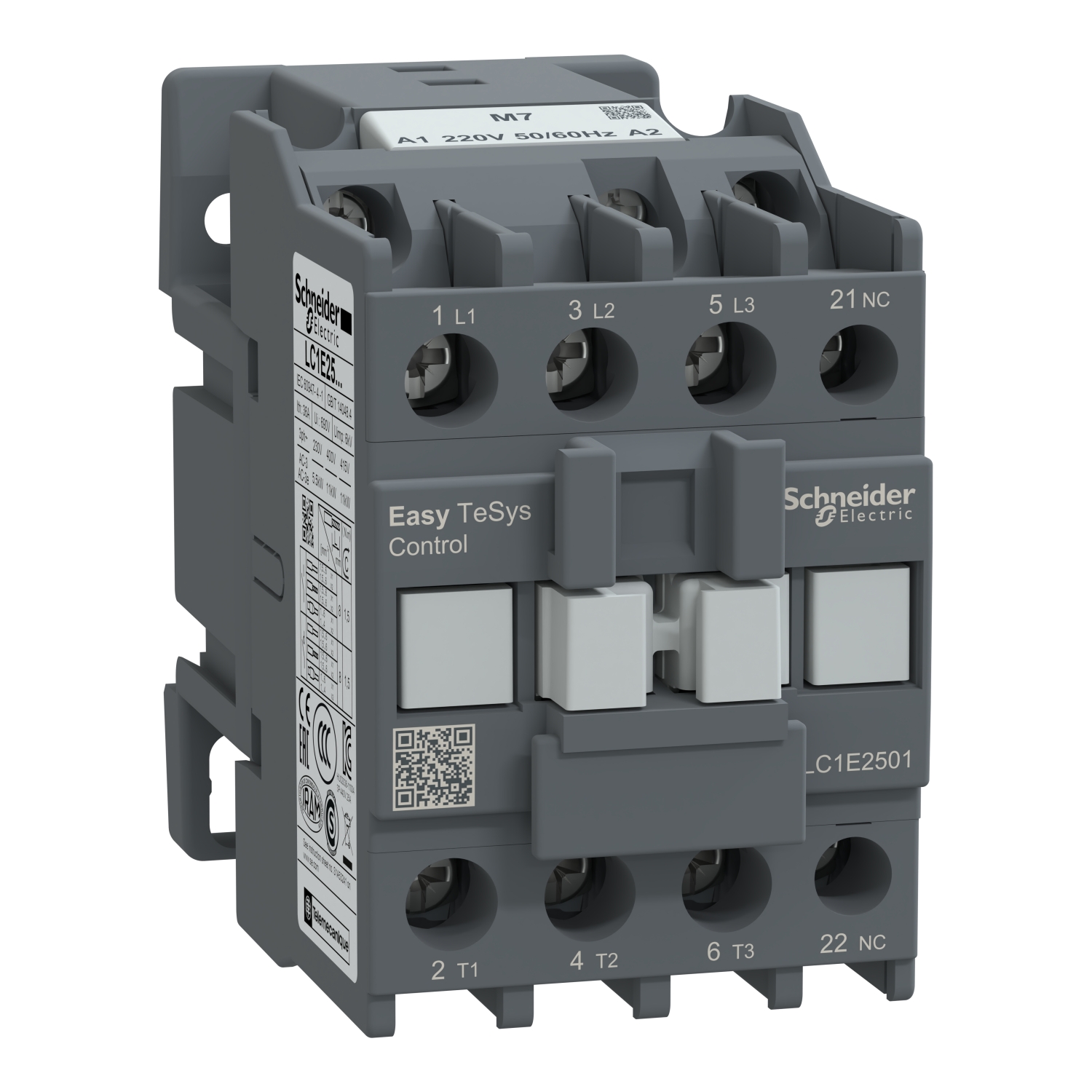

The LC1E2501M7 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 25 A. The contactor features a 220 V AC coil, making it ideal for industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO – Normally Open)
• Rated Operational Current (Ie): 25 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Coil Voltage: 220 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards Compliance: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
• Environmental Protection: IP20 (finger-safe protection)
• Operating Temperature Range: -25°C to +60°C

Applications

The LC1E2501M7 contactor is widely used in:

• Motor control applications
• Industrial machinery
• HVAC systems
• Pumps and compressors
• Lighting control systems

Additional Information

This contactor is part of Schneider Electric’s Easy TeSys range, known for its simplicity, reliability, and ease of installation. It is designed to meet the demands of modern electrical systems while ensuring safety and efficiency.
