LC1E2501N5 | Easy TeSys Contactor

Product Description

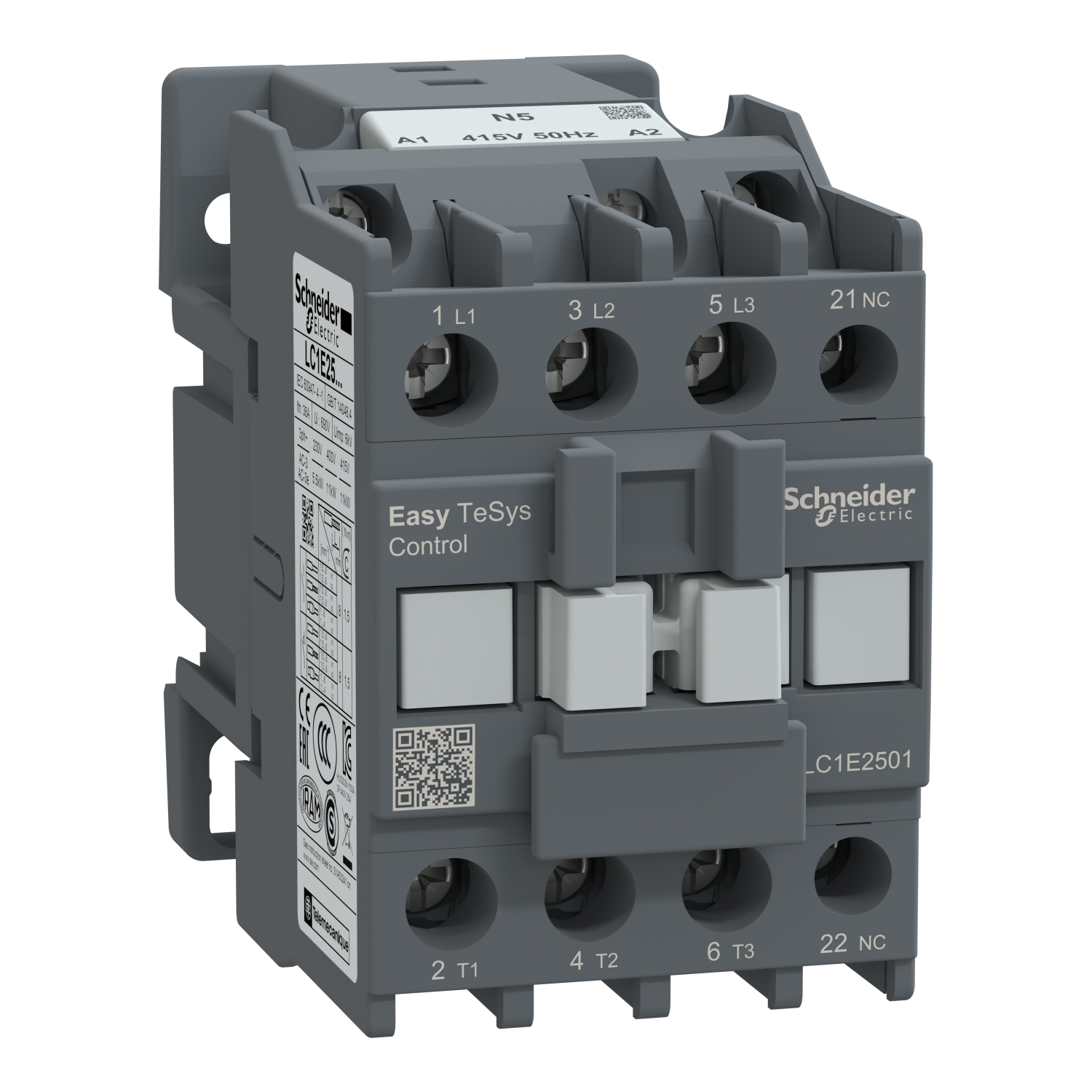

The LC1E2501N5 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 25 A. The contactor features a 415 V AC coil, making it ideal for industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO – Normally Open)
• Rated Operational Current (Ie): 25 A
• Rated Operational Voltage (Ue): Up to 440 V
• Coil Voltage: 415 V AC
• Application Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Safety Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1E2501N5 contactor is widely used in:

• Motor control applications
• Industrial automation systems
• HVAC systems
• Pump and fan control
• Lighting control systems

Technical Specifications

Additional Information

For more details, refer to the official Schneider Electric product datasheet or contact their customer support team.
