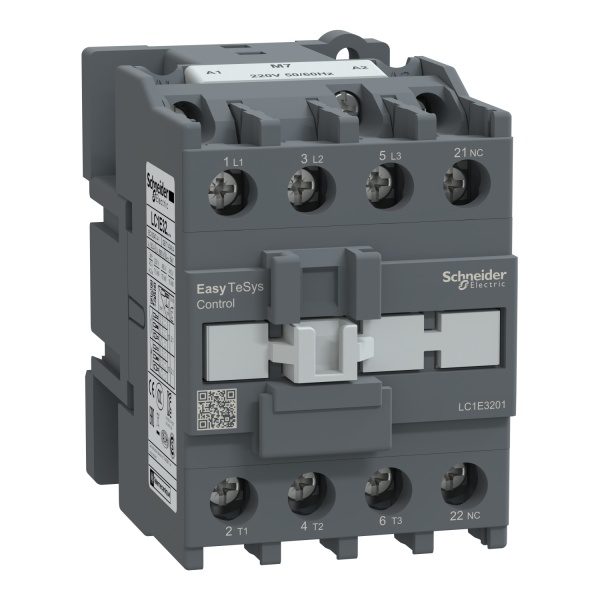

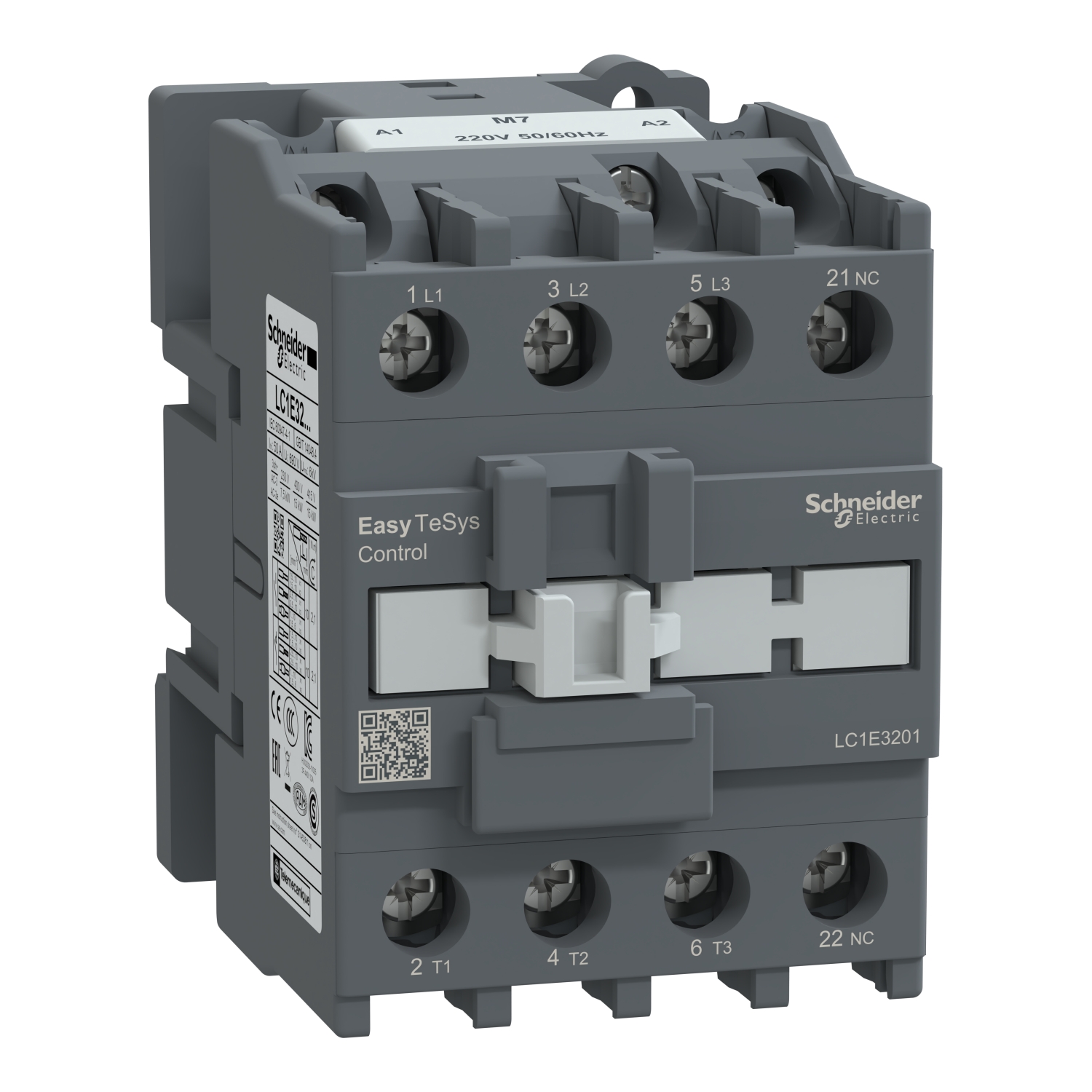

LC1E3201M7 | Easy TeSys Contactor
Product Overview
The LC1E3201M7 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series. It is designed for AC-3 applications and is suitable for controlling motors and other loads up to 32A at voltages of 440V or less. The contactor features a 220V AC coil, making it ideal for a wide range of industrial and commercial applications.
Key Features
- Type: Contactor
- Series: Easy TeSys
- Number of Poles: 3 (3 NO)
- Rated Operational Current (Ie): 32A
- Rated Operational Voltage (Ue): ≤ 440V
- Coil Voltage: 220V AC
- Application Category: AC-3
- Mounting: Screw mounting
- Terminal Type: Screw terminals
- Mechanical Durability: 10 million operations
- Electrical Durability: 1 million operations
- Ambient Temperature Range: -25°C to +60°C
- Protection Degree: IP20 (finger-safe)
- Dimensions: Compact design for space-saving installation
- Compliance: Meets international standards for safety and performance
Applications
The LC1E3201M7 contactor is suitable for a variety of applications, including:
- Motor control in industrial machinery
- HVAC systems
- Pump control
- Conveyor systems
- Lighting control
Benefits
- High reliability and durability
- Easy installation and maintenance
- Compact design for space-saving
- Compatible with a wide range of accessories
- Complies with international safety standards
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Operational Current (Ie) | 32A |
| Rated Operational Voltage (Ue) | ≤ 440V |
| Coil Voltage | 220V AC |
| Number of Poles | 3 (3 NO) |
| Mechanical Durability | 10 million operations |
| Electrical Durability | 1 million operations |
| Ambient Temperature Range | -25°C to +60°C |
| Protection Degree | IP20 |
Additional Information
For more detailed technical information, installation guidelines, and safety instructions, please refer to the official Schneider Electric product manual or contact their customer support.
