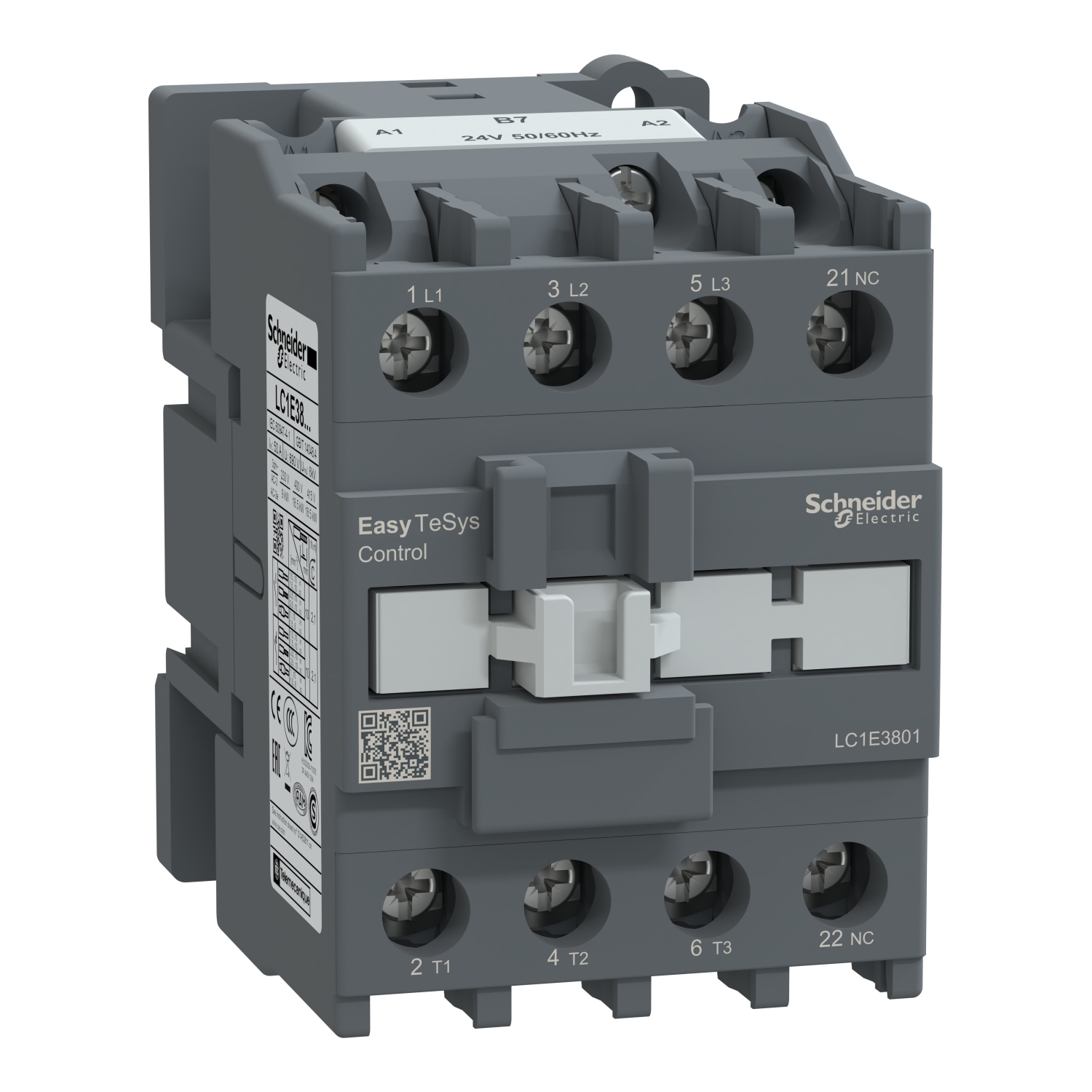

LC1E3801B7 | Easy TeSys Contactor

Product Description

The LC1E3801B7 is a 3-pole contactor from Schneider Electric’s Easy TeSys range, designed for reliable switching of electrical loads. It is suitable for AC-3 applications, such as controlling three-phase motors, and operates at voltages up to 440 V with a current rating of 38 A. The contactor features a 24 V AC coil, making it compatible with low-voltage control circuits.

Key Features

• Type: Contactor
• Poles: 3P (3 Normally Open Contacts)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 38 A (AC-3)
• Coil Voltage: 24 V AC
• Application Category: AC-3 (Suitable for squirrel cage motors)
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations under load
• Mounting: Screw mounting or snap-on mounting on DIN rail
• Terminal Type: Screw terminals for secure connections
• Dimensions: Compact design for space-saving installation
• Standards Compliance: Meets IEC/EN 60947-4-1 standards
• Environmental Conditions: Suitable for use in temperatures ranging from -25°C to +60°C
• Safety Features: Built-in arc suppression for safe operation

Applications

The LC1E3801B7 contactor is ideal for use in industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Machine tools
• Lighting control

Additional Information

This contactor is part of Schneider Electric’s Easy TeSys range, known for its reliability, ease of installation, and maintenance. It is designed to provide long-lasting performance in demanding environments.

Warranty

Schneider Electric offers a standard warranty on this product, ensuring quality and reliability. For warranty details, please refer to the manufacturer’s documentation.
