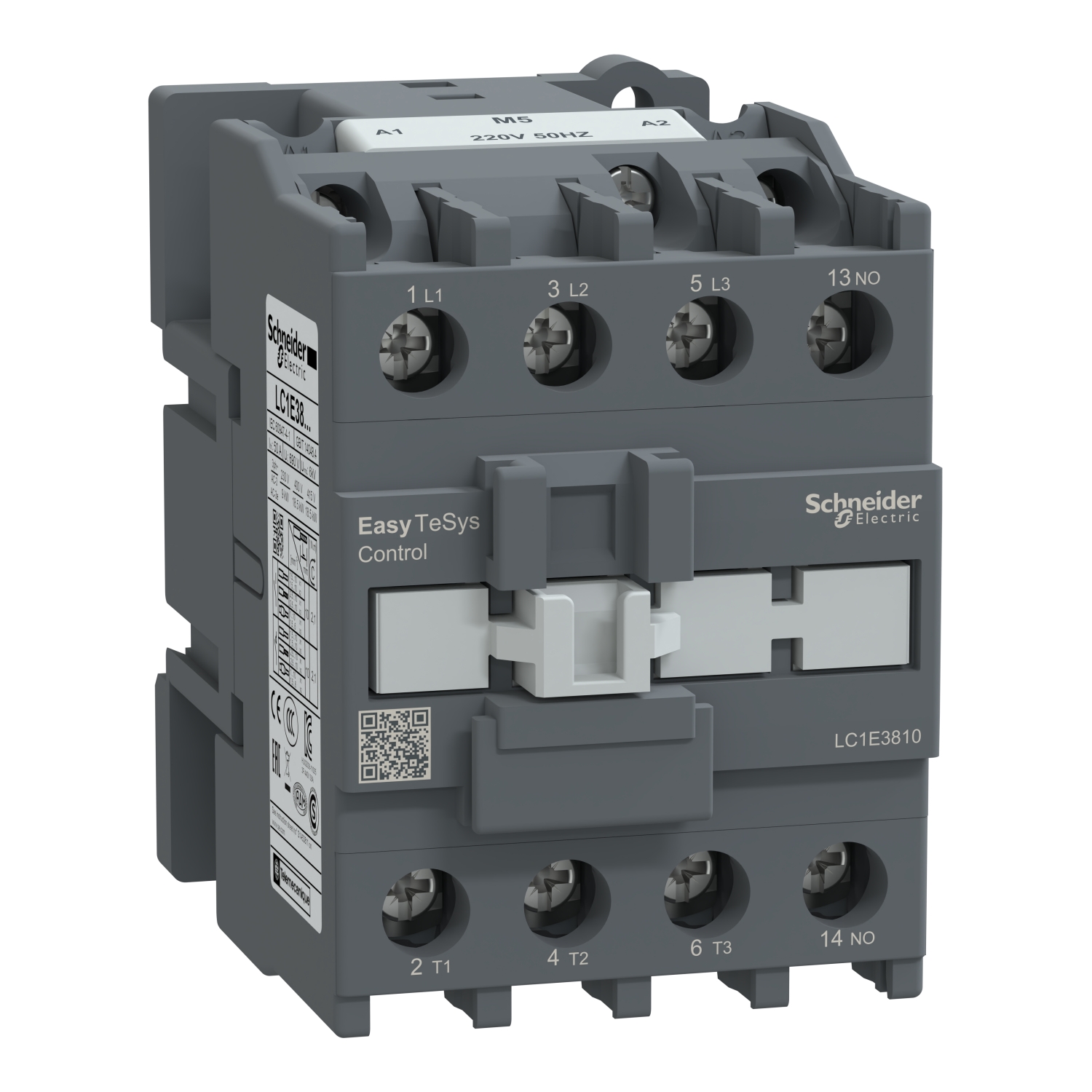

LC1E3810M5 | Easy TeSys Contactor
Product Description
The LC1E3810M5 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for a wide range of industrial and commercial applications, offering high performance and durability.
Key Features
- Type: Contactor
- Poles: 3P (3 Normally Open Contacts)
- Rated Operational Current (Ie): 38A at AC-3
- Rated Operational Voltage (Ue): ≤ 440V AC
- Coil Voltage: 220V AC
- Utilization Category: AC-3 (Squirrel cage motors)
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Mounting: Screw mounting or snap-on mounting
- Terminal Type: Screw terminals
- Dimensions: Compact design for space-saving installation
- Standards: Complies with IEC 60947-4-1 and other international standards
- Environmental Protection: IP20 (finger-safe protection)
- Accessories: Compatible with auxiliary contacts, timers, and mechanical interlocks
Applications
The LC1E3810M5 is ideal for controlling motors, lighting, heating, and other electrical loads in various industries, including manufacturing, HVAC, and building automation.
Benefits
- High reliability and long service life
- Easy installation and maintenance
- Compact and modular design
- Wide range of compatible accessories
- Energy-efficient operation
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Power (P) | Up to 18.5 kW at 400V AC |
| Coil Power Consumption | Low power consumption for energy efficiency |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Safety Information
Ensure proper installation and operation by qualified personnel. Follow all safety guidelines provided in the user manual.
