LC1E40B7 | Easy TeSys Contactor

Product Description

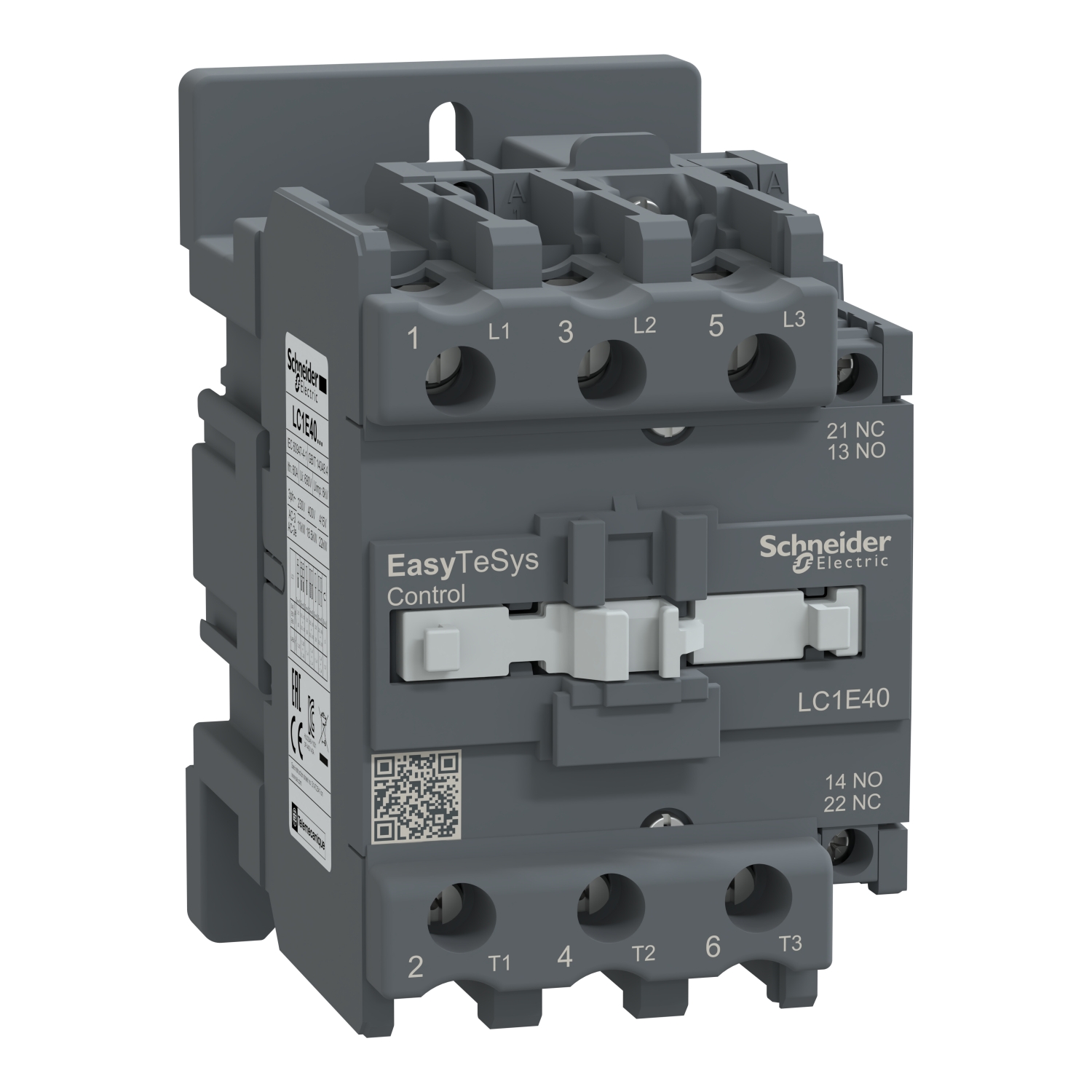

The LC1E40B7 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 40 A. The contactor features a 24 V AC coil, making it ideal for a wide range of industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Poles: 3 (3 Normally Open – NO)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 40 A
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Coil Voltage: 24 V AC
• Mounting: Screw mounting
• Terminal Type: Screw terminals
• Mechanical Durability: High number of mechanical operations
• Electrical Durability: High number of electrical operations
• Environmental Compliance: RoHS compliant
• Safety Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1E40B7 contactor is widely used in:

• Motor control applications
• Industrial machinery
• HVAC systems
• Pump and fan control
• Lighting control systems

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approx. 0.35 kg

Additional Information

For more details, refer to the official Schneider Electric product documentation or contact their customer support.
