LC1E40N5 | Easy TeSys Contactor
Product Description

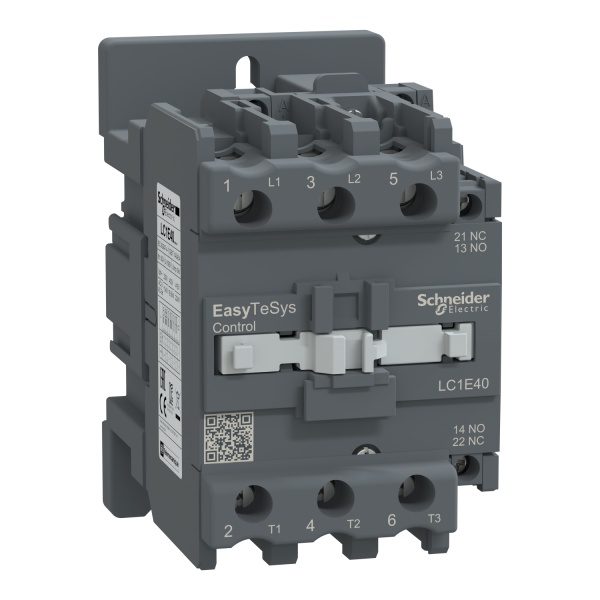

The LC1E40N5 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications, such as controlling three-phase motors, and is rated for currents up to 40A at voltages up to 440V. The contactor features a 415V AC coil, making it ideal for industrial and commercial applications.
Key Features
- Poles: 3P (3 Normally Open Contacts)
- Rated Current: 40A
- Rated Voltage: ≤ 440V
- Coil Voltage: 415V AC
- Application Category: AC-3 (Suitable for squirrel cage motors)
- Mounting: Screw mounting or snap-on mounting on 35mm DIN rail
- Mechanical Durability: Up to 10 million operations
- Electrical Durability: Up to 1 million operations
- Contact Material: Silver alloy for high reliability and low contact resistance
- Enclosure: IP20 protection (finger-safe design)
- Compliance: Meets international standards such as IEC 60947-4-1
- Accessories: Compatible with auxiliary contacts, timers, and mechanical interlocks
Applications
The LC1E40N5 contactor is widely used in:
- Motor control in industrial machinery
- HVAC systems
- Pump and fan control
- Lighting control systems
- Power distribution systems
Technical Specifications
Parameter | Value |
---|---|
Rated Operational Power (AC-3) | 18.5 kW at 400V |
Rated Insulation Voltage | 690V |
Coil Power Consumption | Approx. 8VA |
Operating Temperature | -25°C to +60°C |
Weight | Approx. 0.45 kg |
Additional Notes
Ensure proper installation and maintenance by qualified personnel. Always refer to the product datasheet and user manual for detailed instructions and safety guidelines.
