LC1E40U5 | Easy TeSys Contactor

Product Description

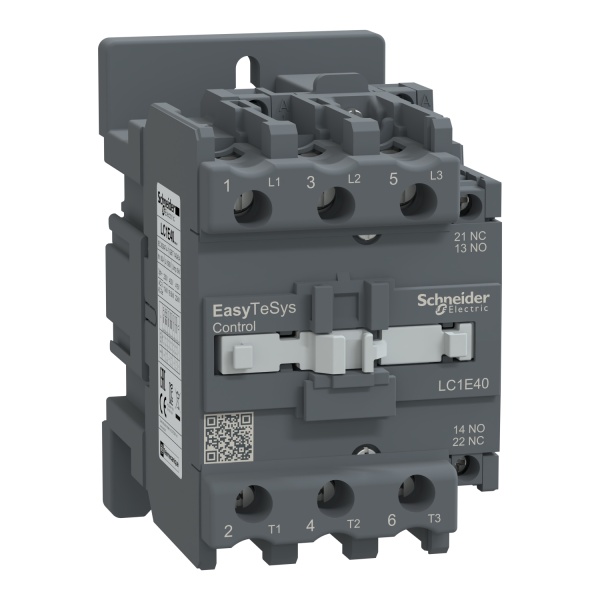

The LC1E40U5 is a 3-pole (3 NO) contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 40 A. The contactor features a 240 V AC coil, making it ideal for industrial and commercial applications.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO)
• Rated Operational Current (Ie): 40 A
• Rated Operational Voltage (Ue): ≤ 440 V
• Coil Voltage: 240 V AC
• Application Category: AC-3
• Mounting: Screw mounting
• Terminal Type: Screw terminals
• Mechanical Durability: 10 million operations
• Electrical Durability: 1 million operations
• Ambient Temperature Range: -25°C to +60°C
• Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14
• Dimensions: Compact design for space-saving installation
• Weight: Approximately 0.5 kg

Applications

The LC1E40U5 contactor is widely used in:

• Motor control applications
• Industrial automation systems
• HVAC systems
• Pump and fan control
• Lighting control systems

Benefits

• High reliability and durability
• Easy installation and maintenance
• Compact design for efficient space utilization
• Compliance with international standards
• Versatile application in various industries

Additional Resources

For more details, refer to the Schneider Electric official website or the product datasheet.
