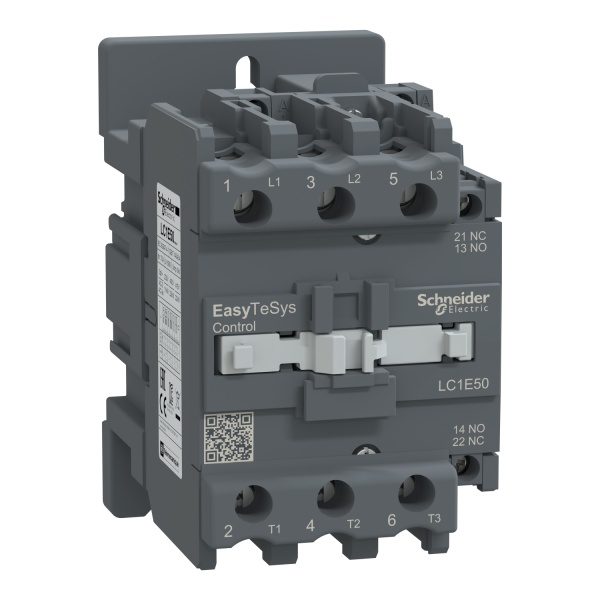

LC1E50B7 | Easy TeSys Contactor

Product Description

The LC1E50B7 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications, such as controlling three-phase motors, and operates at voltages up to 440 V with a current rating of 50 A. The contactor features a 24 V AC coil, making it compatible with low-voltage control circuits.

Key Features

• Type: Contactor
• Series: Easy TeSys
• Number of Poles: 3 (3 NO – Normally Open)
• Rated Operational Voltage (Ue): Up to 440 V AC
• Rated Operational Current (Ie): 50 A (AC-3)
• Coil Voltage: 24 V AC
• Application: AC-3 (Motor Control)
• Mounting: Screw or snap-on mounting
• Mechanical Durability: High mechanical endurance
• Electrical Durability: High electrical endurance
• Standards: Complies with IEC/EN 60947-4-1 standards
• Environmental Protection: IP20 (Finger-safe design)
• Dimensions: Compact design for space-saving installation
• Accessories: Compatible with auxiliary contacts, timers, and mechanical interlocks

Applications

The LC1E50B7 contactor is ideal for use in industrial and commercial applications, including:

• Three-phase motor control
• HVAC systems
• Pumps and compressors
• Conveyors and material handling systems
• Lighting control

Technical Specifications

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.
