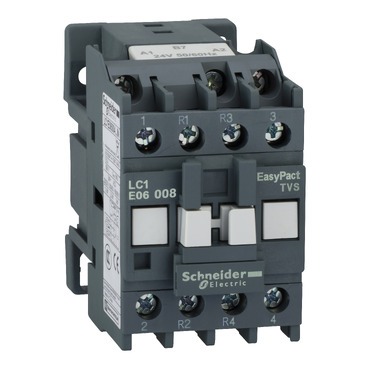

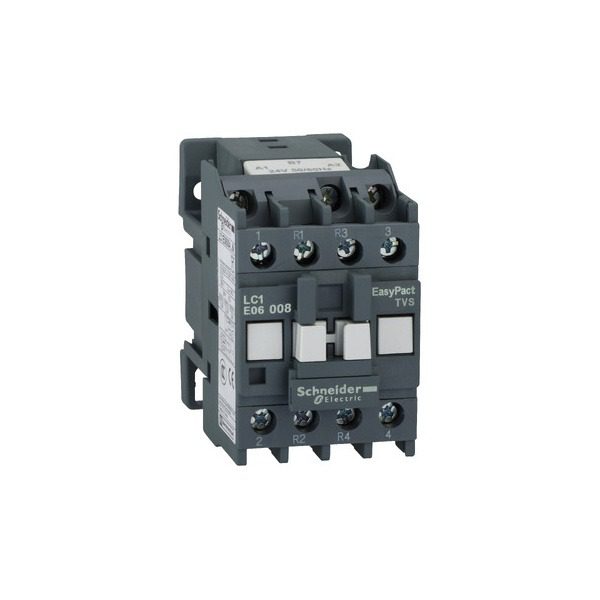

LC1E06008M5WBIN – Easy TeSys Contactor

Product Description

The LC1E06008M5WBIN is a 4-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical circuits. It is suitable for a wide range of industrial and commercial applications, offering high performance and durability.

Key Features

• Type: Contactor
• Poles: 4P (4 Poles)
• Rated Current: 20A (AC1)
• Contact Configuration: 2NO (Normally Open) + 2NC (Normally Closed)
• Rated Voltage: 220V AC
• Frequency: 50Hz
• Mounting: DIN Rail Mounting
• Terminal Type: Screw Clamp
• Coil Voltage: 220V AC
• Mechanical Life: Up to 10 million operations
• Electrical Life: Up to 1 million operations
• Enclosure Material: Thermoplastic, Flame Retardant
• Operating Temperature: -25°C to +60°C
• Protection Degree: IP20 (Finger-safe)
• Compliance: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Applications

The LC1E06008M5WBIN contactor is ideal for use in:

• Motor control applications
• Lighting control systems
• Heating and ventilation systems
• Industrial automation
• Power distribution systems

Benefits

• Compact and modular design for easy installation
• High switching capacity for reliable performance
• Durable construction for long service life
• Compatible with a wide range of accessories
• Complies with international safety standards

Dimensions

Dimensions: 90mm (H) x 45mm (W) x 80mm (D)

Weight

Weight: Approximately 0.5 kg
