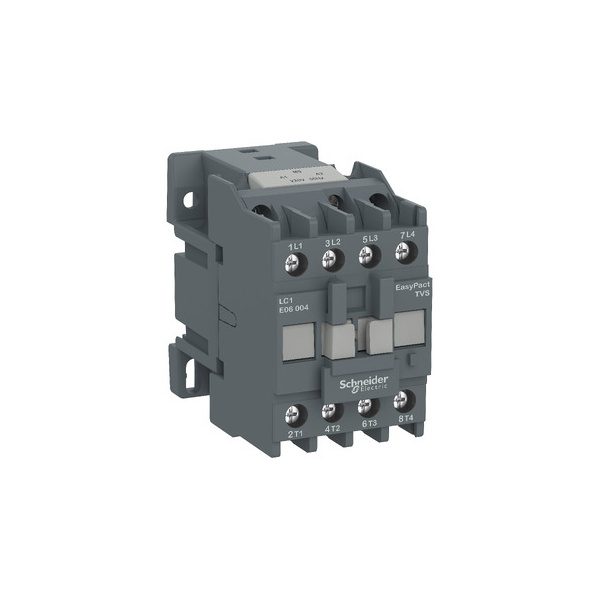

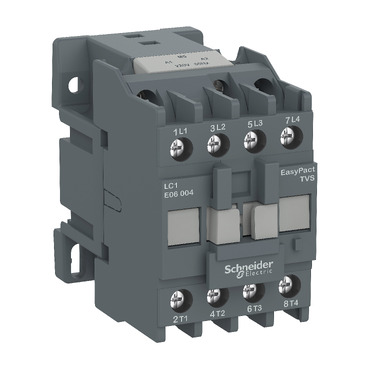

LC1E06004M5WBIN | Easy TeSys Contactor
Product Overview
The LC1E06004M5WBIN is a 4-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for a wide range of applications, including motor control, lighting, and heating systems.
Key Features
- Poles: 4P (4 Normally Open Contacts)
- Rated Current: 20A (AC1)
- Voltage: 220V AC
- Frequency: 50Hz
- Mounting: Screw mounting
- Terminal Type: Screw terminals
- Coil Voltage: 220V AC
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations
- Enclosure: IP20 protection
- Dimensions: Compact design for space-saving installation
- Compliance: Meets international standards for safety and performance
Applications
The LC1E06004M5WBIN is ideal for use in:
- Motor control circuits
- Lighting control systems
- Heating and ventilation systems
- Industrial automation
Benefits
- High reliability and durability
- Easy installation and maintenance
- Compact and space-saving design
- Compatible with a wide range of accessories
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Operational Current (Ie) | 20A (AC1) |
| Rated Operational Voltage (Ue) | 220V AC |
| Rated Frequency | 50Hz |
| Coil Voltage | 220V AC |
| Mechanical Life | 10 million operations |
| Electrical Life | 1 million operations |
| Protection Degree | IP20 |
Additional Information
For more details, refer to the product datasheet or contact Schneider Electric support.
