LC1E09004M5WBIN – Easy TeSys Contactor

Product Overview

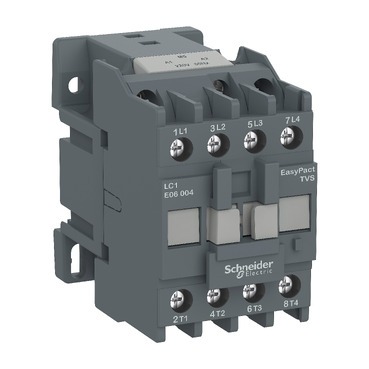

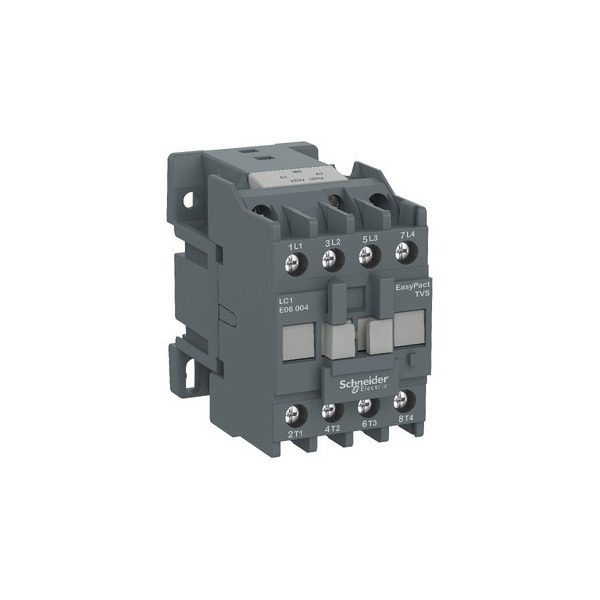

The LC1E09004M5WBIN is a 4-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for a wide range of industrial and commercial applications, offering high performance and durability.

Key Features

• Type: Contactor
• Poles: 4P (4 Normally Open Contacts)
• Rated Current: 25A (AC1)
• Voltage: 220V AC
• Frequency: 50Hz
• Mounting: Screw Mounting
• Terminal Type: Wire Bridge (WB)
• Coil Voltage: 220V AC
• Mechanical Life: Up to 10 million operations
• Electrical Life: Up to 1 million operations
• Enclosure: IP20 (Finger-safe design)
• Compliance: IEC/EN 60947-4-1 standards

Applications

The LC1E09004M5WBIN is ideal for controlling motors, lighting, heating, and other electrical loads in various environments, including:

• Industrial machinery
• HVAC systems
• Commercial buildings
• Automation systems

Benefits

• Compact and modular design for easy installation
• High switching capacity for reliable performance
• Energy-efficient coil design
• Durable construction for long service life
• Compatible with auxiliary contacts and other accessories

Technical Specifications

Additional Information

For more details, refer to the product datasheet or contact Schneider Electric support.
