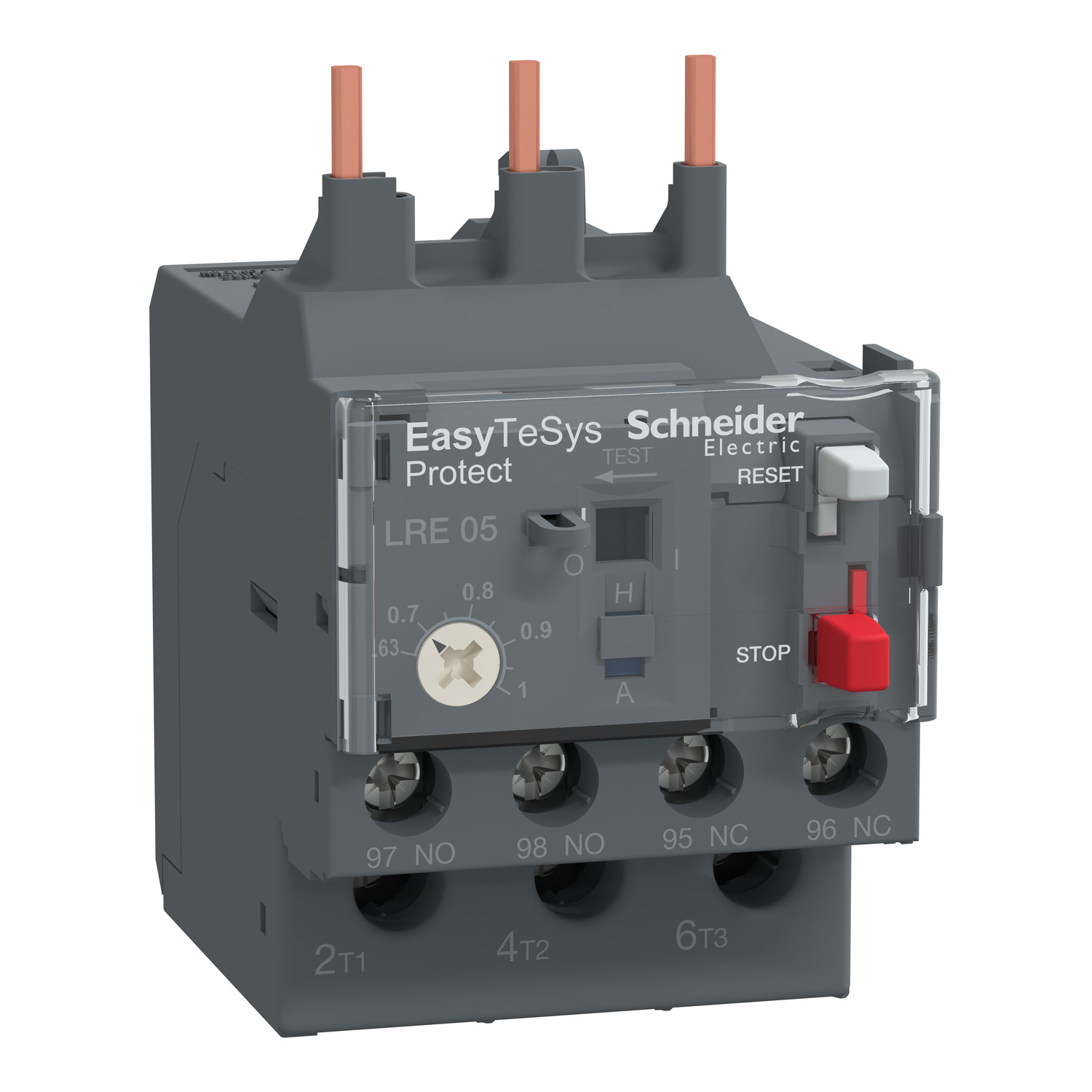

LRE05 | Easy TeSys Differential Thermal Overload Relay

Product Overview

The LRE05 is a differential thermal overload relay designed by Schneider Electric as part of the Easy TeSys series. It is specifically engineered to protect motors from overheating and overcurrent conditions. With a current range of 0.63 to 1 A and a class 10A tripping characteristic, this relay ensures reliable and precise motor protection.

Key Features

• Current Range: 0.63 to 1 A
• Tripping Class: Class 10A
• Differential Thermal Protection: Provides accurate and reliable motor protection by detecting temperature changes.
• Compact Design: Space-saving and easy to integrate into control panels.
• Manual Reset: Allows for safe and controlled restarting of the motor after a trip.
• Compatibility: Designed to work seamlessly with TeSys contactors and other Schneider Electric components.
• LED Indicators: Visual status indication for easy monitoring of the relay’s operation.
• Robust Construction: Built to withstand harsh industrial environments.
• Compliance: Meets international standards for safety and performance.

Applications

The LRE05 is ideal for use in various industrial and commercial applications, including:

• Motor protection in HVAC systems
• Pump and fan control
• Conveyor systems
• Machine tools
• Compressors and other motor-driven equipment

Technical Specifications

Warranty and Support

Schneider Electric offers a standard warranty on the LRE05 relay. For technical support and warranty claims, contact Schneider Electric’s customer service or visit their official website.
