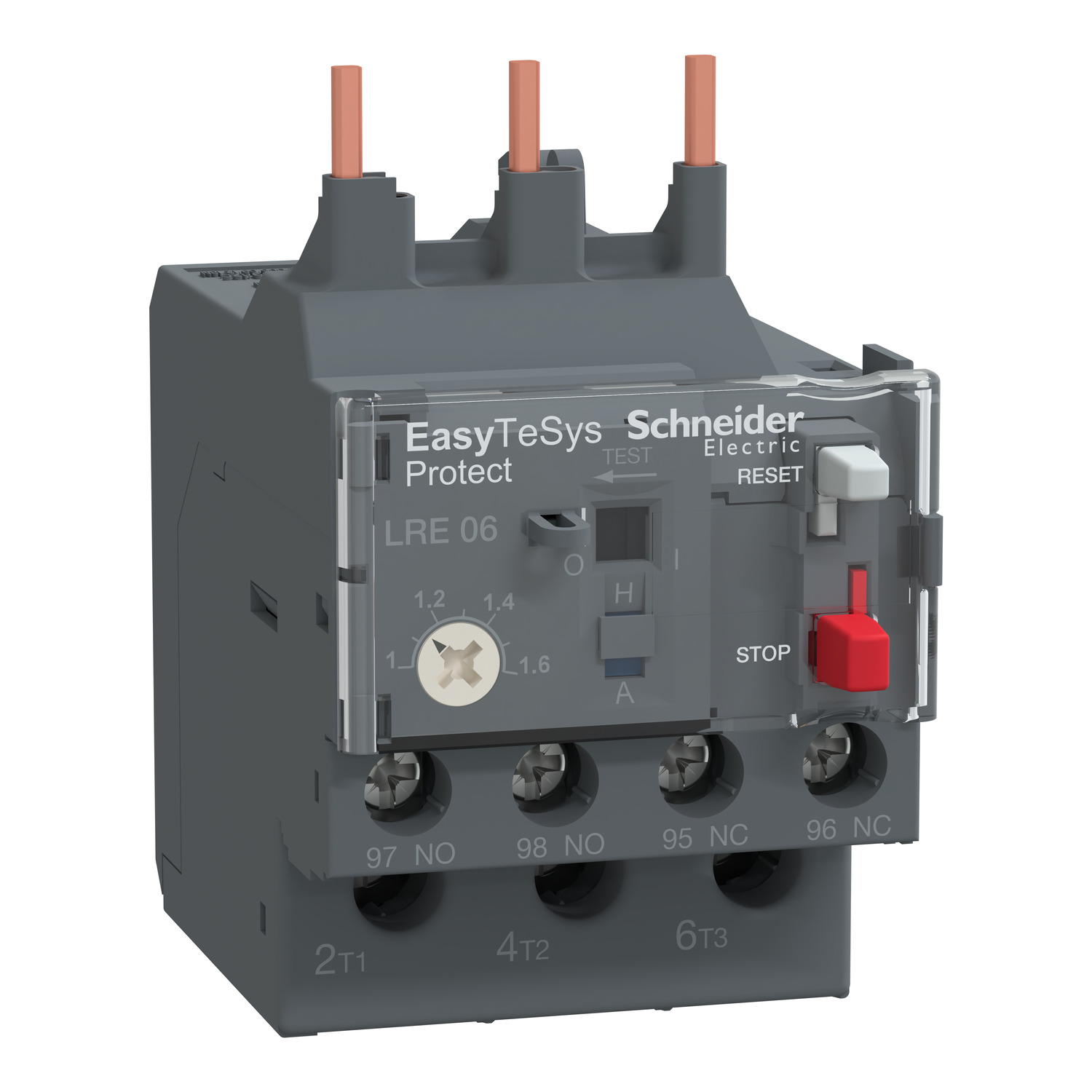

LRE06 | Easy TeSys Differential Thermal Overload Relay

Product Overview

The LRE06 is a differential thermal overload relay designed by Schneider Electric as part of the Easy TeSys series. It is engineered to provide reliable motor protection by monitoring the current flow and tripping the circuit in case of overload or phase failure. This relay is ideal for applications requiring precise and dependable motor protection.

Key Features

• Current Range: 1…1.6 A
• Class: 10A
• Thermal Protection: Provides accurate thermal overload protection for motors.
• Phase Failure Protection: Detects and responds to phase loss, ensuring motor safety.
• Compact Design: Space-saving and easy to integrate into control panels.
• Manual/Auto Reset: Offers flexibility with manual or automatic reset options.
• Compatibility: Designed to work seamlessly with TeSys contactors.
• Durability: Built to withstand harsh industrial environments.
• Easy Installation: Simple to install and configure, reducing setup time.
• LED Indicators: Visual status indicators for quick diagnostics.

Applications

The LRE06 is suitable for a wide range of industrial and commercial applications, including:

• Motor protection in HVAC systems
• Pump and fan control
• Conveyor systems
• Machine tools
• Compressors

Technical Specifications

Compliance and Certifications

• CE Marked
• RoHS Compliant
• UL Listed
• IEC/EN 60947-4-1 Compliant

Warranty

Schneider Electric offers a standard warranty of 2 years for the LRE06 thermal overload relay, subject to terms and conditions.
