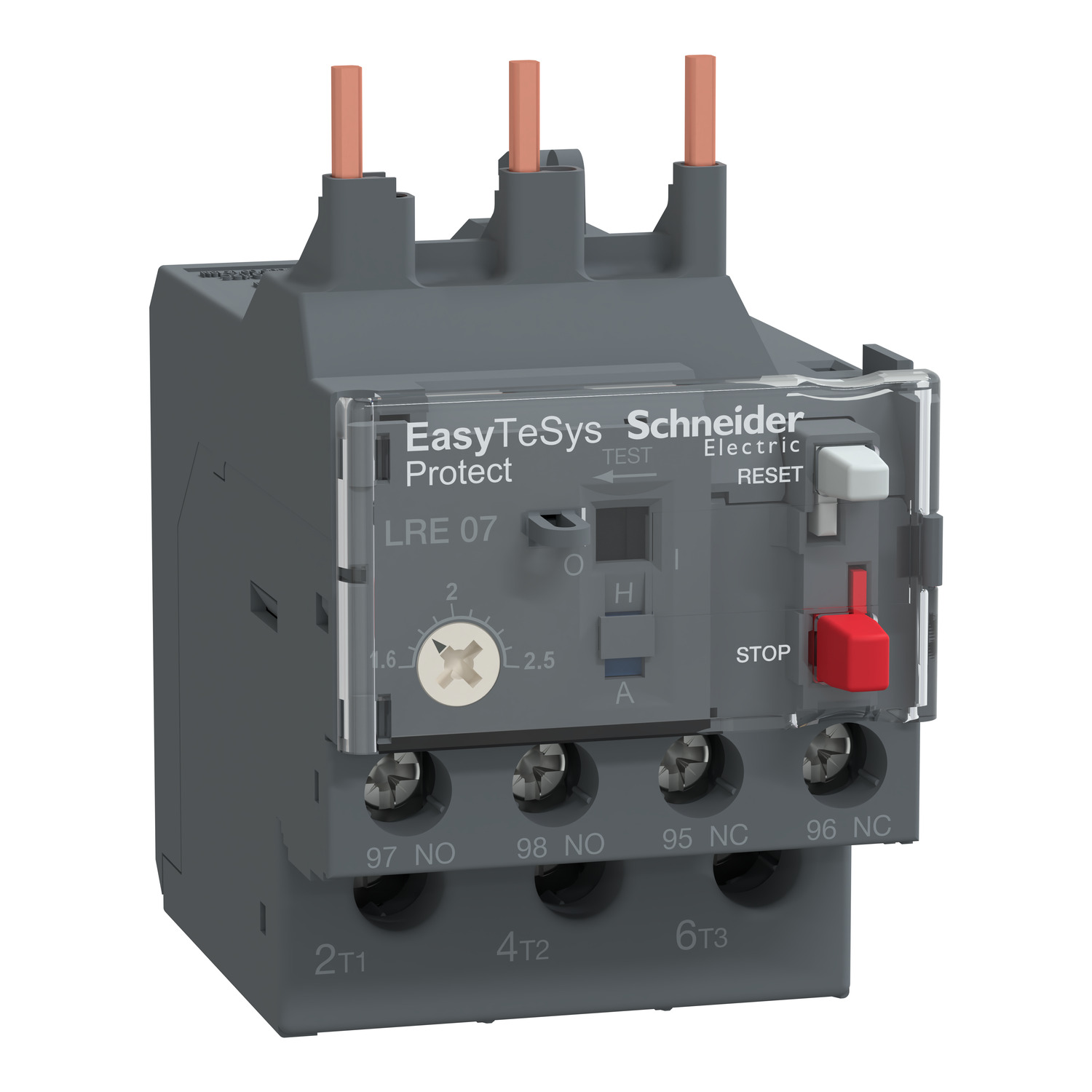

LRE07 | Easy TeSys Differential Thermal Overload Relay
Product Overview
The LRE07 is a differential thermal overload relay designed by Schneider Electric for motor protection. It is part of the Easy TeSys series, offering reliable and precise protection for motors in various industrial applications.
Key Features
- Current Range: 1.6 to 2.5 A
- Class: 10A
- Type: Differential Thermal Overload Relay
- Protection Class: Class 10A (fast tripping for motor protection)
- Mounting: Easy installation on TeSys contactors
- Adjustable Settings: Allows precise current adjustment for optimal motor protection
- Compact Design: Space-saving and easy to integrate into control panels
- Compatibility: Designed for use with TeSys contactors and other Schneider Electric components
- Reliability: Ensures consistent performance and protection against overloads
- Safety: Protects motors from overheating and potential damage
Applications
The LRE07 is ideal for use in:
- Industrial motor control systems
- HVAC systems
- Pumps and compressors
- Conveyor systems
- Machinery and equipment requiring motor protection
Technical Specifications
| Parameter | Value |
|---|---|
| Current Range | 1.6 to 2.5 A |
| Class | 10A |
| Mounting Type | DIN rail or direct mounting |
| Operating Temperature | -20°C to +60°C |
| Standards | IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 |
Benefits
- Enhanced motor protection with precise current adjustment
- Easy integration with TeSys contactors
- Compact and space-saving design
- Reliable performance in demanding environments
Warranty and Support
Schneider Electric offers a standard warranty on the LRE07. For technical support and warranty claims, contact Schneider Electric customer service.
