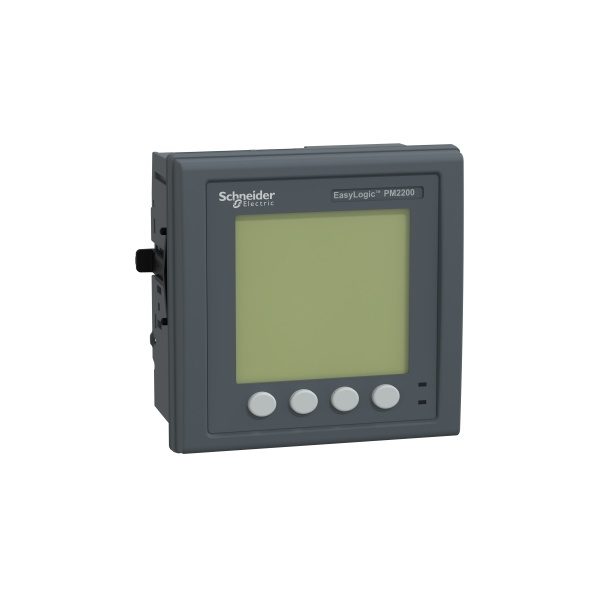

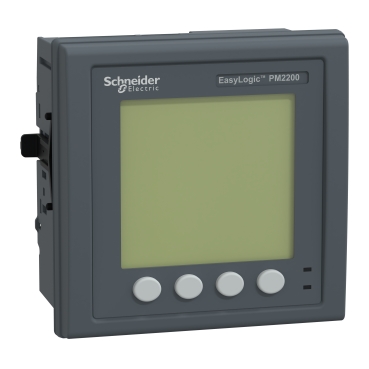

METSEPM2230D | EasyLogic PM2230 Power & Energy Meter

Manufacturer: Schneider Electric

Model: EasyLogic PM2230

Product Code: METSEPM2230D

Description: The EasyLogic PM2230 is a high-accuracy power and energy meter designed for monitoring and managing electrical systems. It is suitable for a wide range of applications, including commercial, industrial, and utility environments.

Key Features:

• Accuracy Class: 0.5S as per IEC 62053-22
• Measurement Capabilities: Measures up to the 31st harmonic for comprehensive power quality analysis.
• Display: LCD screen for easy reading of measurements and parameters.
• Communication: RS485 interface with Modbus RTU protocol for seamless integration into building management systems.
• Power Quality Monitoring: Tracks voltage, current, power (active, reactive, apparent), energy (active, reactive), power factor, frequency, and harmonics.
• Installation: DIN rail mounting for easy installation in electrical panels.
• Inputs: Supports direct connection to current transformers (CTs) and voltage inputs.
• Certifications: Complies with international standards such as IEC, EN, and ANSI.
• Applications: Ideal for energy management, sub-metering, and power quality monitoring in commercial and industrial facilities.

Technical Specifications:

Applications:

• Energy monitoring and management
• Power quality analysis
• Sub-metering for tenant billing
• Integration with building management systems (BMS)

Benefits:

• High accuracy for reliable measurements
• Comprehensive power quality monitoring
• Easy integration with existing systems
• Compact design for space-saving installation

Support and Documentation:

For technical support, user manuals, and additional resources, visit the official Schneider Electric website or contact your local Schneider Electric representative.
