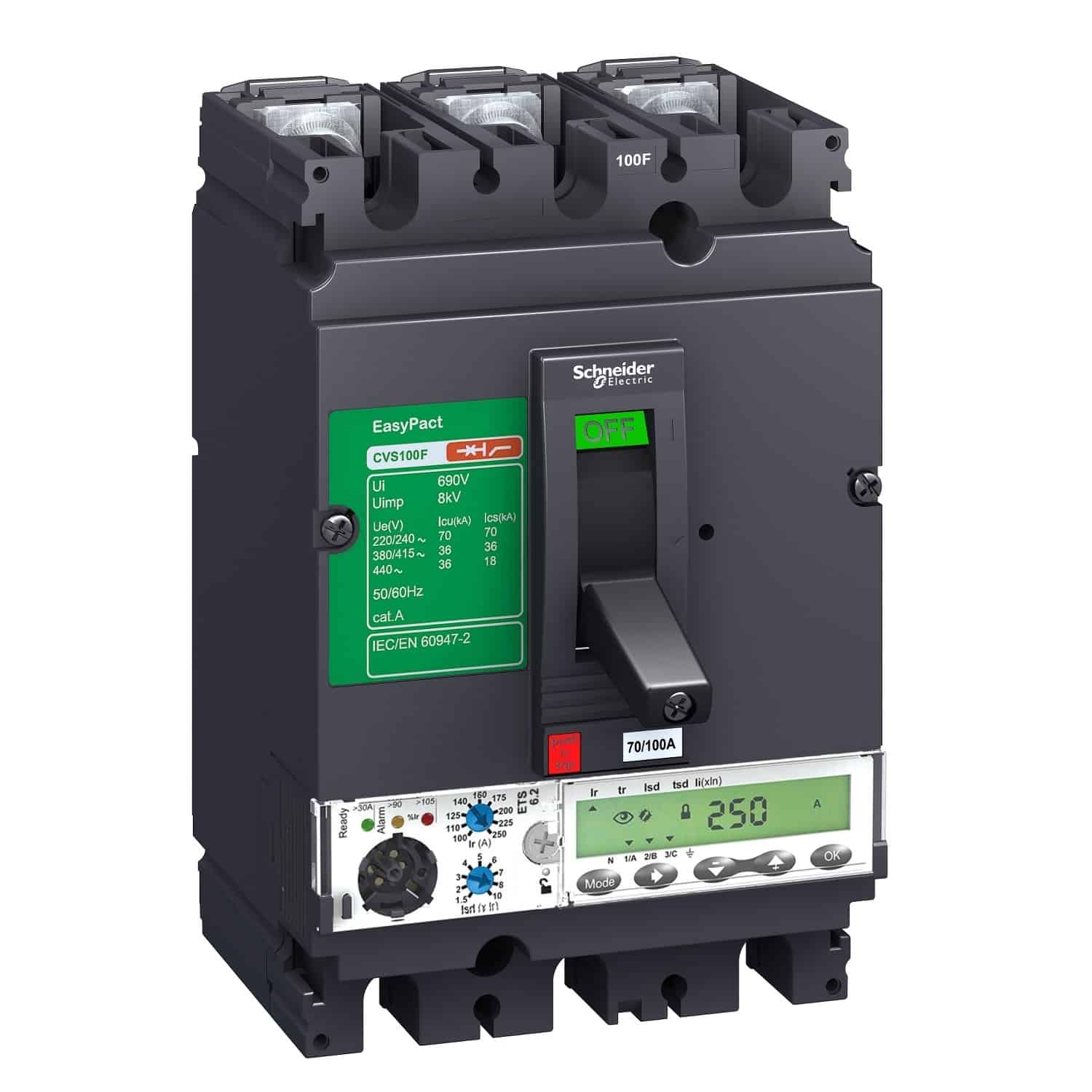

LV510649 | Easypact CVS – CVS100N 6.2 100A Circuit Breaker – 3P

Product Overview

The Easypact CVS – CVS100N 6.2 100A Circuit Breaker by Schneider Electric is a high-performance, compact, and reliable solution for electrical distribution systems. Designed for commercial and industrial applications, this circuit breaker ensures optimal protection against overloads and short circuits.

Key Features

• Model: CVS100N 6.2
• Rated Current: 100A
• Number of Poles: 3P (3 Poles)
• Breaking Capacity: 6.2 kA at 415V AC
• Voltage Rating: 415V AC
• Frequency: 50/60 Hz
• Mounting: DIN Rail Mounting
• Standards Compliance: IEC 60947-2, IEC 60898-1
• Terminal Type: Screw Clamp
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Mechanical Life: 20,000 cycles
• Electrical Life: 10,000 cycles
• Protection Features: Overload and Short Circuit Protection
• Environmental Compliance: RoHS Compliant

Applications

The Easypact CVS100N 6.2 100A Circuit Breaker is ideal for use in:

• Commercial Buildings
• Industrial Facilities
• Electrical Distribution Panels
• Motor Control Centers
• Power Distribution Systems

Benefits

• Compact design for space-saving installation
• High breaking capacity for reliable protection
• Easy installation with DIN rail mounting
• Compliance with international standards for safety and performance
• Durable construction for long service life

Dimensions and Weight

• Width: 54 mm
• Height: 78 mm
• Depth: 70 mm
• Weight: 0.5 kg

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.

Disclaimer

Product specifications are subject to change without prior notice. Always refer to the manufacturer’s datasheet for the most accurate and up-to-date information.
