LAEN20 | EasyPact TVS – auxiliary contact block – 2 NO – screw-clamps terminals – Schneider Electric

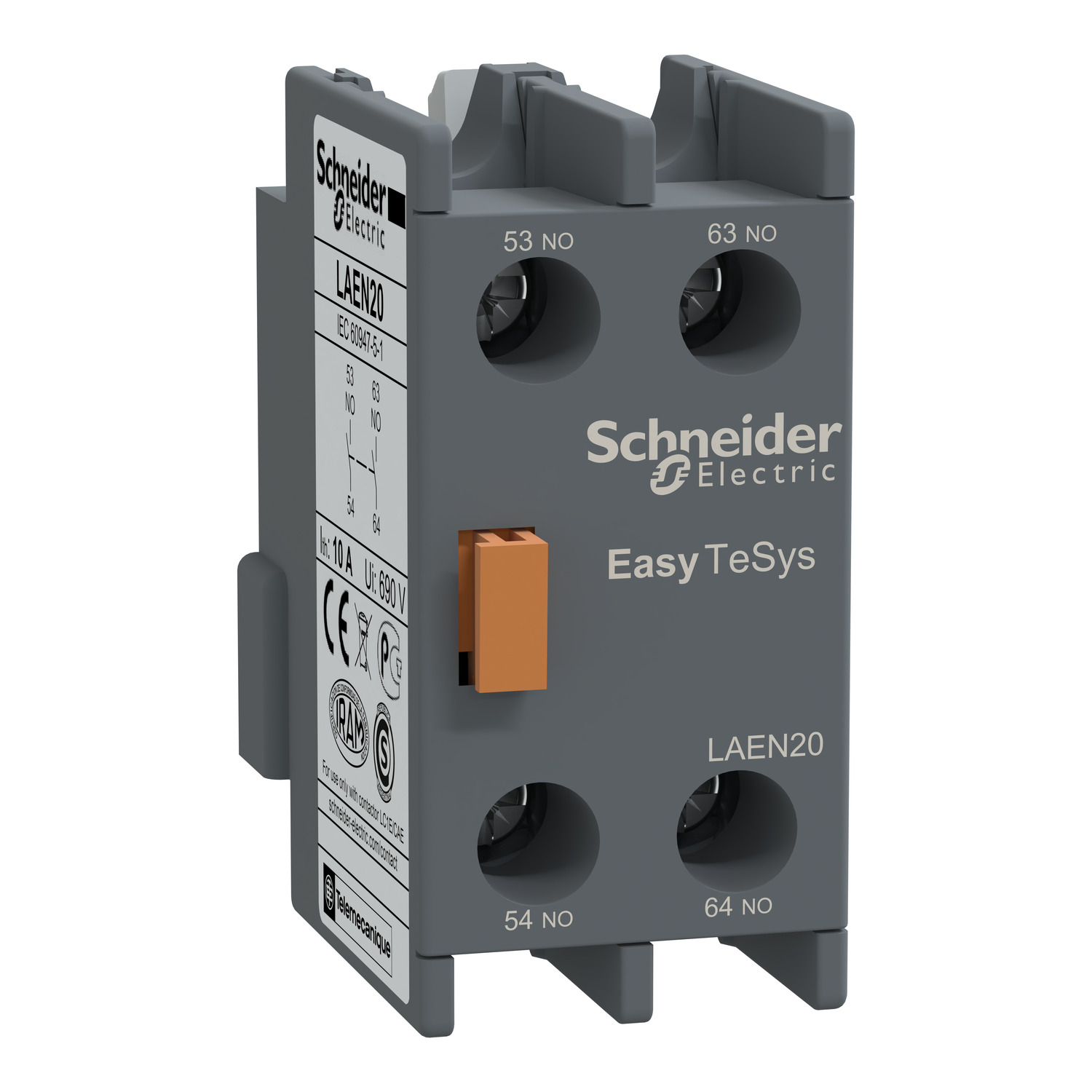

Name: Schneider Electric LAEN20 Auxiliary Contact Block, 2 NO
Brand: Schneider Electric
SKU: LAEN20
Price: 302.40 INR
Availability: InStock

SKU: LAEN20

Original price was: ₹720.00.Current price is: ₹302.40. Excl. GST

In stock

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

LC1E2510M7 Easy TeSys contactor 3P 3 NO AC-3 lc1e2510m7 image 1500x1500

-60%

LC1E2510M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 25A - 220 V AC coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1E2510M7

-57%

LC1E0910M5 | 3P CONTACTOR EasyPact TVS 1NO 4KW 400V – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1E0910M5

-57%

LC1E1810M5 | 3P Contactor Easypact Tvs 1No 7,5Kw – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1E1810M5

LC1E0910M7 Easy TeSys contactor 3P 3 NO AC-3 lc1e0910m7 image 1500x1500

-60%

LC1E0910M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 9A - 220 V AC coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1E0910M7

LC1E1810M7 Easy TeSys contactor 3P 3 NO AC-3 lc1e1810m7 image 1500x1500

-60%

LC1E1810M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 18A - 220 V AC coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1E1810M7

Sourced through authorised channels, the Schneider Electric LAEN20 circuit breaker accessory from the Easy TeSys range delivers dependable performance for reliable circuit protection and isolation. Key ratings include <= 690 V, IP20. myelectric.in stocks the LAEN20 | EasyPact TVS - auxiliary contact block - 2 NO - screw-clamps terminals for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LAEN20
Category	Circuit Breaker Accessory
Main
Range	Easy TeSys
Range of product	Easy TeSys Control
Product or component type	Auxiliary contact block
Device application	Signalling
Device short name	LAEN
Mounting location	Front
Auxiliary contacts operation	Instantaneous
Complementary
Range compatibility	EasyPact EasyPact TVS LC1E
Pole contact composition	2 NO
[Ui] rated insulation voltage	690 V – for control circuit conforming to IEC 60947-5-1
[Ue] rated operational voltage	<= 690 V
[Ith] conventional free air thermal current	8 A (at 60 °C)
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current	100 A – 1 s 120 A – 500 ms 140 A – 100 ms
Protection type	GG fuse 10 A
Mechanical durability	10 Mcycles
Minimum switching current	5 mA
minimum switching voltage	17 V
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact 1.5 ms on de-energisation no overlap between NC and NO contact
Insulation resistance	> 10 MOhm
Connections – terminals	Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end
Product weight	0.035 kg
Colour	Grey (RAL 7011)
Environment
Standards	EN/IEC 60947-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ
Product certifications	CB Scheme CCC CE EAC
IP degree of protection	IP20 conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for operation	-5…55 °C
Ambient air temperature for storage	-60…80 °C
Operating altitude	3000 m without derating
Environmental characteristic	Standard environment
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3 cm
Package 1 Width	7.4 cm
Package 1 Length	13 cm
Package 1 Weight	50 g
Unit Type of Package 2	S02
Number of Units in Package 2	100
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	3.8 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Auxiliary contact block (OF type) — 2 NO (Normally Open) contacts mirror the main contact position; wired to PLC for run/trip feedback, indicator lamps, or interlocking with upstream devices.
2 NO (Normally Open) contact arrangement — extends the switching capacity of the parent device for PLC feedback, interlocking, or additional signalling circuits.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LC1E0910M5LC1E0910M7LC1E2510M7LC1E1810M5LC1E1810M7

❓ Frequently Asked Questions

Q: What does the 2 NO (Normally Open) contact configuration on the LAEN20 mean?

A: These contacts change state when the device is operated or energised. Size the contact for the actual switched load — pilot duty ratings are typically lower than the main contact rating.
