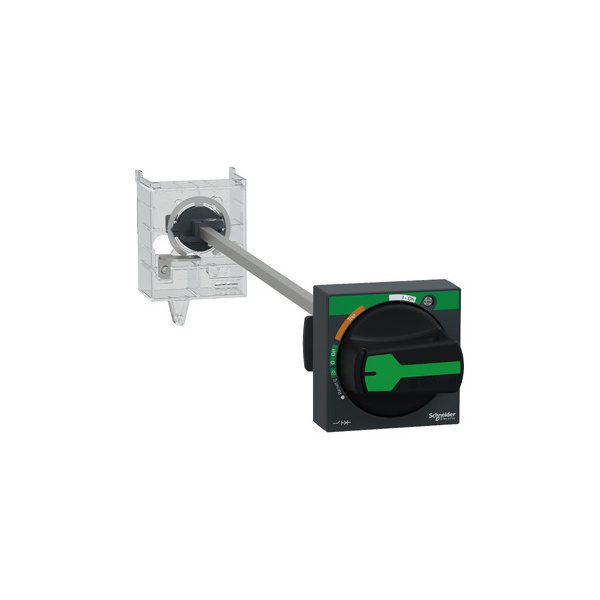

GV3APN01 | Extended rotary handle kit,TeSys GV3, IP54, black handle, with trip indication, for GV3L-GV3P – Schneider Electric

Name: GV3APN01 Rotary Handle Kit for TeSys GV3 Circuit Breakers
Brand: Schneider Electric
SKU: GV3APN01
Price: 3876.75 INR
Availability: InStock

SKU: GV3APN01

Original price was: ₹8,615.00.Current price is: ₹3,876.75. Excl. GST

In stock

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

GV2V03 | PADLOCKING DEVICE FOR GV2 GV3 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: GV2V03

The Schneider Electric GV3APN01 is a motor protection circuit breaker (mpcb) from the TeSys range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include IP54. Buy the GV3APN01 | Extended rotary handle kit,TeSys GV3, IP54, black handle, with trip indication, for GV3L-GV3P online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	GV3APN01
Category	Motor Protection Circuit Breaker (MPCB)
Main
Range	TeSys
Device short name	GV3AP
Product or component type	Rotary handle kit
Accessory / separate part category	Control accessory
Handle colour	Black
Handle front plate colour	Grey
Complementary
Product compatibility	GV3P GV3L
Rotary handle padlocking	Padlock in ON position Padlock in OFF position
Rotary handle mounting style	Extended
Locking options description	1 to 3 padlocks
Position indicator	Trip position
Back/door distance	189…300 mm
Product weight	0.3 kg
Environment
Product certifications	CULus
IP degree of protection	IP54
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.500 cm
Package 1 Width	9.000 cm
Package 1 Length	37.000 cm
Package 1 Weight	353.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.887 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

TeSys GV3 series — higher current range for larger motors; same direct-mounting compatibility with TeSys D and F contactors.
Combined thermal and magnetic protection in one device — single MPCB replaces a separate motor-rated MCB plus thermal overload relay, saving DIN rail space and inter-device wiring.
Phase-loss and phase-unbalance detection — trips within seconds of a phase failure, protecting the motor from the severe overheating that single-phasing causes within minutes.
Manual reset only — operator must acknowledge and reset the MPCB after a trip, preventing automatic restart that could damage the motor or driven machinery.
Manufactured to IEC 60947-4-1 and IEC 60947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

GV2V03

❓ Frequently Asked Questions

Q: What environments is the IP54 rating on the GV3APN01 suitable for?

A: IP54 means the enclosure is dust-protected (limited ingress) (first digit: 5) and protected against water splash from all directions (second digit: 4). This makes the GV3APN01 suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.

Q: Can the GV3APN01 replace a contactor + overload relay combination in a motor circuit?

A: The GV3APN01 provides motor short-circuit protection and overload protection in one device — but it cannot make/break motor current under normal operational switching (that is the contactor’s role). For motor starters requiring on/off switching, the GV3APN01 is used as the upstream protection device with a contactor for switching. Some MPCB series include a direct handle for manual starting of small motors without a separate contactor.

Q: What is the trip class of the GV3APN01 and what motor starting time does it allow?

A: MPCBs are typically rated Class 10 (trips in ≤10 seconds at 7.2× setting current), suitable for normal motors with DOL starting times up to 10 seconds. Heavy-duty motors (large fans, centrifuges, compressors) with longer starting times may need Class 20 or Class 30 protection — check the starting time against the motor’s speed-torque curve and select accordingly.

Q: Which Schneider Electric accessories are compatible with the GV3APN01?

A: The Schneider Electric GV3APN01 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the GV3APN01.

Q: What is the difference between a Motor Protection Circuit Breaker (MPCB) and a standard MCB — and why use the GV3APN01?

A: A standard MCB protects against overload and short-circuit only. A Motor Protection Circuit Breaker (MPCB) adds adjustable thermal overload matched to motor FLC, Class 10/20 trip curves for motor starting inrush, and phase-loss sensitivity — making it the correct device for motor branch circuits where a standard MCB would either nuisance-trip on motor starting or fail to protect adequately against slow overloads. Choose the GV3APN01 when the application specifically requires motor protection circuit breaker (mpcb) characteristics.
