A9L40600 | iPRD40 modular surge arrester – 3P + N – 350V – Schneider Electric

Name: Schneider Electric iPRD40 Modular Surge Arrester 350V 3P+N | A9L40600
Brand: Schneider Electric
SKU: A9L40600
Price: 22429.12 INR
Availability: InStock

SKU: A9L40600

Original price was: ₹36,176.00.Current price is: ₹22,429.12. Excl. GST

In stock

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-27%

A9L00002 | CARTRIDGE C NEUTRAL FOR IPRD SURGE ARRES – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9L00002

-27%

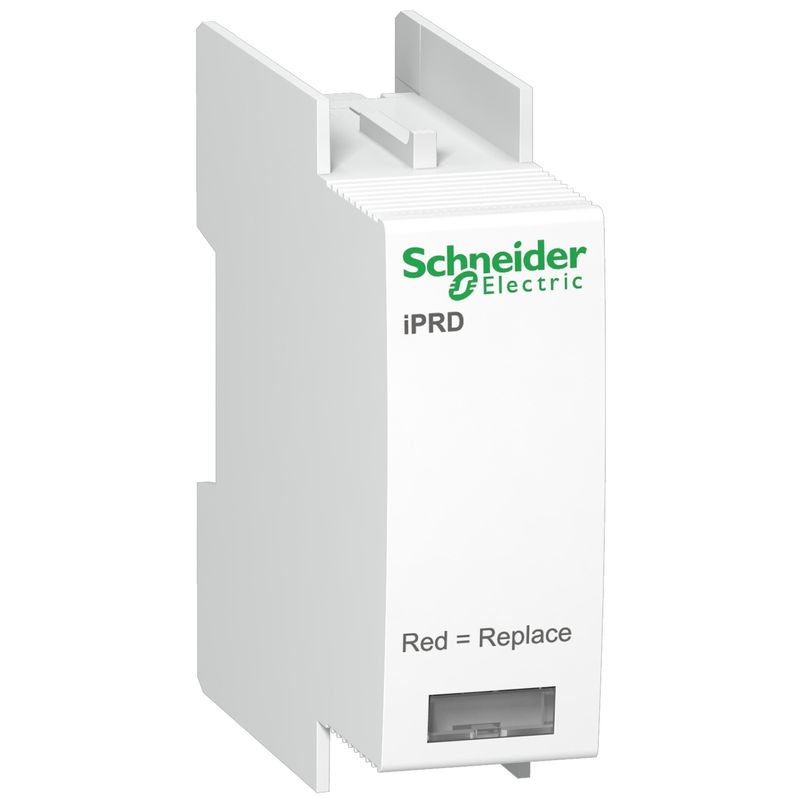

A9L40102 | CARTRIDGE C 40 350 FOR IPRD SURGE ARREST – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9L40102

The Schneider Electric A9L40600 is a surge protection device (spd) from the IPRD range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 230/400 V AC, 3P + N, IK03. Buy the A9L40600 | iPRD40 modular surge arrester – 3P + N – 350V online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9L40600
Category	Surge Protection Device (SPD)
Main
Range of product	IPRD
range of product	Acti9
Product name	Acti9 iPRD
Product or component type	Surge arrester with pluggable cartridge
Device short name	iPRD40
Device application	Distribution
Standards	EN 61643-11:2012 IEC 61643-11:2011
Product certifications	CE
Quality labels	KEMA-KEUR NF
Poles description	3P + N
Remote signalling	Without
Surge arrester type	Electrical distribution network
Earthing system	TT TN-S
Complementary
Surge arrester class type	Type 2
Surge arrester technology	MOV + GDT
[Ue] rated operational voltage	230/400 V AC (+/- 10 %) at 50/60 Hz
Nominal discharge current	Common mode: 15 kA (L/PE) Common mode: 15 kA (N/PE) Differential mode: 15 kA (L/N)
Maximum discharge current	Common mode: 40 kA L/PE Common mode: 40 kA N/PE Differential mode: 40 kA L/N
[Uc] maximum continuous operating voltage	Common mode: 260 V N/PE Common mode: 350 V L/PE Differential mode: 350 V L/N
Maximum [Up] voltage protection level	Common mode <1.4 kV type 2 N/PE Differential mode <1.4 kV type 2 L/N
[Ut] temporary overvoltage	337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode 442 V L/PE 5 s withstand 1453 V L/PE 200 ms safe failure mode
Disconnector device type	Associated circuit breaker iC60H 40 A curve C – Icu 15 kA Associated circuit breaker IC60N 40 A curve C – Icu 10 kA Associated circuit breaker NG125H 40 A curve C – Icu 36 kA Associated circuit breaker NG125L 40 A curve C – Icu 50 kA Associated circuit breaker NG125N 40 A curve C – Icu 25 kA Associated fuse gG 63 A – Icu 15 kA Associated fuse gG 80 A – Icu 50 kA
Mounting mode	Clip-on (DIN rail)
9 mm pitches	8
Height	85 mm
Width	72 mm
Depth	69 mm
Product weight	0.414 kg
Colour	White (RAL 9003)
[Ipe] Ground residual current	0.003 mA 0.6 mA
Connections – terminals	Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm²
Tightening torque	2.5 N.m
Compatibility code	IPRD40
Environment
IK degree of protection	IK03 conforming to IEC 62262
Relative humidity	5…95 %
Operating altitude	2000 m
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.000 cm
Package 1 Width	8.000 cm
Package 1 Length	9.000 cm
Package 1 Weight	442.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	3
Package 2 Height	9.000 cm
Package 2 Width	10.000 cm
Package 2 Length	28.000 cm
Package 2 Weight	1.393 kg
Unit Type of Package 3	S03
Number of Units in Package 3	27
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	13.068 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

350V AC maximum continuous operating voltage (Uc) — remains permanently connected to the live supply; clamping only activates during overvoltage events.
MOV (Metal Oxide Varistor) clamping technology — responds in nanoseconds (< 25ns) to clamp transient overvoltages before they reach connected sensitive electronics.
Visual end-of-life indicator — green flag (healthy) turns red when the MOV has absorbed its rated energy and must be replaced; ensures protection level is always verified.
35mm DIN rail mounting — installs inside the main distribution board at the point of entry; protects the entire downstream installation in a single device.
Manufactured to IEC 61643-11 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
