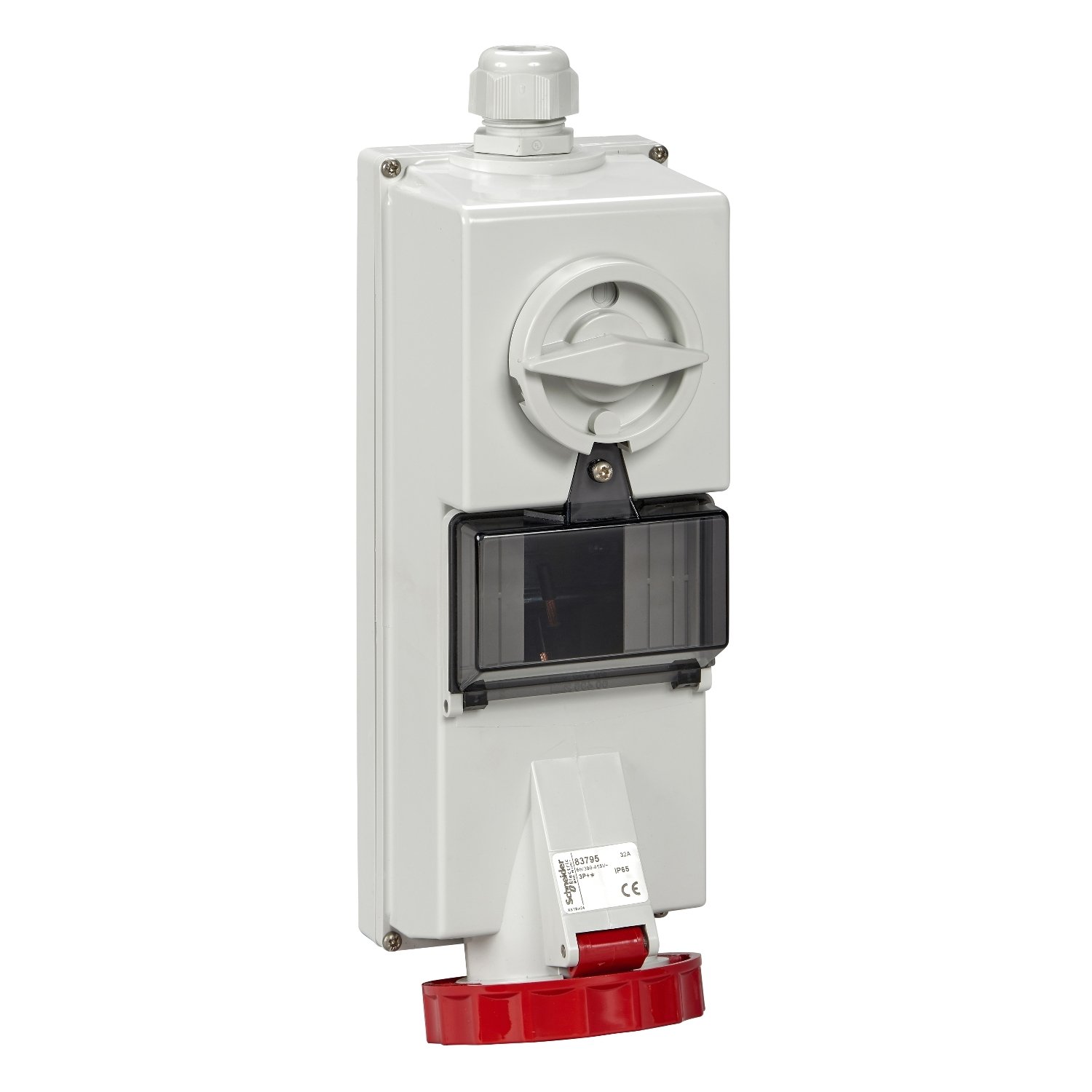

83796 | Isoblock interlocked socket – 32 A – 3P + N + E – 380…415 V AC – IP65 – wall – Schneider Electric

Name: Schneider Electric Isoblock Socket 32A 3P+N+E IP65 Wall Mount | 83796
Brand: Schneider Electric
SKU: 83796
Price: 10161.80 INR
Availability: InStock

SKU: 83796

Original price was: ₹18,476.00.Current price is: ₹10,161.80. Excl. GST

In stock

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-46%

PKX32M735 | Wander plug PK PratiKa connect 32A IP67 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: PKX32M735

-48%

PKE32M735 | PratiKa wander plug – straight – 32 A – 3P + N + E – 380…415 V AC – IP67 – Schneider Electric

Plug

Schneider Electric

Excl. GST

Add to basket

SKU: PKE32M735

Looking for the Isoblock interlocked socket – 32 A – 3P + N + E – 380…415 V AC – IP65 – wall? This genuine Schneider Electric industrial plug & socket (iec 60309) from the Mureva range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 32 A, 380…415 V, 3P + N + E. Order part number 83796 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	83796
Category	Industrial Plug & Socket (IEC 60309)
Main
Range	Mureva
Product or component type	Interlocked socket
Device short name	Isoblock socket
Plug, socket category	Low voltage
Industrial socket type	B16
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial
Complementary
Mounting mode	Wall-mounted
[In] rated current	32 A
[Ue] rated operational voltage	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Protection type	Without protection
Product compatibility	Modular device
Total number of 18 mm modules	4.5
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Pins: stainless steel Springs: stainless steel
Connections – terminals	Captive screws
Maximum cable cross section	10 mm²
Maximum cable outer diameter	25 mm
cable entry	Cable gland
Thread type	Pg 21
Product weight	1.1 kg
Base dimension	144 x 330 mm
Height	330 mm
Width	106 mm
Depth	111 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Environment
Standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK10 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.000 cm
Package 1 Width	31.000 cm
Package 1 Length	11.000 cm
Package 1 Weight	1.052 kg
Unit Type of Package 2	S03
Number of Units in Package 2	4
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.608 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

32 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
IP65 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

PKE32M735PKX32M735

❓ Frequently Asked Questions

Q: What is the significance of the 32 A rating on the 83796?

A: The 32 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What environments is the IP65 rating on the 83796 suitable for?

A: IP65 means the enclosure is dust-tight (complete protection) (first digit: 6) and protected against water protection (second digit: 5). This makes the 83796 suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.

Q: The 83796 has a 5 Pin (3P+N+E) — 3 Phase + Neutral + Earth configuration — can it be used with a standard 3-pin socket?

A: No. The 5 Pin (3P+N+E) — 3 Phase + Neutral + Earth configuration on the 83796 is an IEC 60309 industrial standard and physically incompatible with domestic 3-pin or 5-pin BS 1363/IS 1293 sockets. This is intentional — the colour coding and keyway system prevents accidental connection to the wrong voltage. This 5-pin format requires a matching 5-pin IEC 60309 socket (Red body = 380–415V, 3-phase).

Q: How do I identify the correct 83796 socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
