13181 | Kaedra – for power outlet – 6 openings – 1 x 12 modules – Schneider Electric

Name: Schneider Kaedra Power Outlet 6 Openings 1x12 Modules IS/IEC Certified | myelectric.in
Brand: Schneider Electric
SKU: 13181
Price: 11913.00 INR
Availability: OutOfStock

SKU: 13181

₹11,913.00 Excl. GST

Out of stock

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-46%

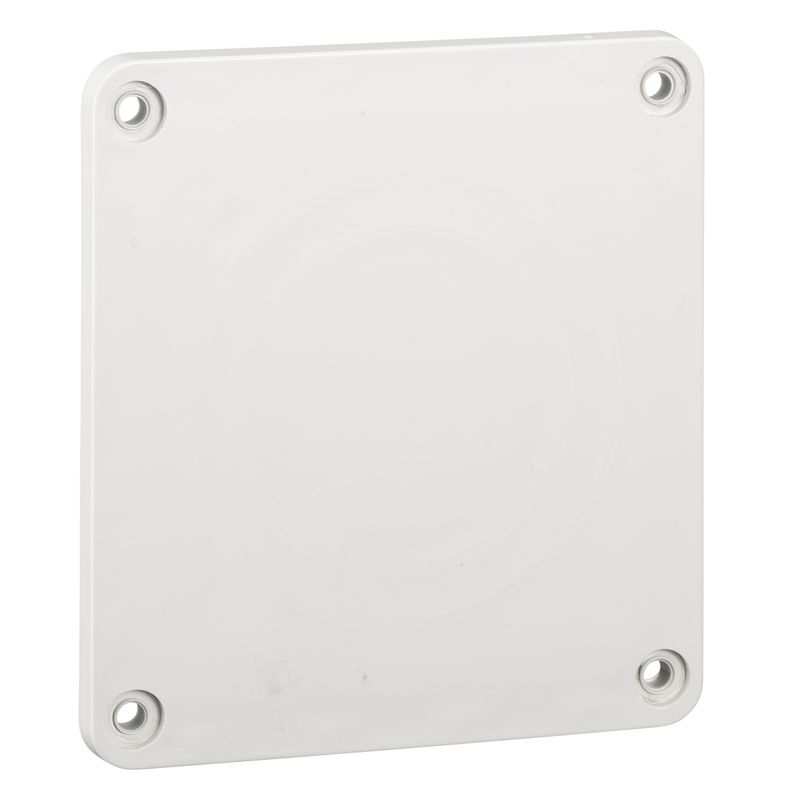

13137 | enclos. access. 90×100 plate 65×65&75×75 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 13137

-46%

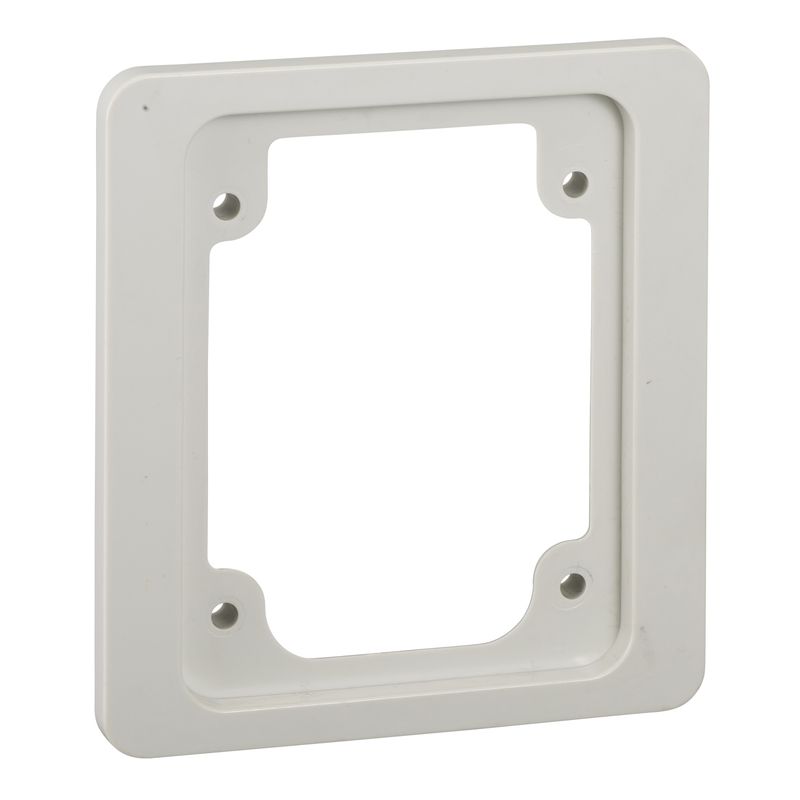

13136 | enclos. access 90×100 plate 65×85 outlet – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 13136

-46%

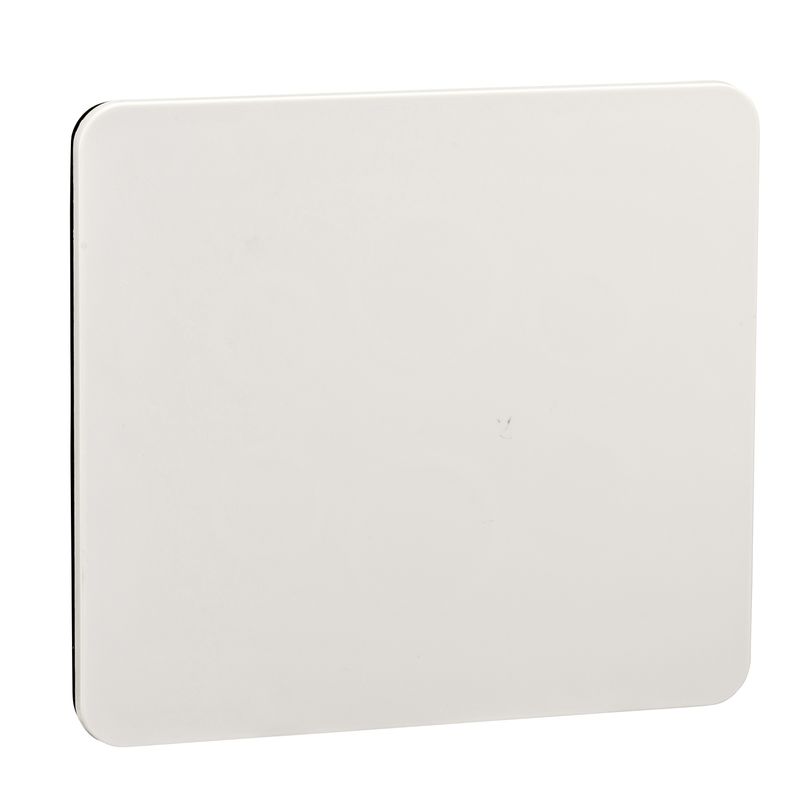

13138 | enclos. access. 90×100 plate 3×22 diam – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 13138

-46%

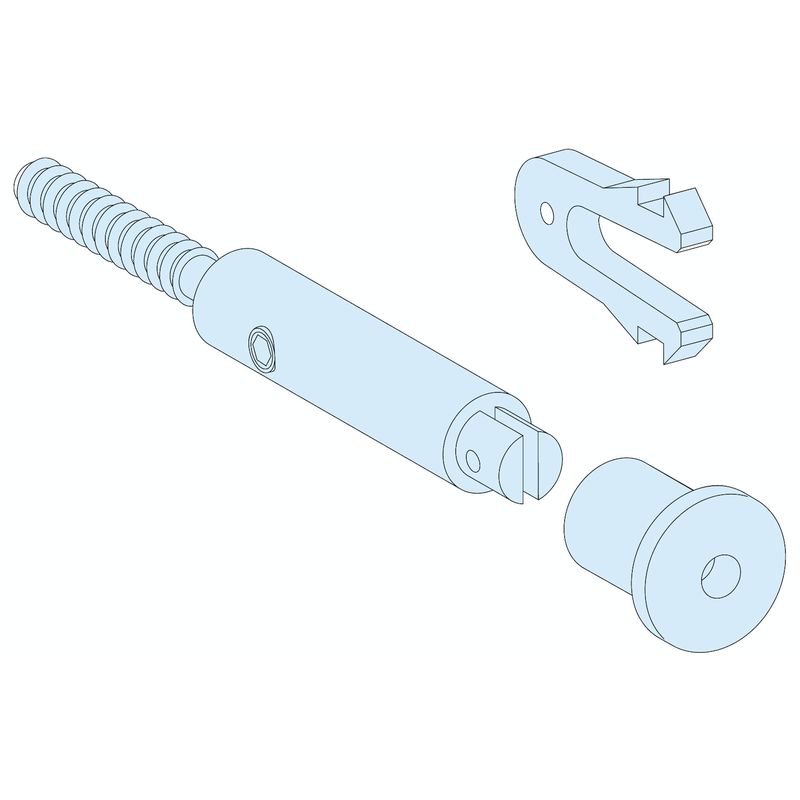

13947 | KIT DE PLOMBAGE – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 13947

Looking for the Kaedra – for power outlet – 6 openings – 1 x 12 modules? This genuine Schneider Electric modular enclosure from the Mureva range is built for safe and organised power distribution, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 63 A, IP65. Order part number 13181 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	13181
Category	Modular Enclosure
Main
Range	Mureva
Product name	Mureva Enclosure
Product or component type	Weatherproof enclosure
enclosure type	Enclosure for power outlet
Mounting plate description	Without mounting plate
Complementary
Enclosure mounting	Surface
9 mm pitches	24
Number of 18 mm modules per row	12
Total number of 18 mm modules	12
Number of horizontal rows	1
Electrical insulation class	Class II Double insulation
Number of openings of interface	6
Number of plates	2 for push-button controls 6 for 65 x 85 power outlets
Provided equipment	2 wiring strap 6 plate for 65 x 85 power outlet 2 plate for push-button control
Type of front cover	Transparent
Power dissipation in W	28 W
[In] rated current	63 A
Type of rail	DIN
Number of pre-cutouts PG ISO	17
Locking options description	Optional keylock
Enclosure material	Housing: self-extinguishing polymer
Product weight	2.5 kg
Base dimension	90 x 100 mm
Width	340 mm
Height	460 mm
Depth	160 mm
Internal depth	91 mm
Colour	Door: transparent green Enclosure: light grey (RAL 7035)
Environment
Standards	IEC 60670-1 IEC 60670-24 EN 62262 EN 50262 IEC 60695-2-1
Fire resistance	650 °C conforming to IEC 60695-2-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 50102
Environmental characteristics (UV)	UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage category	II
Ambient air temperature for operation	-25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	16.8 cm
Package 1 Width	36.0 cm
Package 1 Length	47.0 cm
Package 1 Weight	2.848 kg
Unit Type of Package 2	P12
Number of Units in Package 2	28
Package 2 Height	80.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	91.744 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

1 × 12 modules — accommodates this number of standard 17.5mm DIN rail modules (MCBs, RCCBs, RCBOs) plus busbars and neutral terminal blocks.
35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Accepts Schneider Acti9, Domae, and iC60 DIN rail devices
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

13947131361313713940131381313513934

❓ Frequently Asked Questions

Q: How many single-pole MCBs can be installed in the 13181 with 1 × 12 modules?

A: With 1 × 12 modules available, the 13181 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
