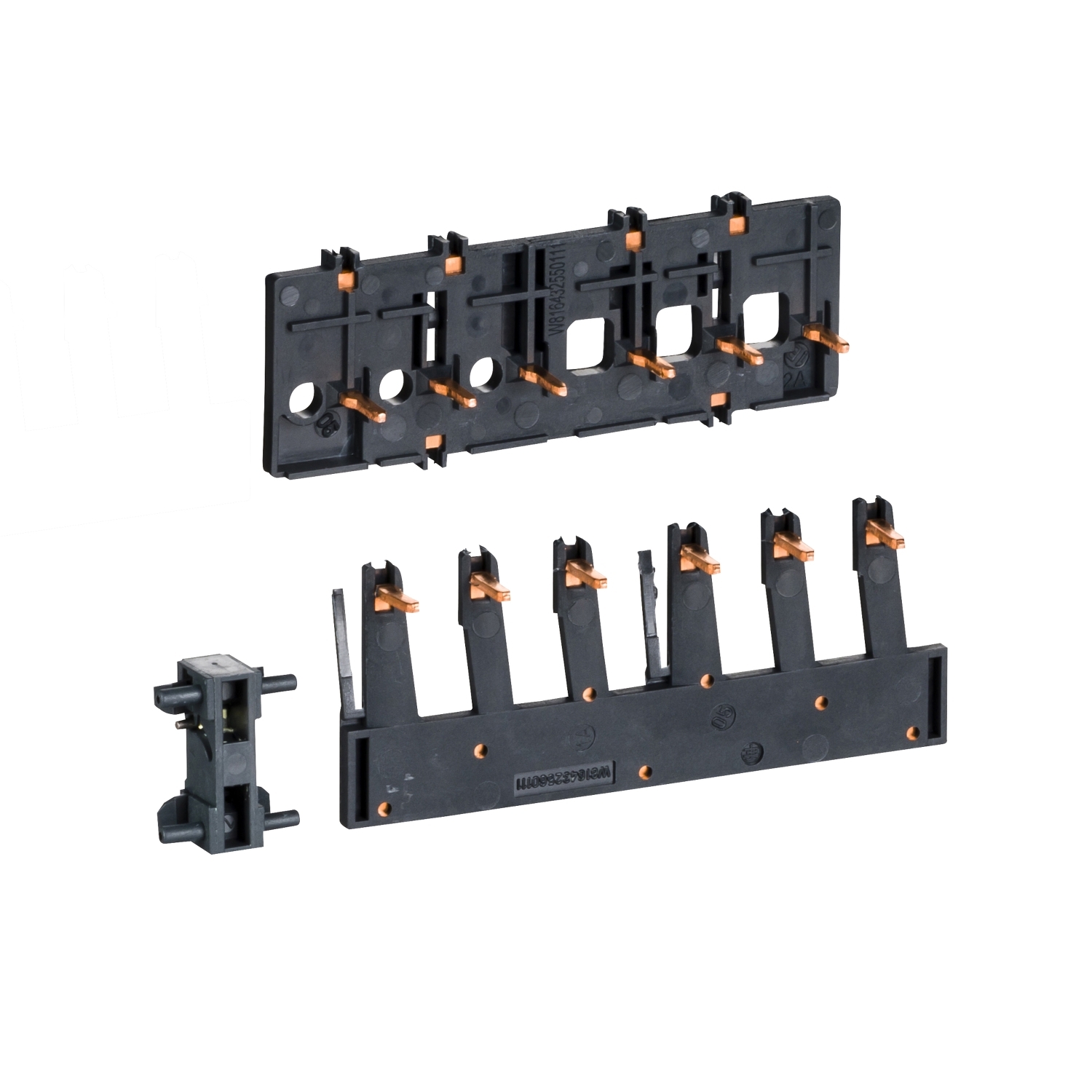

LAD9R1 | Kit for Assembling 3P Reversing Contactors

Product Overview

The LAD9R1 is a comprehensive kit designed for assembling 3P (3-Pole) reversing contactors. It includes the LC1D09-D38 contactor with screw clamp terminals, ensuring secure and reliable connections. This kit is ideal for applications requiring motor reversing, such as in conveyor systems, cranes, and hoists.

Key Features

• Contactor Model: LC1D09-D38
• Terminal Type: Screw clamp terminals for secure wiring
• Number of Poles: 3P (3-Pole)
• Electrical Interlock: Without electrical interlock
• Rated Operational Current (Ie): 9 A at 400 V AC-3
• Rated Operational Power: 4 kW at 400 V AC-3
• Coil Voltage: Available in various voltages (check specifications for details)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations at rated current
• Mounting: DIN rail mounting for easy installation
• Compliance: Meets international standards for safety and performance

Applications

The LAD9R1 kit is suitable for a wide range of industrial applications, including:

• Motor reversing in conveyor systems
• Cranes and hoists
• Pumping systems
• Machinery requiring bidirectional motor control

Technical Specifications

Package Contents

• 1 x LC1D09-D38 Contactor
• 1 x Set of screw clamp terminals
• 1 x Mounting kit for DIN rail
• 1 x User manual

Safety and Compliance

The LAD9R1 kit complies with international safety standards, ensuring reliable and safe operation in various industrial environments. It is designed to meet the requirements of IEC/EN 60947-4-1, UL 508, and CSA C22.2 No. 14.

Warranty

Schneider Electric offers a standard warranty on the LAD9R1 kit. Please refer to the warranty terms and conditions provided with the product or contact Schneider Electric support for more details.
