A9HMS330 | Metal P&S Unit, Acti 9, 30 A, 3P+E, 3 Mod, single door – Schneider Electric

Name: Schneider Electric A9HMS330 Buy Online
Brand: Schneider Electric
SKU: A9HMS330
Price: 3152.76 INR
Availability: BackOrder

SKU: A9HMS330

Original price was: ₹8,084.00.Current price is: ₹3,152.76. Excl. GST

Dispatch By : 2 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

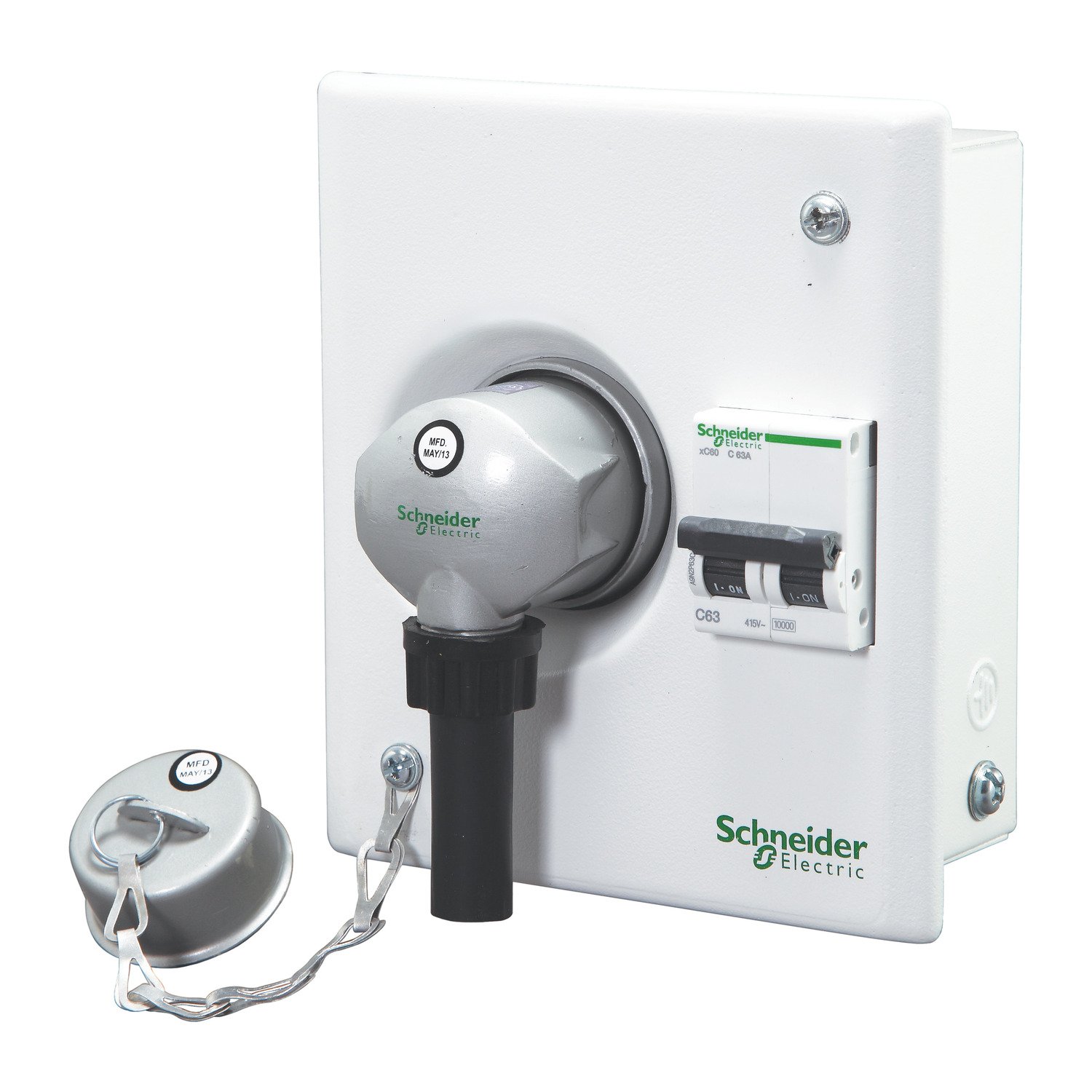

The Schneider Electric A9HMS330 is a plug & socket unit / enclosure from the Acti9 range, engineered for safe and organised power distribution in demanding Indian and international installations. Key ratings include 30 A, 3P + E, IP30. Buy the A9HMS330 | Metal P&S Unit, Acti 9, 30 A, 3P+E, 3 Mod, single door online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9HMS330
Category	Plug & Socket Unit / Enclosure
Main
Range	Acti9
Product name	Metal Clad P&S Units
Product or component type	Consumer unit
Device application	Power socket distribution
Colour	White (RAL 9003)
Provided equipment	Electra plug and socket
Complementary
Enclosure mounting	Surface Flush
[In] rated current	30 A
Poles description	3P + E
Total number of 18 mm modules	3
Enclosure/cubicle description	Single door enclosure
Enclosure material	Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Height	External: 305 mm
Width	External: 150 mm
Depth	External : 67 mm
Environment
IP degree of protection	IP30
IK degree of protection	IK08
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	CPRI ERDA
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.4 cm
Package 1 Width	16.8 cm
Package 1 Length	32.2 cm
Package 1 Weight	2.02 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 30 A rating on the A9HMS330?

A: The 30 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: The A9HMS330 has a 4 Pin (3P+E) — 3 Phase + Earth (no neutral) configuration — can it be used with a standard 3-pin socket?

A: No. The 4 Pin (3P+E) — 3 Phase + Earth (no neutral) configuration on the A9HMS330 is an IEC 60309 industrial standard and physically incompatible with domestic 3-pin or 5-pin BS 1363/IS 1293 sockets. This is intentional — the colour coding and keyway system prevents accidental connection to the wrong voltage. Match the plug to a correctly rated IEC 60309 socket of the same pin count, current rating, and IP rating.

Q: How do I identify the correct A9HMS330 socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
