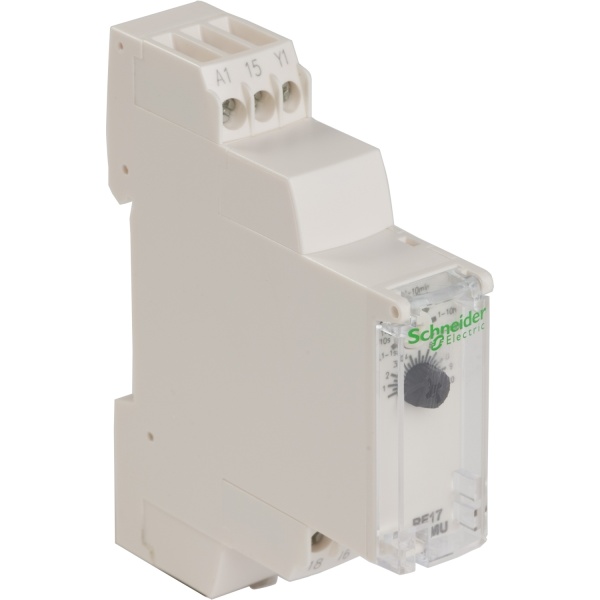

RE17RAMU – Modular Timing Relay

Manufacturer: Schneider Electric

Product Type: Modular Timing Relay

Current Rating: 8 A

Contact Configuration: 1 CO (Changeover)

Time Range: 1 second to 100 hours

Function: On Delay

Voltage Range: 24…240 V AC

Key Features:

• Modular Design: Easy to install and integrate into existing systems.
• Wide Voltage Range: Operates efficiently from 24 V AC up to 240 V AC.
• High Current Rating: Capable of handling up to 8 A, suitable for various applications.
• Versatile Timing: Adjustable timing range from 1 second to 100 hours.
• On Delay Function: Delays the activation of the output after the input signal is received.
• Reliable Performance: Designed for consistent and reliable operation in industrial environments.
• Compact Size: Space-saving design for efficient use in control panels.

Applications:

This modular timing relay is ideal for use in a variety of industrial and commercial applications, including:

• Motor control
• Lighting control
• HVAC systems
• Automation systems
• Process control

Technical Specifications:

Warranty:

This product comes with a standard manufacturer warranty of 2 years.
