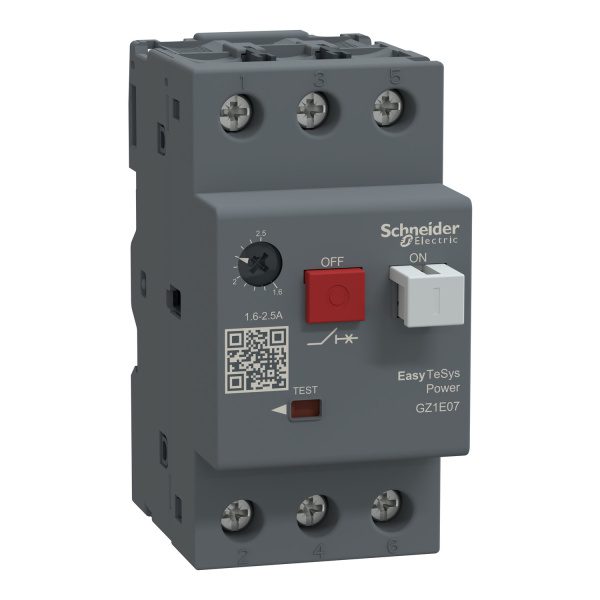

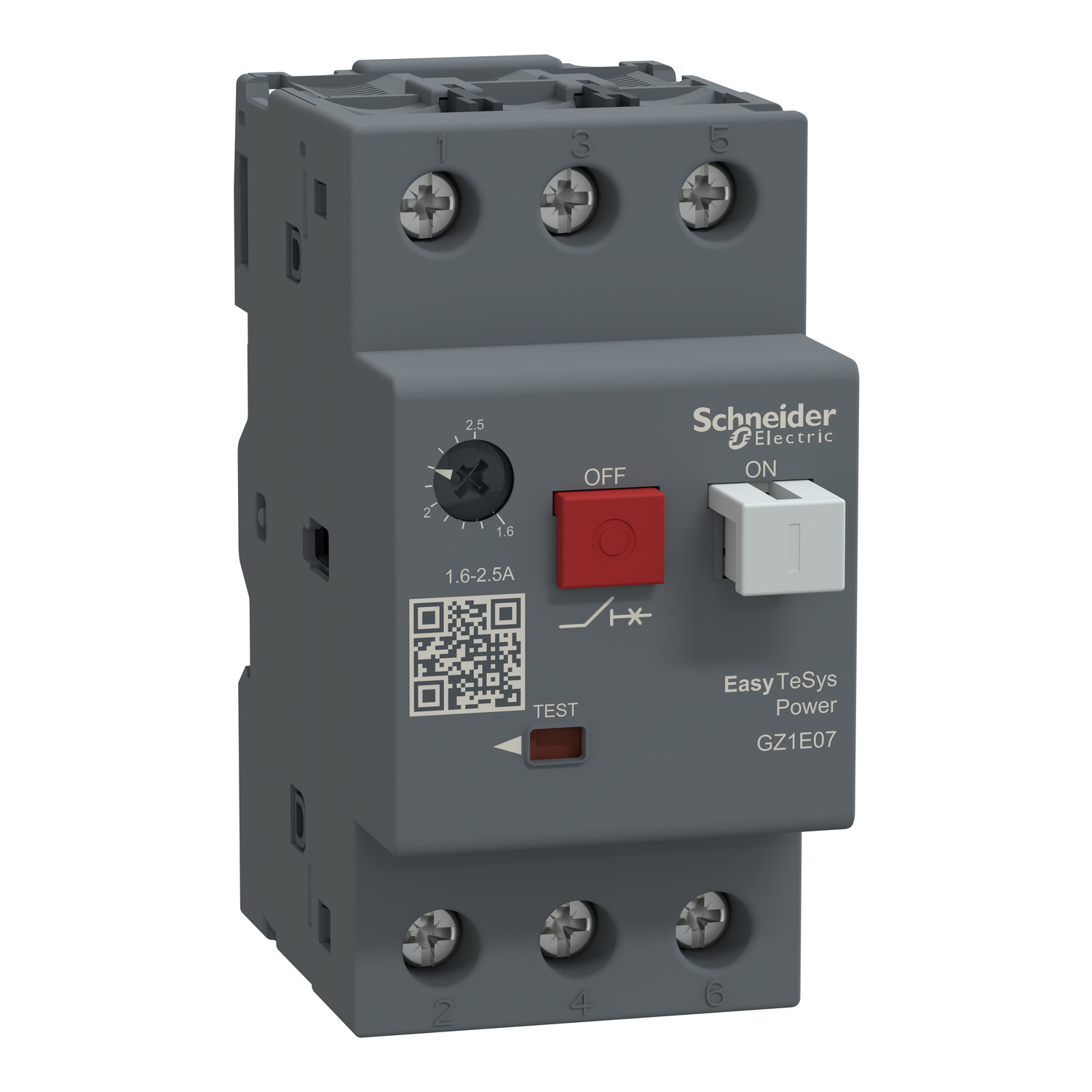

GZ1E07 Motor Circuit Breaker – Schneider Electric
Product Overview
The GZ1E07 is a 3-pole motor circuit breaker from Schneider Electric’s GZ1 series. It is designed to provide reliable protection for motors and circuits with a thermal-magnetic trip unit. This breaker is suitable for a wide range of industrial applications, ensuring safety and efficiency.
Key Features
- Model: GZ1E07
- Number of Poles: 3
- Rated Current: 1.6A to 2.5A
- Trip Unit: Thermomagnetic
- Breaking Capacity: High breaking capacity for reliable protection
- Mounting: DIN rail mounting for easy installation
- Compliance: Meets international standards for safety and performance
- Applications: Ideal for motor protection in industrial and commercial settings
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | Up to 690V AC |
| Rated Frequency | 50/60 Hz |
| Thermal Trip Range | 1.6A to 2.5A |
| Magnetic Trip Range | 10x In (adjustable) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Applications
The GZ1E07 motor circuit breaker is suitable for protecting motors and circuits in various applications, including:
- Industrial machinery
- HVAC systems
- Pumps and compressors
- Conveyor systems
- Commercial electrical systems
Benefits
- Reliable motor protection against overloads and short circuits
- Compact design for space-saving installation
- Easy to install and maintain
- Durable construction for long-lasting performance
Contact Information
For more information or to place an order, please contact Schneider Electric or your local distributor.
