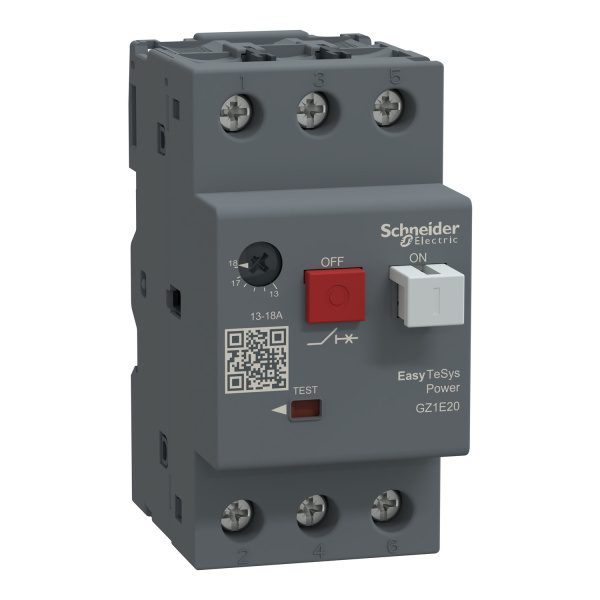

GZ1E20 Motor Circuit Breaker – Schneider Electric
Product Overview
The GZ1E20 is a 3-pole motor circuit breaker from Schneider Electric’s GZ1 series. It is designed to provide reliable protection for motors and circuits with a thermal-magnetic trip unit. This breaker is suitable for applications requiring a current range of 13A to 18A.
Key Features
- Type: Motor Circuit Breaker
- Series: GZ1
- Number of Poles: 3
- Trip Unit Type: Thermomagnetic
- Current Rating: 13A to 18A
- Breaking Capacity: High breaking capacity for reliable protection
- Mounting: DIN rail mounting for easy installation
- Standards Compliance: Complies with international standards for safety and performance
- Applications: Ideal for motor protection in industrial and commercial settings
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current (In) | 13A to 18A |
| Rated Voltage (Ue) | 690V AC |
| Rated Insulation Voltage (Ui) | 800V AC |
| Rated Frequency | 50/60 Hz |
| Breaking Capacity (Icu) | 100 kA at 415V AC |
| Mounting Type | DIN Rail |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Applications
The GZ1E20 motor circuit breaker is suitable for a wide range of applications, including:
- Motor protection in industrial machinery
- Protection of HVAC systems
- Commercial building electrical systems
- Pump and compressor protection
Benefits
- Reliable motor protection with thermomagnetic trip unit
- Compact design for space-saving installation
- Easy to install and maintain
- High breaking capacity ensures safety and reliability
Disclaimer
Specifications and features are subject to change without prior notice. Always refer to the official Schneider Electric documentation for the most accurate and up-to-date information.
