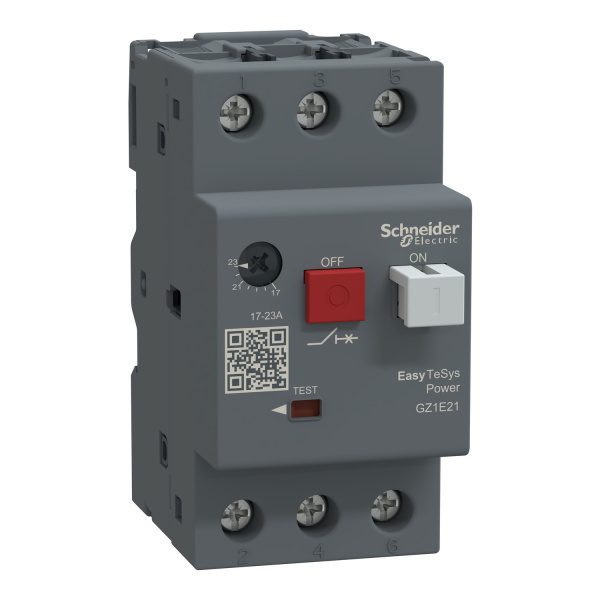

GZ1E21 Motor Circuit Breaker – Schneider Electric
Product Overview
The GZ1E21 is a 3-pole motor circuit breaker from Schneider Electric’s GZ1 series. It is designed to protect motors and circuits from overloads and short circuits. With a thermomagnetic trip unit, it ensures reliable and precise protection for your electrical systems.
Key Features
- Model: GZ1E21
- Type: Motor Circuit Breaker
- Number of Poles: 3
- Current Rating: 17A to 23A
- Trip Unit: Thermomagnetic
- Protection: Overload and Short Circuit
- Brand: Schneider Electric
- Series: GZ1
- Mounting: DIN Rail Mountable
- Compliance: Meets international standards for safety and performance
Detailed Specifications
| Parameter | Value |
|---|---|
| Rated Current (In) | 17A to 23A |
| Rated Voltage (Ue) | 690V AC |
| Rated Insulation Voltage (Ui) | 800V AC |
| Breaking Capacity (Icu) | 100kA at 415V AC |
| Mechanical Life | 20,000 cycles |
| Electrical Life | 10,000 cycles |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Applications
The GZ1E21 motor circuit breaker is ideal for use in industrial and commercial applications, including:
- Motor protection in manufacturing plants
- Control panels and distribution boards
- HVAC systems
- Pump and compressor systems
Benefits
- Reliable protection against overloads and short circuits
- Compact design for space-saving installation
- Easy to install and maintain
- High breaking capacity for enhanced safety
- Durable construction for long-lasting performance
Ordering Information
For ordering or further inquiries, please contact your local Schneider Electric distributor or visit the official website.
