GZ1E22 Motor Circuit Breaker – Schneider Electric

Product Overview

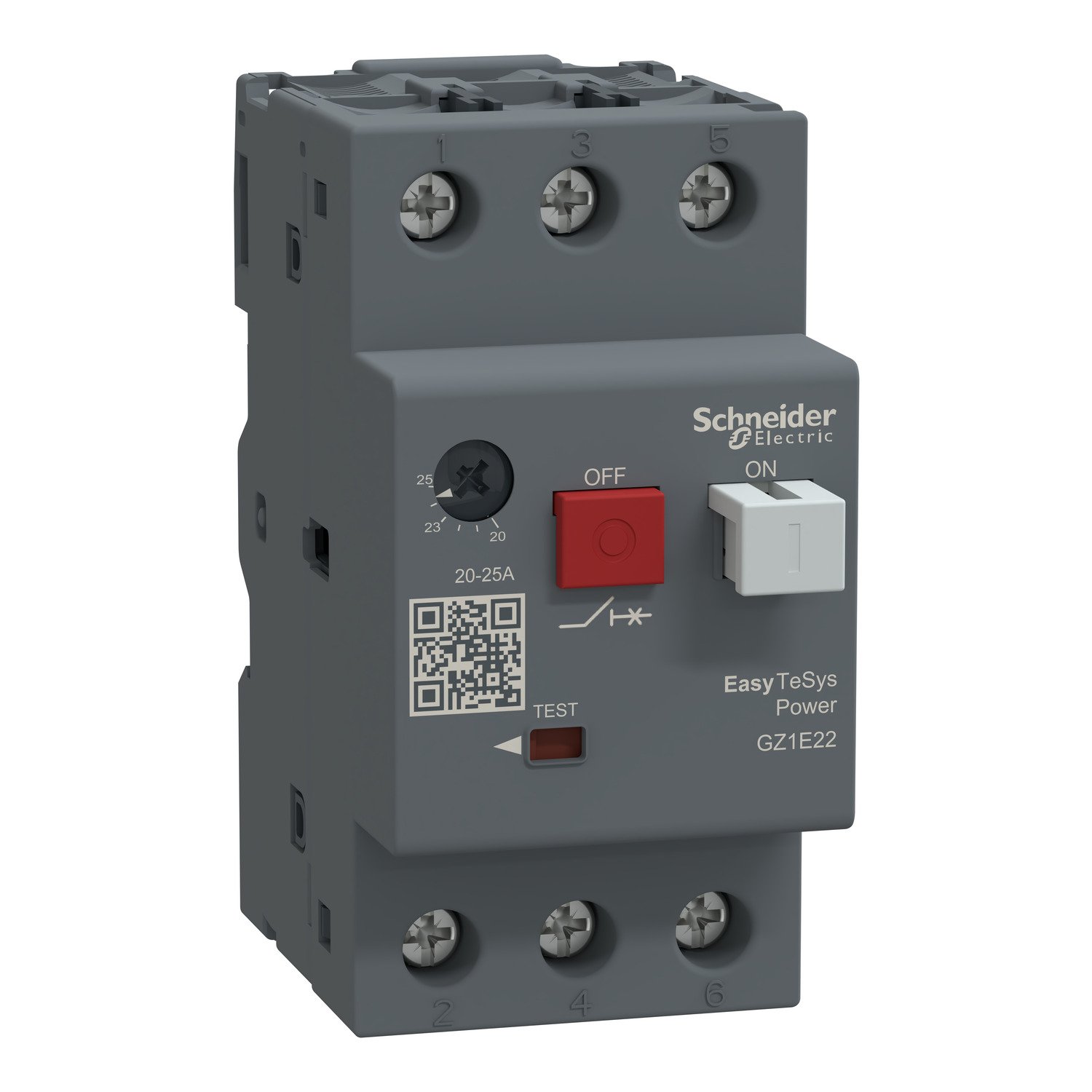

The GZ1E22 is a 3-pole motor circuit breaker from Schneider Electric’s GZ1 series. It is designed to provide reliable protection for motors and circuits with a thermal-magnetic trip unit. This breaker is suitable for applications requiring a current range of 20A to 25A.

Key Features

• Model: GZ1E22
• Type: Motor Circuit Breaker
• Number of Poles: 3 poles
• Current Rating: 20A to 25A
• Trip Unit: Thermomagnetic
• Protection: Overload and short-circuit protection
• Mounting: DIN rail mountable
• Standards Compliance: IEC/EN 60947-2, IEC/EN 60947-4-1
• Terminal Type: Screw terminals
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Mechanical Life: 20,000 cycles
• Electrical Life: 10,000 cycles
• IP Rating: IP20 (when installed in an enclosure)

Applications

The GZ1E22 motor circuit breaker is ideal for use in industrial and commercial applications where motor protection is required. It is commonly used in:

• Motor control centers
• Industrial machinery
• HVAC systems
• Pumps and compressors
• Conveyor systems

Technical Specifications

Safety and Compliance

The GZ1E22 motor circuit breaker complies with international standards, ensuring safety and reliability in various applications. It is designed to meet the requirements of IEC/EN 60947-2 and IEC/EN 60947-4-1.

Warranty

Schneider Electric offers a standard warranty period for the GZ1E22 motor circuit breaker. Please refer to the manufacturer’s warranty policy for detailed information.

Additional Resources

For more information, including installation guides, datasheets, and technical support, visit the official Schneider Electric website or contact your local Schneider Electric representative.
