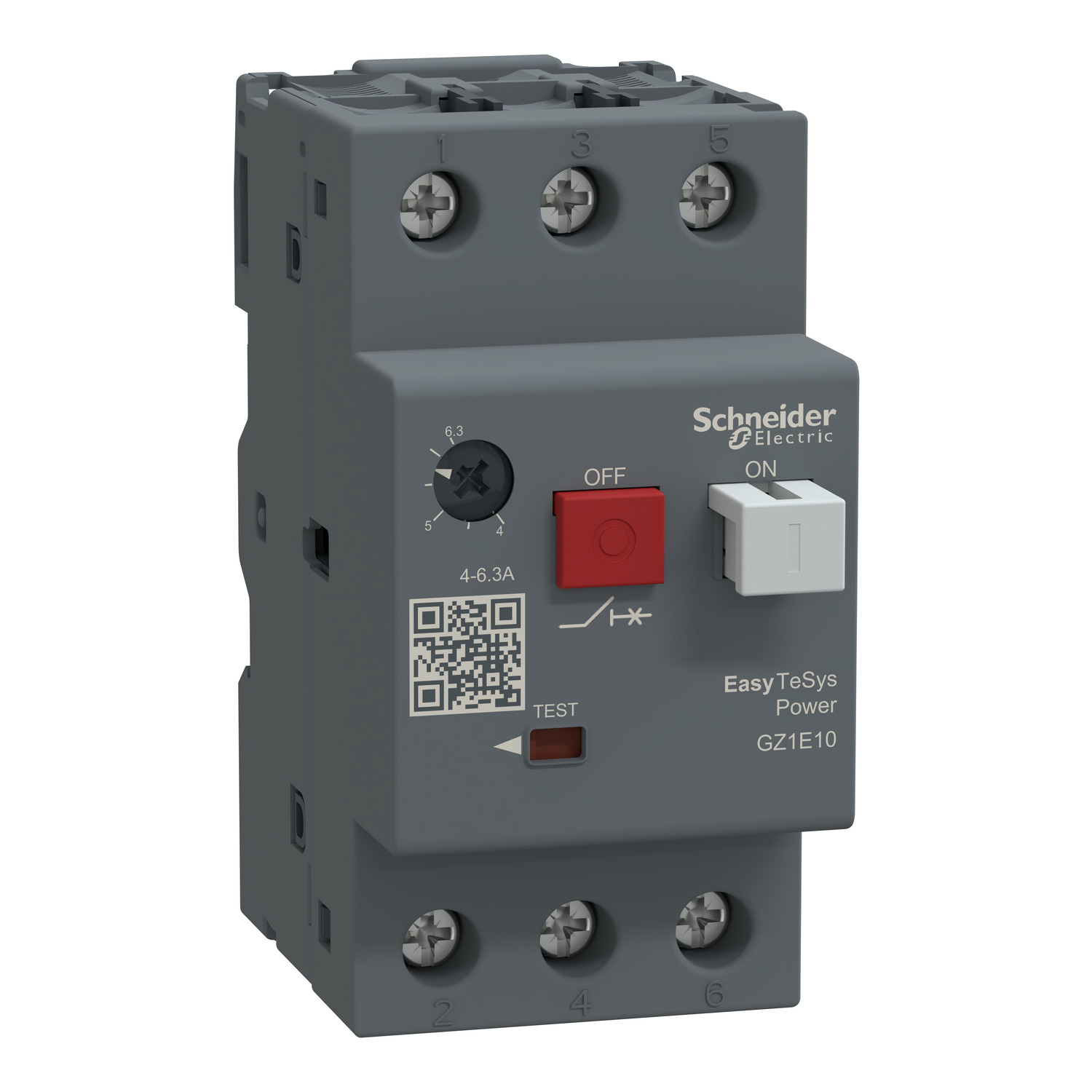

GZ1E10 Motor Circuit Breaker – Schneider Electric
Product Overview
The GZ1E10 is a 3-pole motor circuit breaker from Schneider Electric’s GZ1 series. It is designed to provide reliable protection for motors and circuits with a thermal-magnetic trip unit. This breaker is suitable for a wide range of industrial applications, ensuring safety and efficiency in motor operations.
Key Features
- Model: GZ1E10
- Number of Poles: 3
- Rated Current: 4..6.3A
- Trip Unit Type: Thermomagnetic
- Breaking Capacity: High breaking capacity for reliable protection
- Mounting: DIN rail mounting for easy installation
- Compliance: Meets international standards for safety and performance
- Application: Suitable for motor protection in industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 690V AC |
| Rated Frequency | 50/60 Hz |
| Rated Insulation Voltage | 800V AC |
| Rated Operational Current (Ie) | 4..6.3A |
| Thermal Trip Range | 0.7 to 1.0 x In |
| Magnetic Trip Range | 7 to 10 x In |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | 10,000 cycles |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Applications
The GZ1E10 motor circuit breaker is ideal for protecting motors in various industrial applications, including:
- Conveyor systems
- Pumps and compressors
- Fans and blowers
- Machine tools
- HVAC systems
Benefits
- Provides reliable protection against overloads and short circuits
- Compact design for space-saving installation
- Easy to install and maintain
- High durability and long service life
- Complies with international safety standards
Contact Information
For more information or to place an order, please contact Schneider Electric or your local distributor.
