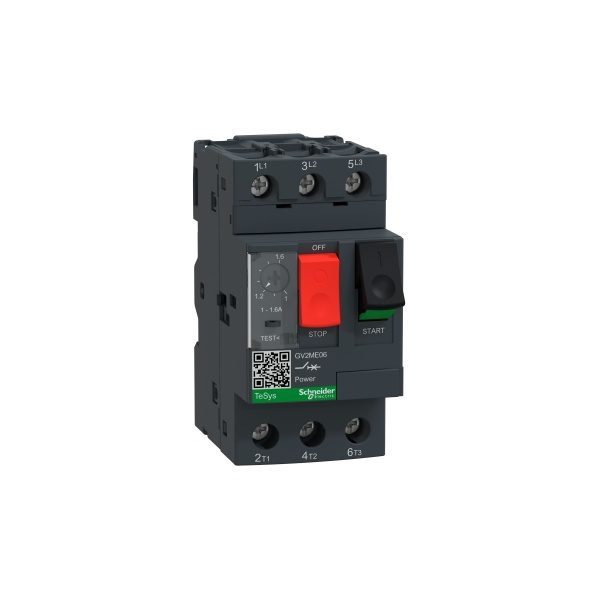

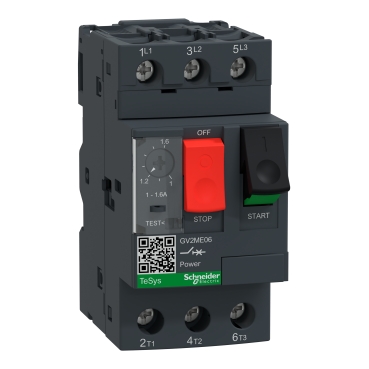

GV2ME06 Motor Circuit Breaker – Schneider Electric
Product Overview
The GV2ME06 is a motor circuit breaker from the TeSys GV2 series by Schneider Electric. It is designed to provide reliable protection for motors and circuits in industrial applications. This 3-pole breaker features a thermal magnetic trip mechanism and screw clamp terminals for secure connections.
Key Features
- Series: TeSys GV2
- Poles: 3P (3-Pole)
- Current Rating: 1-1.6 A
- Trip Mechanism: Thermal Magnetic
- Terminal Type: Screw Clamp
- Protection: Motor and circuit protection against overloads and short circuits
- Mounting: DIN Rail Mounting
- Compliance: Meets international standards for safety and performance
- Application: Suitable for industrial and commercial motor control applications
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current (Ie) | 1-1.6 A |
| Rated Voltage (Ue) | 690 V AC |
| Breaking Capacity | 100 kA at 415 V AC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Applications
The GV2ME06 motor circuit breaker is ideal for use in various industrial and commercial applications, including:
- Motor protection in machinery and equipment
- Control panels and distribution boards
- HVAC systems
- Pumps and compressors
- Conveyor systems
Benefits
- Reliable motor and circuit protection
- Easy installation with DIN rail mounting
- Secure connections with screw clamp terminals
- Compact design for space-saving installation
- Compliance with international safety standards
Warranty and Support
Schneider Electric offers a standard warranty on the GV2ME06 motor circuit breaker. For technical support and warranty claims, contact Schneider Electric’s customer service or visit their official website.
