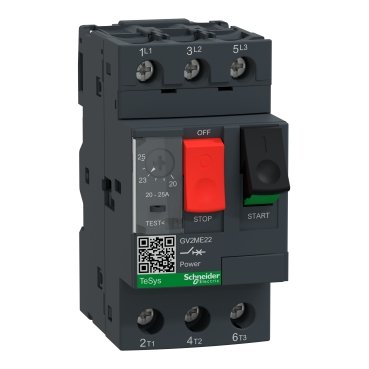

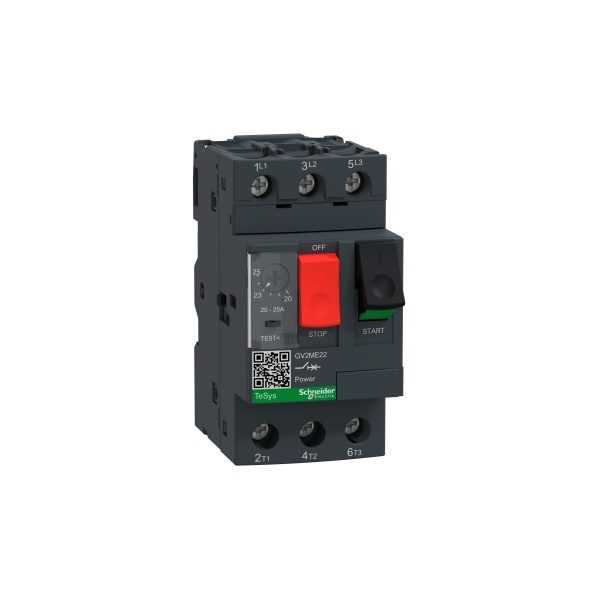

GV2ME22 | Motor Circuit Breaker, TeSys GV2, 3P, 20-25 A, Thermal Magnetic, Screw Clamp Terminals – Schneider Electric
Overview
The GV2ME22 is a motor circuit breaker from the TeSys GV2 series by Schneider Electric. It is designed to provide reliable protection for motors and circuits against overloads and short circuits. This 3-pole breaker is suitable for a wide range of industrial applications, ensuring safety and efficiency in motor control systems.
Key Features
- Type: Motor Circuit Breaker
- Series: TeSys GV2
- Number of Poles: 3P (3 Poles)
- Current Rating: 20-25 A
- Tripping Mechanism: Thermal Magnetic
- Terminal Type: Screw Clamp Terminals
- Protection: Overload and Short Circuit Protection
- Mounting: DIN Rail Mounting
- Compliance: Meets international standards for safety and performance
Detailed Features
- Thermal Magnetic Tripping: Combines thermal and magnetic tripping mechanisms to provide reliable protection against both overloads and short circuits.
- Adjustable Current Setting: Allows for precise adjustment of the current setting to match the specific requirements of the motor or circuit.
- Screw Clamp Terminals: Ensures secure and reliable connections, reducing the risk of loose connections and potential failures.
- DIN Rail Mounting: Easy to install and remove, compatible with standard DIN rails for quick integration into control panels.
- Compact Design: Space-saving design makes it ideal for use in compact control panels and enclosures.
- High Breaking Capacity: Capable of interrupting high fault currents, ensuring safety in the event of a short circuit.
- Durable Construction: Built to withstand harsh industrial environments, ensuring long-term reliability and performance.
Applications
The GV2ME22 motor circuit breaker is suitable for a wide range of applications, including:
- Motor protection in industrial machinery
- Control and protection of HVAC systems
- Protection of pumps, fans, and compressors
- General-purpose motor control in manufacturing facilities
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current | 20-25 A |
| Rated Voltage | 690 V AC |
| Breaking Capacity | 100 kA at 415 V AC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.5 kg |
Warranty
This product comes with a standard manufacturer’s warranty of 2 years, covering defects in materials and workmanship under normal use.
