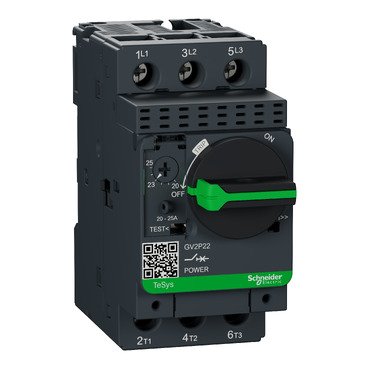

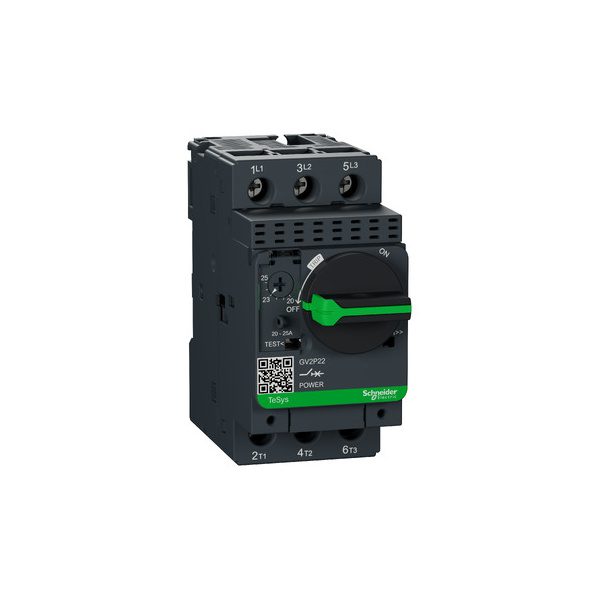

GV2P22 Motor Circuit Breaker – Schneider Electric
Product Overview
The GV2P22 is a motor circuit breaker from the TeSys GV2 range by Schneider Electric. It is designed to protect motors and circuits from overloads and short circuits. This 3-pole breaker is suitable for applications requiring reliable and efficient motor protection.
Key Features
- Type: Motor Circuit Breaker
- Range: TeSys GV2
- Number of Poles: 3P (3 Poles)
- Current Rating: 20-25 A
- Protection Type: Thermal Magnetic
- Terminal Type: Screw Clamp Terminals
- Mounting: DIN Rail Mounting
- Standards: Compliant with IEC/EN 60947-2, IEC/EN 60947-4-1
- Application: Motor Protection, Circuit Protection
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Mechanical Life: 20,000 cycles
- Electrical Life: 10,000 cycles
- Weight: Approximately 0.5 kg
Detailed Description
The GV2P22 motor circuit breaker is part of Schneider Electric’s TeSys GV2 series, known for its robust design and reliable performance. It offers thermal and magnetic protection, ensuring the safety of motors and circuits by disconnecting the power supply in case of overload or short circuit conditions.
With a current rating of 20-25 A, this breaker is ideal for medium-duty motor applications. The screw clamp terminals provide secure and easy connections, while the DIN rail mounting ensures quick and hassle-free installation.
This breaker is designed to operate efficiently in a wide range of temperatures, making it suitable for various industrial environments. Its compliance with international standards guarantees high-quality performance and safety.
Applications
- Motor protection in industrial machinery
- Circuit protection in control panels
- Overload and short-circuit protection in electrical systems
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current (In) | 20-25 A |
| Rated Voltage (Ue) | 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Frequency | 50/60 Hz |
| Breaking Capacity (Icu) | 100 kA at 415 V AC |
| Protection Class | IP20 |
Warranty
Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.
Contact Information
For more information or to place an order, visit the official Schneider Electric website or contact your local distributor.
