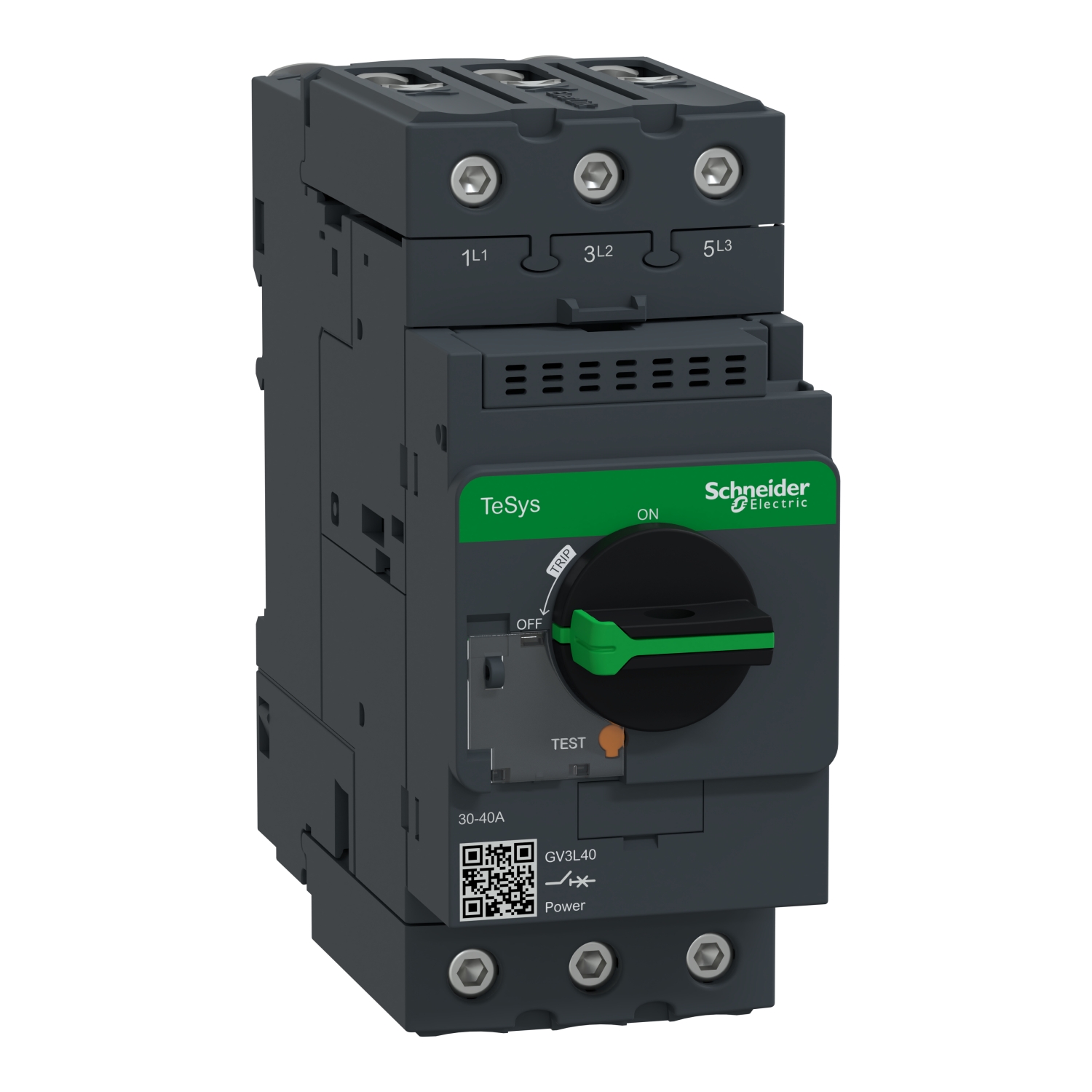

GV3L40 Motor Circuit Breaker – Schneider Electric
Product Overview
The GV3L40 is a motor circuit breaker from the TeSys GV3 range by Schneider Electric. It is designed to protect motors and circuits from overloads and short circuits. This 3-pole breaker is rated for 40 A and features a magnetic trip mechanism, rotary handle, and EverLink terminals for secure and reliable connections.
Key Features
- Type: Motor Circuit Breaker
- Range: TeSys GV3
- Number of Poles: 3P
- Rated Current: 40 A
- Trip Mechanism: Magnetic
- Handle Type: Rotary
- Terminals: EverLink (screw-clamp terminals for secure connections)
- Protection: Overload and short-circuit protection
- Mounting: DIN rail mounting
- Compliance: Meets international standards for safety and performance
Applications
The GV3L40 is ideal for use in industrial and commercial applications where reliable motor protection is required. It is commonly used in:
- Motor control centers
- Industrial machinery
- HVAC systems
- Pump and fan control
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current (In) | 40 A |
| Rated Voltage (Ue) | 690 V AC |
| Breaking Capacity (Icu) | 100 kA at 415 V AC |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 0.8 kg |
Advantages
- Robust design for harsh environments
- Easy installation and maintenance
- High breaking capacity for reliable protection
- EverLink terminals ensure vibration-resistant connections
Warranty and Support
Schneider Electric offers a standard warranty on the GV3L40 motor circuit breaker. For technical support or warranty claims, contact Schneider Electric customer service or an authorized service center.
