LV431541 motor mechanism, MT 250, Compact NSX250, PowerPact Multistandard J, 220 VAC to 240 VAC 50 60 Hz, 208 VAC to 277 VAC
Click to enlarge

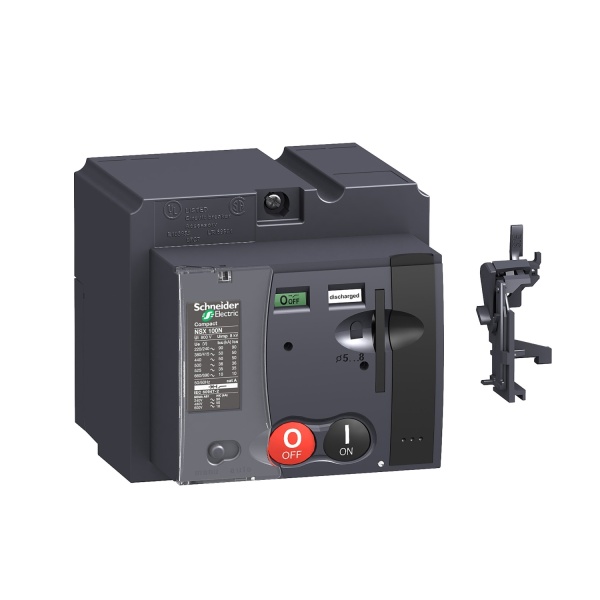

    LV431541 | motor mechanism, MT 250, Compact NSX250, PowerPact Multistandard J, 220 VAC to 240 VAC 50/60 Hz, 208 VAC to 277 VAC 60 Hz – Schneider Electric

    SKU: LV431541

    Original price was: ₹54,160.00.Current price is: ₹28,163.20. Excl. GST

    Dispatch By : 2 Weeks

    Dispatch By : 2 Weeks

    13 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
    -50%

    C25N3TM250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 3 poles, TMD trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹63,470.00.Current price is: ₹31,735.00. Excl. GST
    Add to basket
    SKU: C25N3TM250
    C25N32D250 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, MicroLogic 2.2 trip unit 250A Schneider Electric c25w32d25
    -50%

    C25F32D250 | Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 3 poles, MicroLogic 2.2 trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹70,630.00.Current price is: ₹35,315.00. Excl. GST
    Add to basket
    SKU: C25F32D250
    C25N32D250 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, MicroLogic 2.2 trip unit 250A Schneider Electric c25w32d25
    -50%

    C25B32D250 | Circuit breaker, ComPacT NSX250B, 25kA/415VAC, 3 poles, MicroLogic 2.2 trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹67,450.00.Current price is: ₹33,725.00. Excl. GST
    Add to basket
    SKU: C25B32D250
    C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
    -52%

    C25N3TM200 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 3 poles, TMD trip unit 200A – Schneider Electric

    Schneider Electric
    Original price was: ₹62,280.00.Current price is: ₹29,894.40. Excl. GST
    Add to basket
    SKU: C25N3TM200
    C25N6TM250 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 4 poles 3D neutral not protected , TMD trip unit 250A Schneider Ele
    -52%

    C25F6TM200 | Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 200A – Schneider Electric

    Schneider Electric
    Original price was: ₹71,210.00.Current price is: ₹34,180.80. Excl. GST
    Add to basket
    SKU: C25F6TM200
    C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
    -50%

    C25B3TM250 | Circuit breaker, ComPacT NSX250B, 25kA/415VAC, 3 poles, TMD trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹58,150.00.Current price is: ₹29,075.00. Excl. GST
    Add to basket
    SKU: C25B3TM250
    C25N32D250 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, MicroLogic 2.2 trip unit 250A Schneider Electric c25w32d25
    -52%

    C25N32D250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 3 poles, MicroLogic 2.2 trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹80,680.00.Current price is: ₹38,726.40. Excl. GST
    Add to basket
    SKU: C25N32D250
    C25H32D250 NSX250H 70kA AC 3P3D 250A 2.2 Schneider Electric c25h32d250
    -52%

    C25H32D250 | NSX250H 70kA AC 3P3D 250A 2.2 – Schneider Electric

    Schneider Electric
    Original price was: ₹92,320.00.Current price is: ₹44,313.60. Excl. GST
    Add to basket
    SKU: C25H32D250
    C25F3TM200 NSX250F 36kA AC 3P3D 200A TMD Schneider Electric c25f3tm200
    -50%

    C25F3TM200 | NSX250F 36kA AC 3P3D 200A TMD – Schneider Electric

    Schneider Electric
    Original price was: ₹57,770.00.Current price is: ₹28,885.00. Excl. GST
    Add to basket
    SKU: C25F3TM200
    C25H3MA220 NSX250H 70kA AC 3P3D 220A MA Schneider Electric c25h3ma220
    -52%

    C25H3MA220 | NSX250H 70kA AC 3P3D 220A MA – Schneider Electric

    Schneider Electric
    Original price was: ₹116,130.00.Current price is: ₹55,742.40. Excl. GST
    Add to basket
    SKU: C25H3MA220
    C25F42D250 Circuit breaker, ComPacT NSX250F, 36kA 415VAC, 4 poles, MicroLogic 2.2 trip unit 250A Schneider Electric c25w42d25
    -50%

    C25F42D250 | Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 4 poles, MicroLogic 2.2 trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹97,880.00.Current price is: ₹48,940.00. Excl. GST
    Add to basket
    SKU: C25F42D250
    C25N6TM250 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 4 poles 3D neutral not protected , TMD trip unit 250A Schneider Ele
    -52%

    C25N6TM250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹80,720.00.Current price is: ₹38,745.60. Excl. GST
    Add to basket
    SKU: C25N6TM250
    C25F3MA220 NSX250F 36kA AC 3P3D 220A MA Schneider Electric c25f3ma220
    -52%

    C25F3MA220 | NSX250F 36kA AC 3P3D 220A MA – Schneider Electric

    Schneider Electric
    Original price was: ₹67,730.00.Current price is: ₹32,510.40. Excl. GST
    Add to basket
    SKU: C25F3MA220
    C25F42D250 Circuit breaker, ComPacT NSX250F, 36kA 415VAC, 4 poles, MicroLogic 2.2 trip unit 250A Schneider Electric c25w42d25
    -50%

    C25N42D250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 4 poles, MicroLogic 2.2 trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹104,850.00.Current price is: ₹52,425.00. Excl. GST
    Add to basket
    SKU: C25N42D250

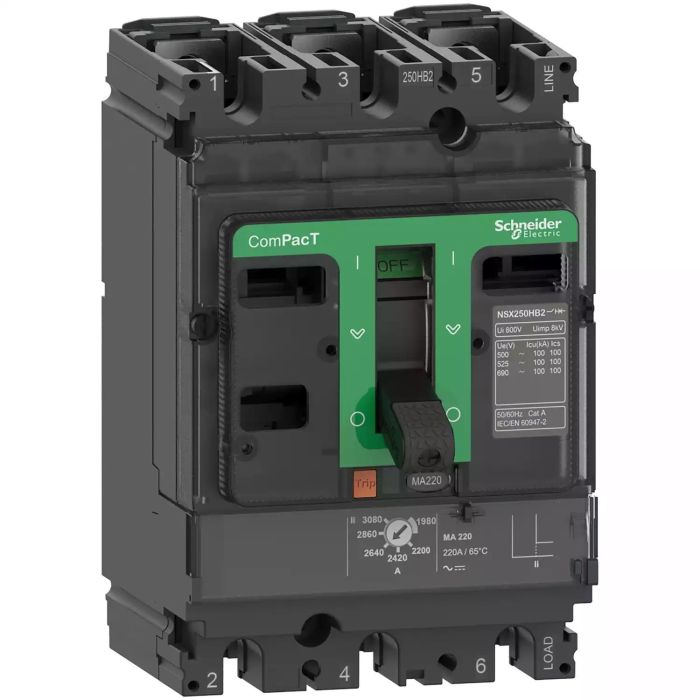

    C25N3MA220 NSX250N 50kA AC 3P3D 220A MA Schneider Electric c25n3ma220
    -52%

    C25N3MA220 | NSX250N 50kA AC 3P3D 220A MA – Schneider Electric

    Schneider Electric
    Original price was: ₹74,330.00.Current price is: ₹35,678.40. Excl. GST
    Add to basket
    SKU: C25N3MA220
    C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
    -50%

    C25F3TM250 | Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 3 poles, TMD trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹59,440.00.Current price is: ₹29,720.00. Excl. GST
    Add to basket
    SKU: C25F3TM250

      Looking for the LV431541 | motor mechanism, MT 250, Compact NSX250, PowerPact Multistandard J, 220 VAC to 240 VAC 50/60 Hz, 208 VAC to 277 VAC 60 Hz? This genuine Schneider Electric mccb is built for reliable circuit protection and isolation, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 220V AC. Order part number LV431541 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULV431541
      CategoryMCCB
      Main
      Device short nameMT250
      Product or component typeMotor mechanism
      Device applicationAutomatic spring charging
      Range compatibilityComPacT NSX250
      ComPacT NSX250 DC
      Control typeStandard
      [Uc] control circuit voltage208…277 V AC 60 Hz
      220…240 V AC 50/60 Hz
      circuit breaker mounting modeFixed
      circuit breaker frame rated current250 A
      Complementary
      Control signal typeMaintained
      Impulse
      circuit breaker response time< 700 ms open
      < 80 ms closed
      Maximum operating frequency4 per minute
      Maximum power consumption in VA500 VA closing
      500 VA opening
      Provided equipmentSDE adaptor
      Locking options description1 to 3 padlocks Ø 5 to Ø 8
      Padlocking in OFF position
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height10.800 cm
      Package 1 Width12.400 cm
      Package 1 Length17.000 cm
      Package 1 Weight1.383 kg
      Unit Type of Package 2S04
      Number of Units in Package 215
      Package 2 Height30.000 cm
      Package 2 Width40.000 cm
      Package 2 Length60.000 cm
      Package 2 Weight21.448 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
      • CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
      • Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
      • Motorised operating mechanism — remote ON/OFF from ATS, SCADA, or BMS; enables automatic changeover and load management without manual intervention.
      • Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      C25N3TM250C25F3TM250C25N32D250C25N3TM200C25F3TM200C25F32D250C25H32D250C25N3MA220C25F44V250C25F42D250C25F3MA220C25B3TM250C25N42D250C25N6TM250C25H3MA220C25B32D250C25F6TM200

      ❓ Frequently Asked Questions

      Q: Is the LV431541 suitable for use as a motor branch circuit protector (Type E coordination)?

      A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

      Q: Can the LV431541 be motorised for remote switching and automation?

      A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

      Q: What trip unit type does the LV431541 use — thermal-magnetic or electronic?

      A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

      Q: Which Schneider Electric accessories are compatible with the LV431541?

      A: The Schneider Electric LV431541 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the LV431541.

      Q: What is the difference between an MCCB and a standard MCB — and why use the LV431541?

      A: A standard MCB protects against overload and short-circuit only. An MCCB handles much higher fault levels and larger current ratings — MCCBs are rated up to 1600A with 25–200kA breaking capacity, compared to MCBs which are capped at typically 125A and 10kA. Choose the LV431541 when the application specifically requires mccb characteristics.
