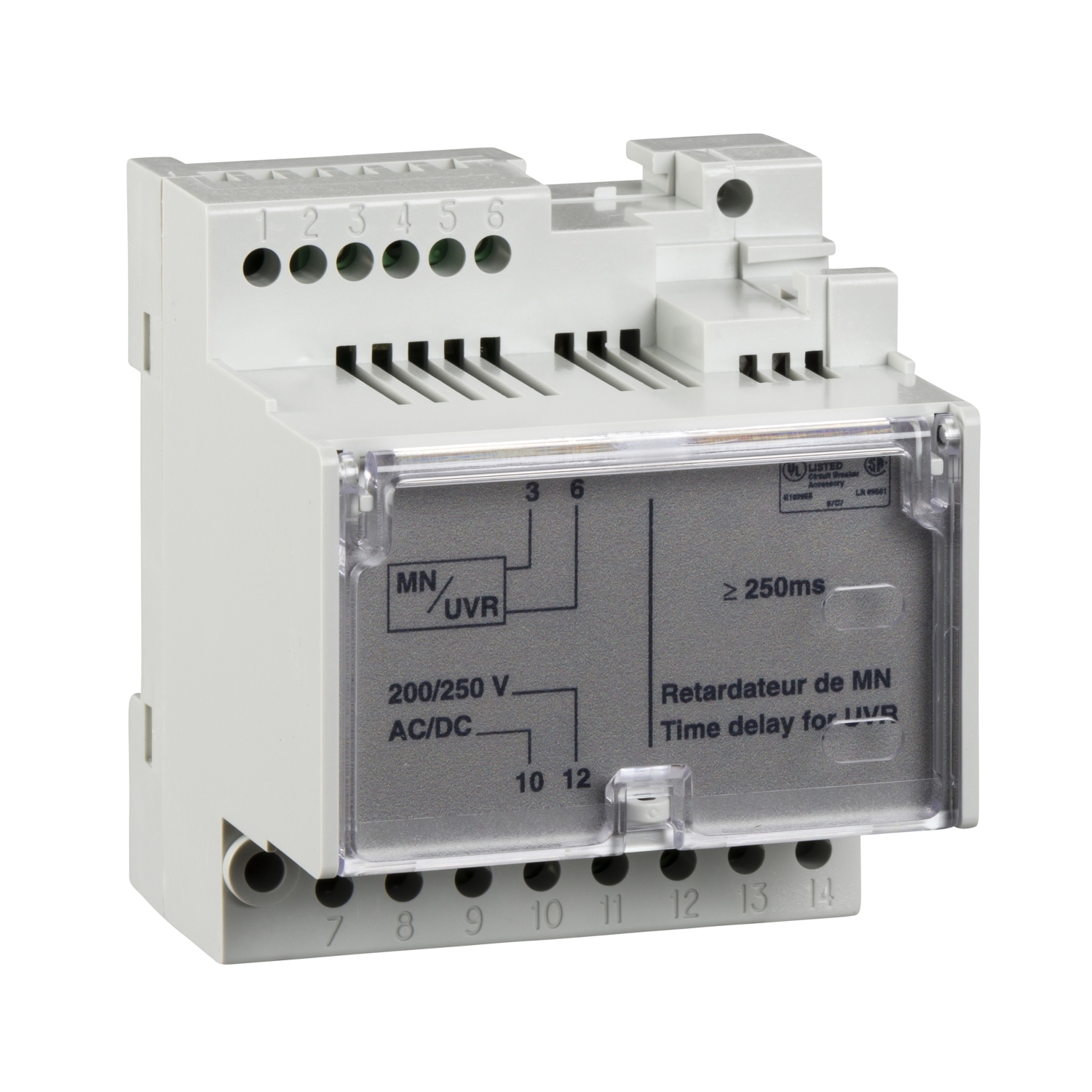

33684 | non – adjustable time delay relay for voltage release MN – 100/130 V AC/DC – Schneider Electric

Name: Schneider Electric MN-100/130V AC/DC Time Delay Relay 33684
Brand: Schneider Electric
SKU: 33684
Price: 9619.50 INR
Availability: InStock

SKU: 33684

Original price was: ₹18,150.00.Current price is: ₹9,619.50. Excl. GST

In stock

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-47%

33812 | voltage release MX 100 to 130 V DC and – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 33812

-47%

33670 | MN undervoltage release 100 to 130 VAC 50/60 Hz – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 33670

33673 MN undervoltage release, Compact NS 630b to Compact NS 3200, 380 VAC to 480 VAC 50 60 Hz Schneider Electric oda056421n

-47%

33661 | MX shunt trip release, Compact NS 630b to Compact NS 3200, 100 VDC to 130 VDC, 100 VAC to 130 VAC 50/60 Hz – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: 33661

The Schneider Electric 33684 is a relay, engineered for motor control and switching in demanding Indian and international installations. Key ratings include 100/130V AC. Buy the non – adjustable time delay relay for voltage release MN – 100/130 V AC/DC online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	33684
Category	Relay
Main
Device short name	MN delay unit
Product or component type	Time delay relay
Device application	Control
Range compatibility	Masterpact MasterPact NT Masterpact MasterPact NW ComPact ComPact NS630b…1600 ComPact ComPact NS1600b…3200 Masterpact MasterPact NW UL 489 Masterpact MasterPact NT UL 489 Masterpact MasterPact NW DC
Voltage release type	Undervoltage release
[Uc] control circuit voltage	100…130 V AC 50/60 Hz 100…130 V DC
Complementary
Impulse duration	200 ms
Time delay range	0.25 s
Threshold tripping voltage	0.35…0.7 Un open 0.85 Un close
Supply holding power	4.5 VA
Supply inrush power	200 VA
Mounting mode	External mounting
Response time	0.25 s
Accessory / separate part category	Spare part for Compact NS630b…1600 Spare part for Compact NS1600b…3200
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.5 cm
Package 1 Width	7.7 cm
Package 1 Length	9.0 cm
Package 1 Weight	149.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.169 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

336613367033812

❓ Frequently Asked Questions

Q: How do I test the 33684 relay in the field without a signal source?

A: Most Schneider Electric relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.

Q: Can the 33684 relay be mounted on a DIN rail socket for easy replacement?

A: This Schneider Electric relay typically requires direct panel or DIN rail wiring. For applications requiring frequent relay replacement, consider the plug-in relay variant of this series with a matching socket base.
