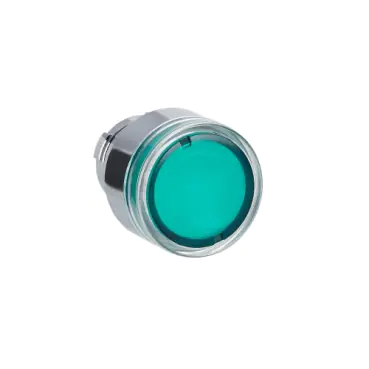

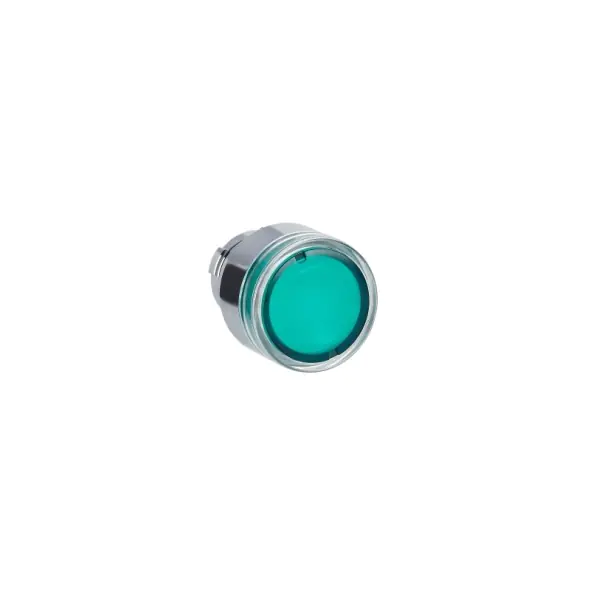

ZB2BW33C | Ø 22 mm fixing hole – push button head with green lamp – Schneider Electric

Name: Schneider Electric ZB2BW33C Green Lamp Push Button
Brand: Schneider Electric
SKU: ZB2BW33C
Price: 198.25 INR
Availability: InStock

SKU: ZB2BW33C

Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST

In stock

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-35%

ZB2BWM31C | metal series pushbutton base – 380V AC-50HZ LED green-1NO contact-IEC640947-5-1 – Schneider Electric

Pushbutton

Schneider Electric

Excl. GST

Add to basket

SKU: ZB2BWM31C

Sourced through authorised channels, the Schneider Electric ZB2BW33C push button from the Harmony XB2 range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP65. myelectric.in stocks the ZB2BW33C | Ø 22 mm fixing hole – push button head with green lamp for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ZB2BW33C
Category	Push Button
Main
Range of product	Harmony XB2
Product or component type	Head for illuminated push-button
Bezel material	Chromium plated metal
Component name	ZB2
Shape of signaling unit head	Round
Electrical circuit type	Control circuit
Type of operator	Spring return
Operator profile	Green flush, unmarked
Device presentation	Basic element
Head type	Flush
Device short name	XB2
Sale per indivisible quantity	1
Complementary
Mechanical durability	3000000 cycles
Mounting diameter	22.5 mm
Height	29 mm
Width	29 mm
Depth	34 mm
Product weight	0.030 kg
Type of operator	spring return
Cap/operator or lens colour	Green
Marking	Unmarked
Product certifications	CCC CE
Customizable	No
Product compatibility	ZB2..C
Environment
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…70 °C
Vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Overvoltage category	Class I conforming to IEC 60536
IP degree of protection	IP65
IK degree of protection	IK06
Protective treatment	TC/TH
Standards	GB/T 14048.5 EN/IEC 60947-5-1 GB/T 14048.1 EN/IEC 60947-1 EN/IEC 60947-5-4
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.912 cm
Package 1 Width	2.912 cm
Package 1 Length	3.461 cm
Package 1 Weight	28.8 g
Unit Type of Package 2	S02
Number of Units in Package 2	150
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	5 kg
Unit Type of Package 3	P06
Number of Units in Package 3	3000
Package 3 Height	90 cm
Package 3 Width	60 cm
Package 3 Length	80 cm
Package 3 Weight	92.67 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
