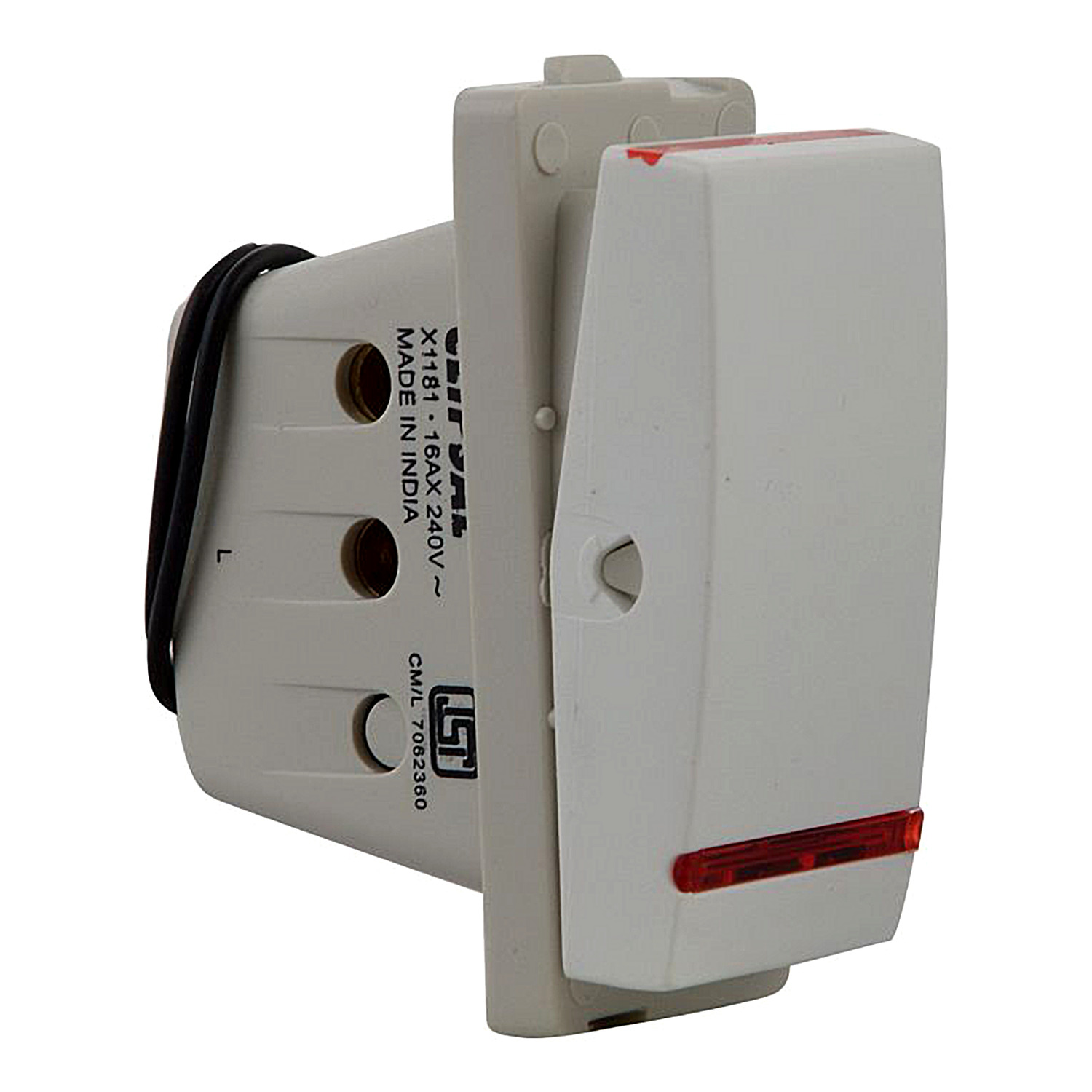

X1181WH | Opale switch with indicator lamp 1-way 16 A white – Schneider Electric

Name: X1181WH | Opale switch with indicator lamp 1-way 16 A white - Schneider Electric
Brand: Schneider Electric
SKU: X1181WH
Availability: InStock

SKU: X1181WH

Original price was: ₹671.00.Current price is: ₹214.72. Excl. GST

In stock

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the X1181WH | Opale switch with indicator lamp 1-way 16 A white? This genuine Schneider Electric switch from the Opale range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 16 A, 240 V, IP20. Order part number X1181WH from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	X1181WH
Category	Switch
Main
Range	Opale
Product or component type	Switch with indicator lamp
Device presentation	Mechanism
Light source	Neon
Quantity per set	Set of 10
Colour tint	White
Complementary
Technology type	Electromechanical
Device mounting	Flush
Number of modules	1 module
Actuator	Rocker
Switch function	1-way
Rated current	16 A
[Ue] rated operational voltage	240 V
Lamp function	Indicator
Network type	AC
Surface finish	Satin
Network frequency	50 Hz
Fixing mode	By captive screws
Connections – terminals	Shrouded terminals
Material	ABS + PC: front cover PC: base cover
Height	48 mm
Width	21 mm
Depth	36.9 mm
Environment
Standards	IS 3854:1997/A1
IP degree of protection	IP20
Ambient air temperature for operation	-5…35 °C
Relative humidity	10…95 %
Environmental characteristic	Indoor use
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.1 cm
Package 1 Width	4.3 cm
Package 1 Length	3.3 cm
Package 1 Weight	34 g
Contractual warranty
Warranty (in months)	18

⚡ Key Features

16 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 16 A rating on the X1181WH?

A: The 16 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
