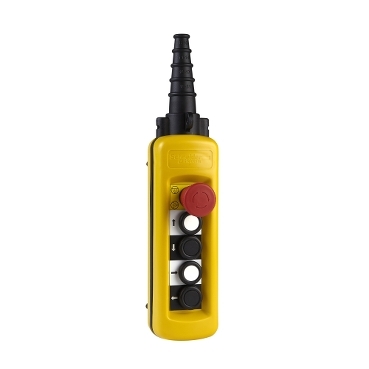

Name: Schneider Electric XAC-A Pendant Station with E-Stop | XACA4714
Brand: Schneider Electric
SKU: XACA4714
Price: 14447.00 INR
Availability: OutOfStock

SKU: XACA4714

₹14,447.00 Excl. GST

Out of stock

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

ZB2BE102 CONTACT BLOCK Schneider Electric xb2b xa2b 764 cpoda2016011 1500x1500

-27%

ZB2BE101 | CONTACT BLOCK – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: ZB2BE101

-37%

ZA2BS844 | PUSHBUTTON – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: ZA2BS844

-37%

ZB2BE102 | CONTACT BLOCK – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: ZB2BE102

The Schneider Electric XACA4714 is an emergency stop button from the Harmony XAC range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include IP65. Buy the XACA4714 | pendant control station XAC-A – 4 pushbuttons 1 Emergency stop online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	XACA4714
Category	Emergency Stop Button
Main
Range of product	Harmony XAC
Product or component type	Pendant control station
Device short name	XACA
Complementary
Control station type	Double insulated
Enclosure material	Polypropylene
Electrical circuit type	Control circuit
enclosure type	Complete ready for use
Control station application	Control of single speed hoist motor
Control station composition	4 push-buttons + 1 emergency stop
Control button type	First push-button 1 NO raise, slow Second push-button 1 NO lower, slow Fourth push-button 1 NO left, slow Third push-button 1 NO right, slow Emergency stop push-button Ø 40 mm 1 NC trigger action
Product compatibility	ZB2BE101 for each direction ZB2BE102 for emergency stop
Mechanical interlocking	With mechanical interlocking between pairs
Control station colour	Yellow
Connections – terminals	Screw clamp terminals, 1 x 0.5…1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5…2 x 1.5 mm² with cable end
Standards	EN/IEC 60204-32 EN/ISO 13850: 2006 EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-5
Product certifications	GOST CCC
Protective treatment	TH
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…70 °C
Vibration resistance	15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock resistance	100 gn conforming to IEC 60068-2-27
Overvoltage category	Class II conforming to IEC 61140
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 50102
Mechanical durability	1000000 cycles
Cable entry	Rubber sleeve with stepped entry 8…26 mm
Contact code designation	A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current	10 A
[Ui] rated insulation voltage	600 V (pollution degree 3)
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Contact operation	Slow-break
Maximum resistance across terminals	25 MOhm
Operating force	10 N push-button 8 N emergency stop
Short-circuit protection	10 A fuse protection by cartridge fuse type gG
Rated operational power in W	40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Terminals description ISO n°1	(13-14)NO
Terminals description ISO n°2	(11-12)NC
Terminal identifier	(11-12)NC (13-14)NO
Product weight	0.8 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10 cm
Package 1 Width	11 cm
Package 1 Length	51.2 cm
Package 1 Weight	793 g
Contractual warranty
Warranty (in months)	18
