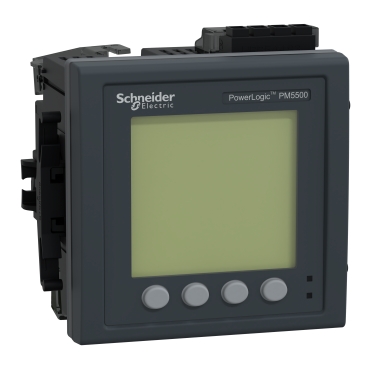

PM5560 Power Meter 63A 0.2S 8MT RS Ethernet – Schneider Electric

Product Code: 30003008D

Overview

The PM5560 Power Meter by Schneider Electric is a high-precision energy measurement device designed for industrial and commercial applications. It offers advanced metering capabilities with a 0.2S accuracy class, making it suitable for demanding environments where precise energy monitoring is essential.

Key Features

• Accuracy Class: 0.2S for high precision energy measurement.
• Rated Current: 63A, suitable for a wide range of applications.
• Measurement Capabilities: Measures active, reactive, and apparent energy, as well as power, voltage, current, power factor, and frequency.
• Communication: Equipped with RS-485 and Ethernet communication interfaces for seamless integration into industrial networks.
• Modbus Protocol: Supports Modbus RTU and Modbus TCP protocols for easy data exchange with SCADA systems and other devices.
• Harmonics Analysis: Provides detailed harmonics analysis up to the 63rd order, ensuring comprehensive power quality monitoring.
• Display: Features a clear, easy-to-read LCD display for real-time data visualization.
• Mounting: DIN rail mounting for easy installation in electrical panels.
• Certifications: Complies with international standards such as IEC 62053-22, IEC 61010-1, and IEC 61000-4.
• Environmental Resistance: Designed to operate in harsh environments with a wide temperature range and high resistance to electrical disturbances.

Applications

The PM5560 Power Meter is ideal for use in:

• Industrial plants
• Commercial buildings
• Data centers
• Renewable energy systems
• Utility substations

Technical Specifications
