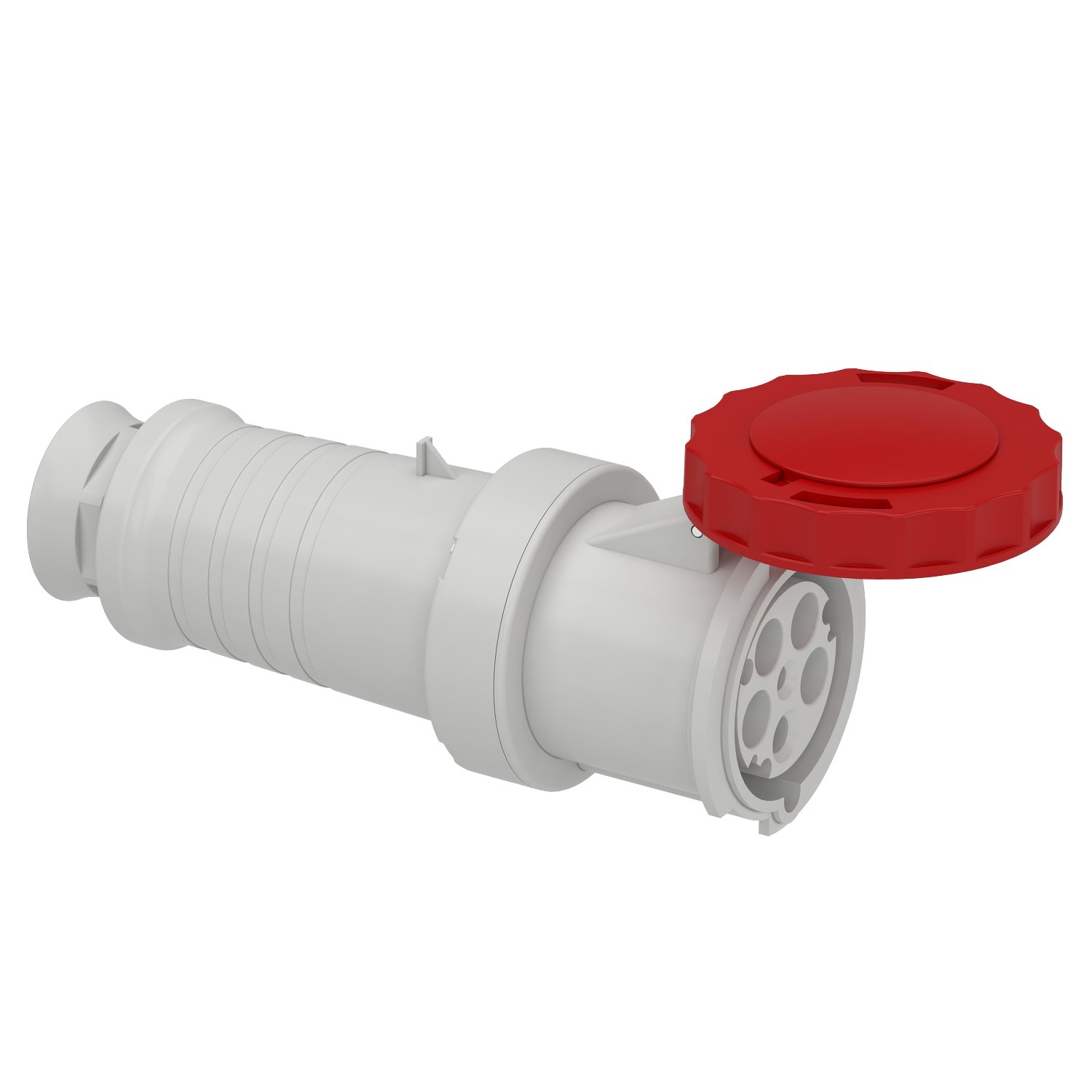

81483 | PratiKa wander socket – straight – 63 A – 3P + N + E – 380…415 V AC – IP67 – Schneider Electric

Name: Schneider Electric PratiKa 63A 3P+N+E IP67 Industrial Socket | 81483
Brand: Schneider Electric
SKU: 81483
Price: 3903.35 INR
Availability: InStock

SKU: 81483

Original price was: ₹7,097.00.Current price is: ₹3,903.35. Excl. GST

In stock

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-46%

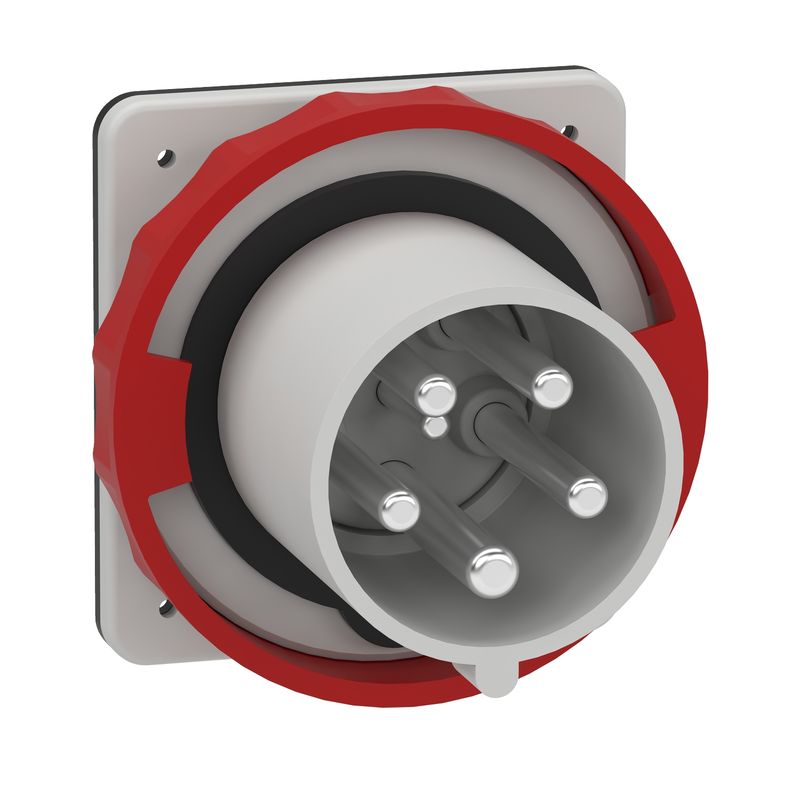

81883 | PK PANEL STRAIGHT PLUG 63A 3PNT 380-415V – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: 81883

-45%

81383 | PratiKa wander plug – straight – 63 A – 3P + N + E – 380…415 V AC – IP67 – Schneider Electric

Plug

Schneider Electric

Excl. GST

Add to basket

SKU: 81383

The Schneider Electric 81483 is an industrial plug & socket (iec 60309) from the Mureva range, engineered for everyday wiring and control in demanding Indian and international installations. Key ratings include 63 A, 380…415 V, 3P + N + E. Buy the PratiKa wander socket – straight – 63 A – 3P + N + E – 380…415 V AC – IP67 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	81483
Category	Industrial Plug & Socket (IEC 60309)
Main
Range	Mureva
Product or component type	Wander socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial
Complementary
Plug, socket, control station shape	Straight
[In] rated current	63 A
[Ue] rated operational voltage	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Connections – terminals	Captive screws
Cable cross section	6…25 mm²
Cable outer diameter	17…31 mm
cable entry	Cable gland
Thread type	Pg 36
Product weight	0.783 kg
Height	110 mm
Width	110 mm
Depth	265 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Environment
Standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-1
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.800 cm
Package 1 Width	10.900 cm
Package 1 Length	27.600 cm
Package 1 Weight	804.200 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	8.442 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

63 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
IP67 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

8138381883

❓ Frequently Asked Questions

Q: What is the significance of the 63 A rating on the 81483?

A: The 63 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What environments is the IP67 rating on the 81483 suitable for?

A: IP67 means the enclosure is dust-tight (complete protection) (first digit: 6) and protected against temporary immersion up to 1m for 30 minutes (second digit: 7). This makes the 81483 suitable for outdoor, wash-down, and wet-process environments. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.

Q: The 81483 has a 5 Pin (3P+N+E) — 3 Phase + Neutral + Earth configuration — can it be used with a standard 3-pin socket?

A: No. The 5 Pin (3P+N+E) — 3 Phase + Neutral + Earth configuration on the 81483 is an IEC 60309 industrial standard and physically incompatible with domestic 3-pin or 5-pin BS 1363/IS 1293 sockets. This is intentional — the colour coding and keyway system prevents accidental connection to the wrong voltage. This 5-pin format requires a matching 5-pin IEC 60309 socket (Red body = 380–415V, 3-phase).

Q: How do I identify the correct 81483 socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
