XB2BSM4LC | Red illuminated buzzer AC220V – Schneider Electric

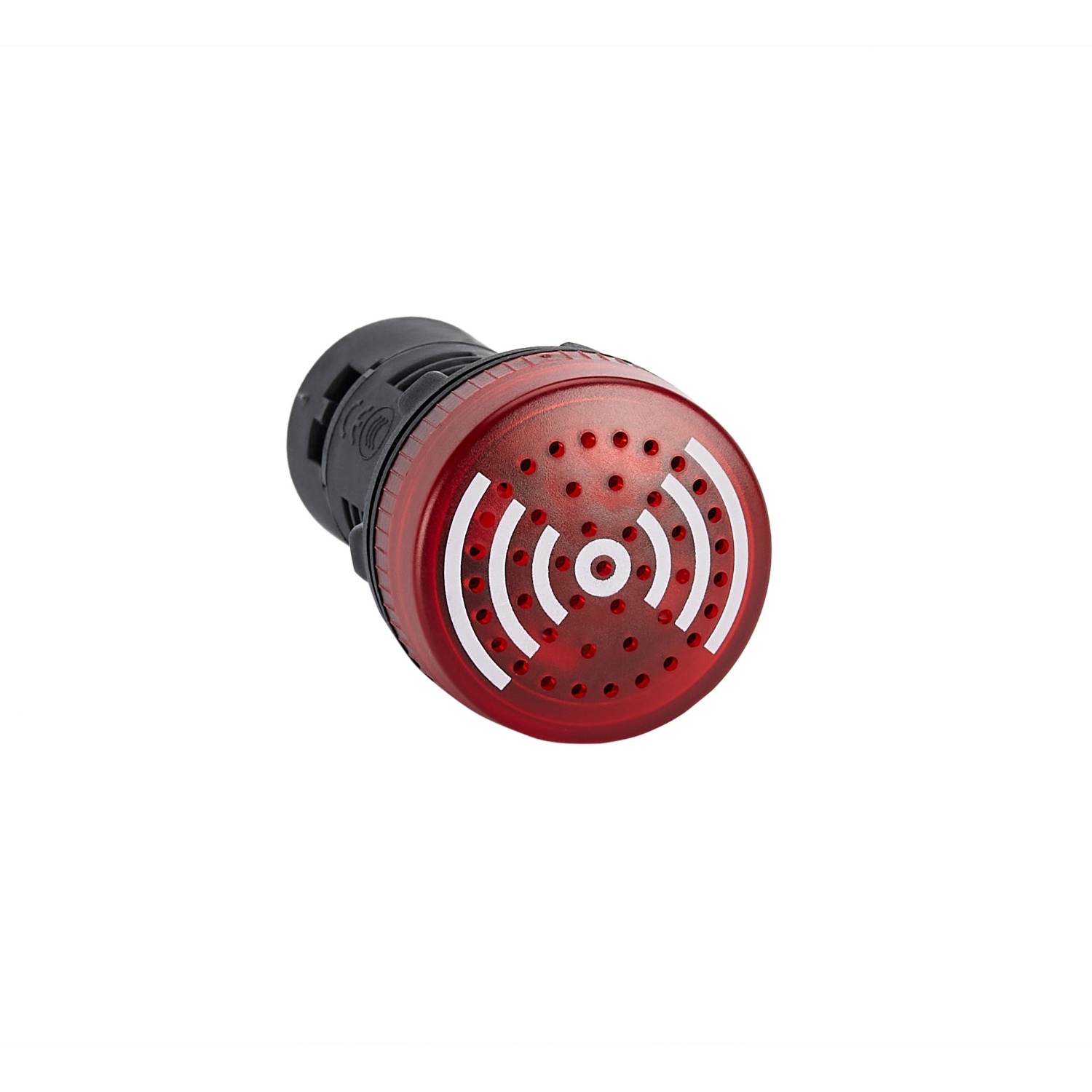

Name: Schneider Electric XB2BSM4LC Red Illuminated Buzzer
Brand: Schneider Electric
SKU: XB2BSM4LC
Price: 636.00 INR
Availability: InStock

SKU: XB2BSM4LC

Original price was: ₹848.00.Current price is: ₹636.00. Excl. GST

In stock

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric XB2BSM4LC panel buzzer / sounder from the Harmony XB2 range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP40. myelectric.in stocks the XB2BSM4LC | Red illuminated buzzer AC220V for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	XB2BSM4LC
Category	Panel Buzzer / Sounder
Main
Range of product	Harmony XB2
Product or component type	Annunciator
Bezel material	Plastic
Mounting diameter	22.5 mm
Cap/operator or lens colour	Red
Device short name	XB2
Light source	LED
Complementary
Supply circuit type	AC
Supply frequency	50/60 Hz
Signalling type	Intermittent tone
Noise level	90 dB 50 Hz…55 Hz AC
Shape of screw head	Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
Height	30 mm
Width	30 mm
Depth	57.2 mm
Product weight	0.020 kg
Current consumption	<= 20 mA
Shape of signaling unit head	Round
[Us] rated supply voltage	230 V +/- 10 %
Operating position	Any position
Service life in hours	20000 h
[Ui] rated insulation voltage	400 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Environment
Protective treatment	TC
Ambient air temperature for storage	-40…80 °C
Ambient air temperature for operation	-25…70 °C
Overvoltage category	Class II conforming to IEC 60536
Standards	IEC 60947-5-1 IEC 60947-1 GB/T 14048.1 GB/T 14048.5
Product certifications	CCC CE
IP degree of protection	IP40
IK degree of protection	IK06
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3 cm
Package 1 Width	3 cm
Package 1 Length	5.8 cm
Package 1 Weight	15.5 g
Unit Type of Package 2	S02
Number of Units in Package 2	100
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	2.21 kg
Unit Type of Package 3	PAL
Number of Units in Package 3	2000
Package 3 Height	60 cm
Package 3 Width	80 cm
Package 3 Length	90 cm
Package 3 Weight	43.4 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
