ABLS1A12062 | Regulated Power Supply, 100 to 240V AC, 12V, 6.2A, single phase, Optimized – Schneider Electric

Name: Schneider Electric ABLS1A12062 12V 6.2A Regulated Power Supply
Brand: Schneider Electric
SKU: ABLS1A12062
Price: 6817.28 INR
Availability: BackOrder

SKU: ABLS1A12062

Original price was: ₹10,652.00.Current price is: ₹6,817.28. Excl. GST

Dispatch By : 8 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-27%

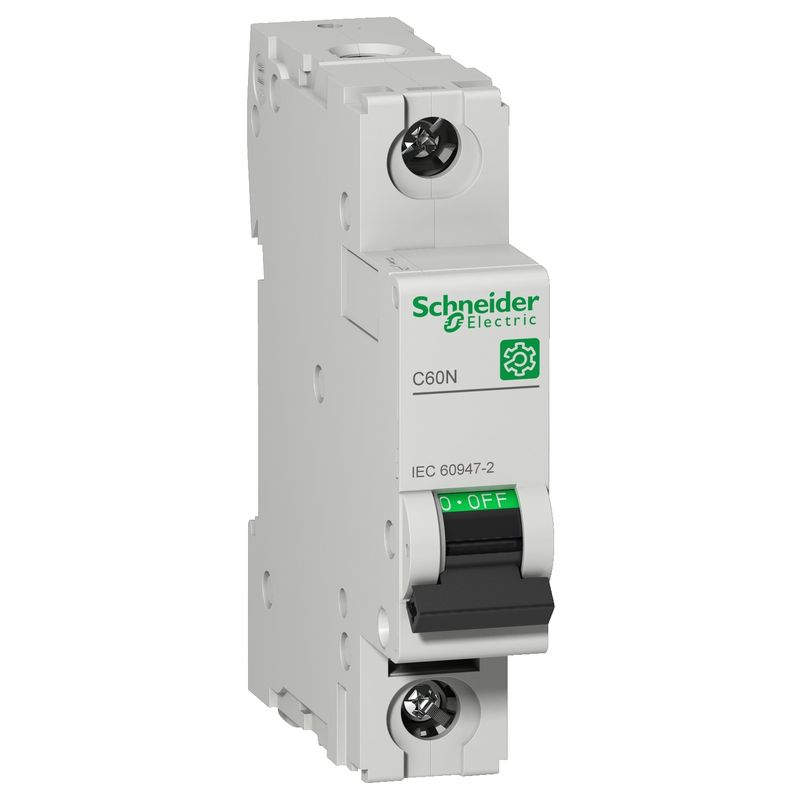

M9F11110 | Multi9 C60N 1P C 10A 10kA 240V MCB – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: M9F11110

-27%

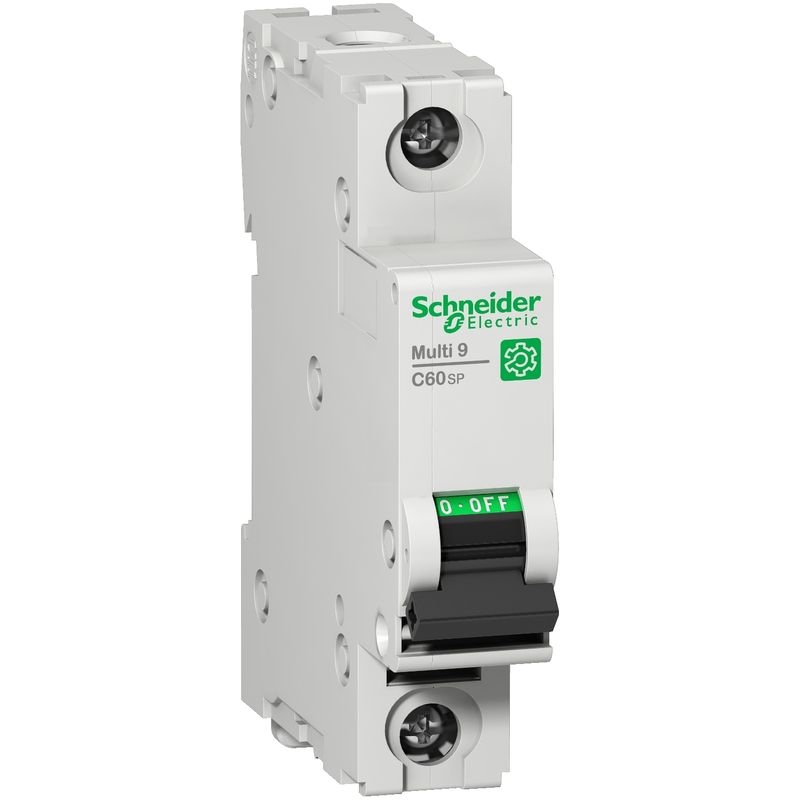

M9F22110 | Multi9 C60SP 1P C 10A 10kA 277V UL1077 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: M9F22110

-36%

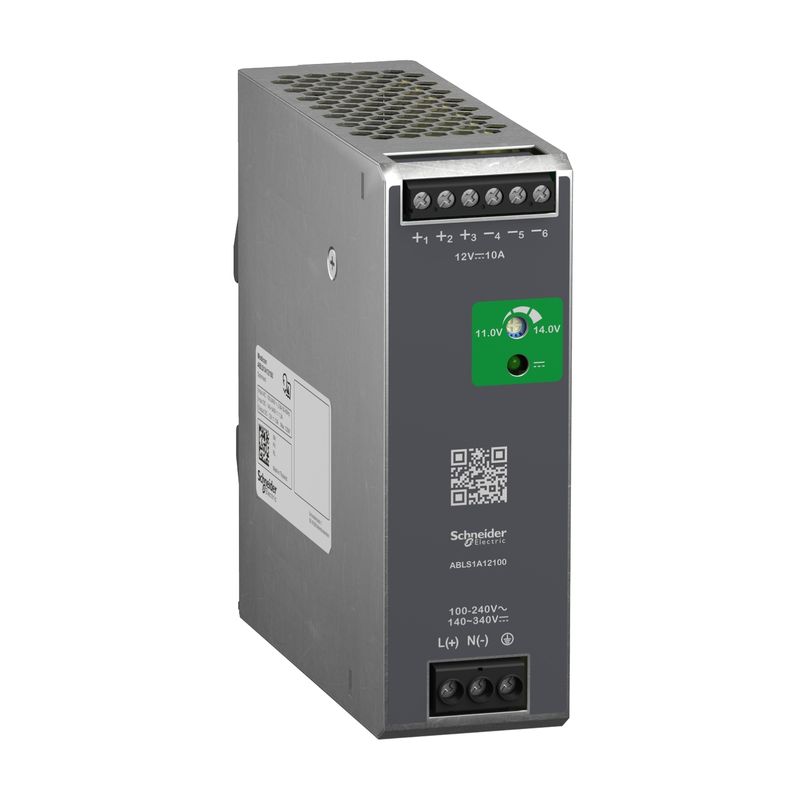

ABLS1A12100 | POWER SUPPLY 12V 10A 1PH OPTIMIZED – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: ABLS1A12100

-33%

ABLS1A48025 | Regulated Power Supply, 100 to 240V AC, 48V, 2.5A, single phase, Optimized – Schneider Electric

SMPS

Schneider Electric

Excl. GST

Add to basket

SKU: ABLS1A48025

-36%

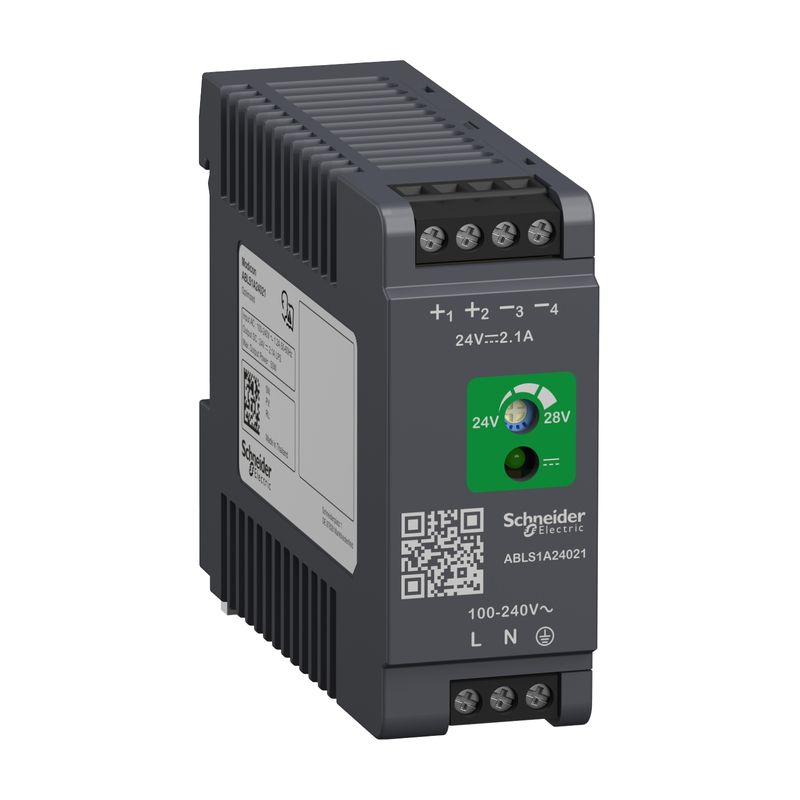

ABLS1A24021 | POWER SUPPLY 24V 2.1A 1PH OPTIMIZED – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: ABLS1A24021

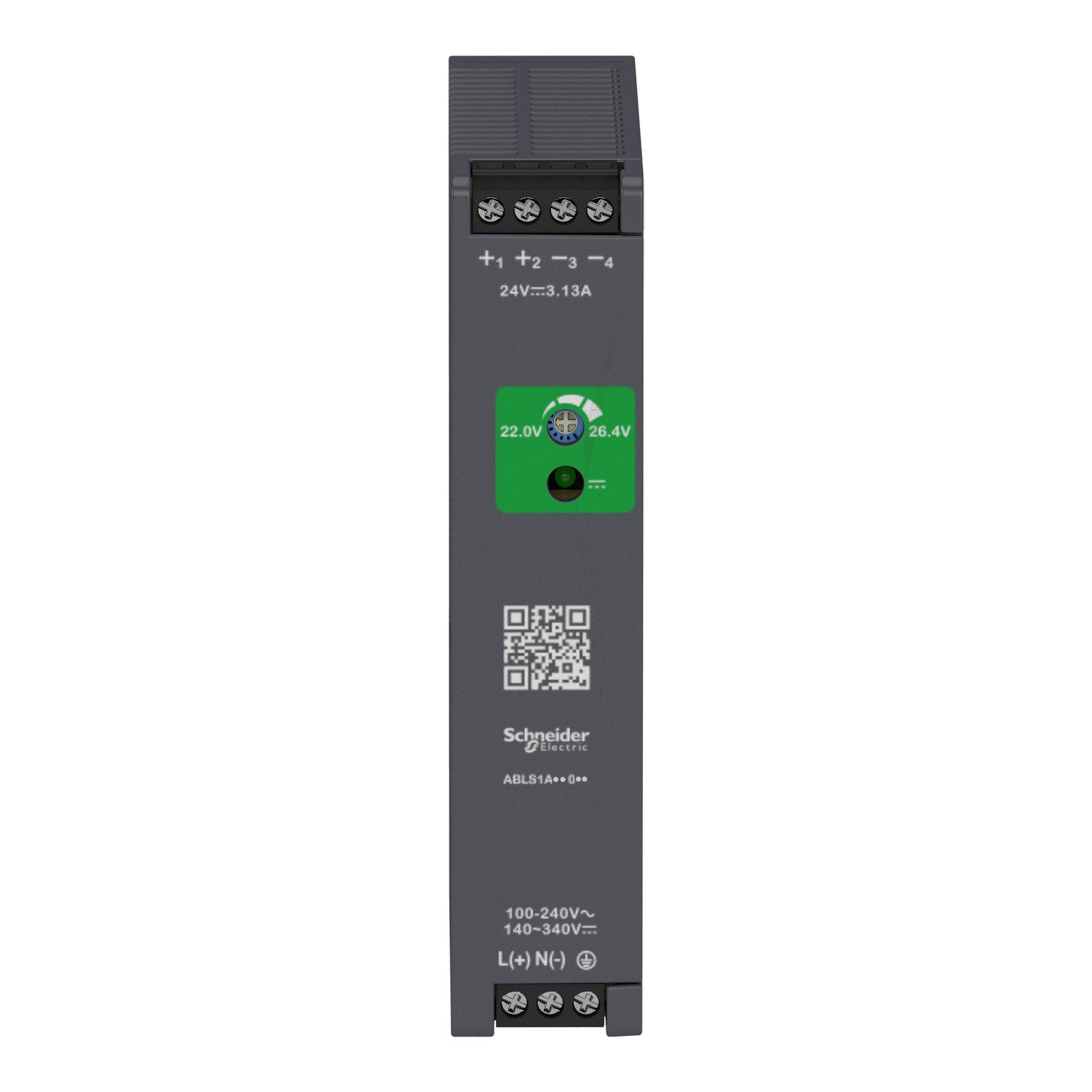

ABLS1A12062 Regulated Power Supply, 100 to 240V AC, 12V, 6.2A, single phase, Optimized Schneider Electric abls1ann0nn front 1

-36%

ABLS1A24031 | Regulated Power Supply, 100 to 240V AC, 24V, 3.1A, single phase, Optimized – Schneider Electric

SMPS

Schneider Electric

Excl. GST

Add to basket

SKU: ABLS1A24031

-36%

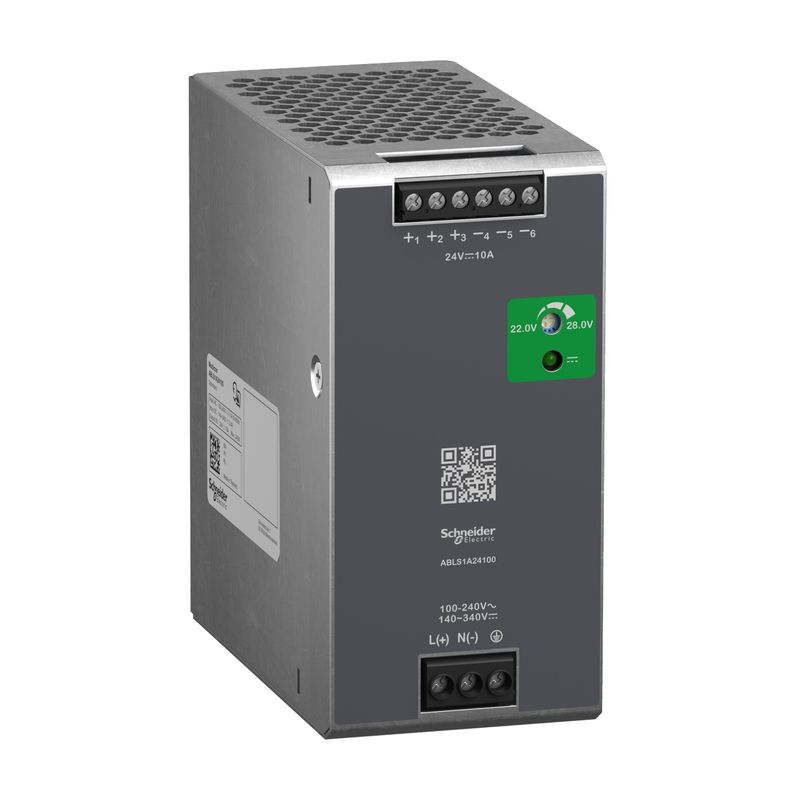

ABLS1A24100 | POWER SUPPLY 24V 10A 1PH OPTIMIZED – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: ABLS1A24100

Looking for the ABLS1A12062 | Regulated Power Supply, 100 to 240V AC, 12V, 6.2A, single phase, Optimized? This genuine Schneider Electric dc power supply / smps from the Modicon Power Supply range is built for stable DC control power, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 6.2 A, 100–240V AC, IP20. Order part number ABLS1A12062 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ABLS1A12062
Category	DC Power Supply / SMPS
Main
Range of product	Modicon Power Supply
Product or component type	Power supply
Power supply type	Regulated switch mode
Variant option	Optimized
Enclosure material	Plastic
Nominal input voltage	100…240 V AC single phase 100…240 V AC phase to phase 140…340 V DC
Rated power in W	75 W
Output voltage	12 V DC
Power supply output current	6.25 A
Complementary
Input voltage limits	85…264 V AC without temperature derating 120…375 V DC without temperature derating
Nominal network frequency	50…60 Hz
Network system compatibility	TN TT IT
Maximum leakage current	1 mA 240 V AC
Input protection type	Integrated fuse (not interchangeable) 5 A External protection (recommended) 20 A Curve C External protection (recommended) 13 A Curve B External protection (recommended) 10 A Curve C
Inrush current	40.0 A at 115 V 80.0 A at 230 V
Power factor	0.55 at 115 V AC 0.45 at 230 V AC
Efficiency	87 % at 230 V AC
Output voltage adjustment	11…14 V
Power dissipation in W	16 W
Current consumption	< 1.8 A 115 V AC < 1 A 230 V AC < 0.8 A 140 V DC
Turn-on time	< 1.2 s
Holding time	> 20 ms 115 V AC > 40 ms 230 V AC
Startup with capacitive loads	5000 µF
Residual ripple	< 120 mV
Meantime between failure [MTBF]	700000 h at 25 °C, full load conforming to SR 332
Output protection type	Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset
Connections – terminals	Screw connection: 0.5…2.5 mm², (AWG 20…AWG 14) for output Screw connection: 0.75…2.5 mm², (AWG 18…AWG 14) for input
Line and load regulation	< 0.5 % at 0 to 100 % load at 25 °C < 1 % at full voltage range in line at 25 °C
Status LED	1 LED (green) output voltage
Depth	102 mm
Height	123.6 mm
Width	27 mm
Product weight	0.22 kg
Output coupling	Parallel Serial
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 Double-profile DIN rail
Supply	SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41
Dielectric strength	3000 V AC with input to output
Service life	10 year(s)
Overvoltage category	II
Environment
Standards	IEC 62368-1 EN/IEC 61010-1 EN 61010-2-201 EN/IEC 61204-3 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 IEC 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201
Product certifications	CE CUL listed CUL recognized RCM CB Scheme EAC KC NEC: class 2
Operating altitude	< 5000 m overvoltage category III
Shock resistance	150 m/s² for 11 ms
IP degree of protection	IP20
Ambient air temperature for operation	-20…-10 °C with current derating of 1 % per °C mounting position A < 2000 m -10…40 °C without derating mounting position A 115 V AC < 2000 m -10…50 °C without derating mounting position A 230 V AC < 2000 m 40…70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m 50…70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m
Electrical shock protection class	Class I
Pollution degree	2
Vibration resistance	3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6
Electromagnetic immunity	Immunity to electrostatic discharge – test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 Immunity to electrostatic discharge – test level: 15 kV (air discharge) conforming to IEC 61000-4-2 Immunity to conducted RF disturbances – test level: 15 V/m (80 MHz…2 GHz) conforming to IEC 61000-4-3 Immunity to conducted RF disturbances – test level: 5 V/m (2…2.7 GHz) conforming to IEC 61000-4-3 Immunity to conducted RF disturbances – test level: 5 V/m (2.7…6 GHz) conforming to IEC 61000-4-3 Immunity to fast transients – test level: 4 kV (on input-output) conforming to IEC 61000-4-4 Surge immunity test – test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 Surge immunity test – test level: 3 kV (between phases) conforming to IEC 61000-4-5 Immunity to conducted RF disturbances – test level: 15 V (0.15…80 MHz) conforming to IEC 61000-4-6 Immunity to magnetic fields – test level: 30 A/m (50…60 Hz) conforming to IEC 61000-4-8 Immunity to voltage dips conforming to IEC 61000-4-11 Disturbing field emission conforming to EN 55016-2-3 Limits for harmonic current emissions conforming to IEC 61000-3-2 conforming to EN 55016-1-2 conforming to EN 55016-2-1
Electromagnetic emission	Conducted emissions conforming to IEC 61000-6-3 Radiated emissions conforming to IEC 61000-6-4
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.000 cm
Package 1 Width	14.500 cm
Package 1 Length	16.500 cm
Package 1 Weight	319.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	22
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	7.684 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Single-phase input — connects to standard 230V AC single-phase supply; no three-phase supply required.
6.2 A output current — sized to power a full PLC rack with I/O modules, solenoid coils, and indicator lamps from a single supply unit.
Electronic short-circuit and overload protection — output current-limits on fault and self-recovers automatically on fault clearance; no fuses to replace after a wiring short.
35mm DIN rail mounting (EN 60715) — snaps into the control panel rail alongside MCBs and terminal blocks; no separate bracket or drilling required.
Manufactured to IEC 61204 (LV power supplies) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

ABLS1A12100ABLS1A24021ABLS1A24031ABLS1A24100ABLS1A48025M9F11120M9F11110M9F22120M9F22110

❓ Frequently Asked Questions

Q: What is the significance of the 6.2 A rating on the ABLS1A12062?

A: The 6.2 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: Is the ABLS1A12062 compatible with both 110V and 230V AC mains supply?

A: Yes. The ABLS1A12062 accepts a wide-range 100–240V AC input, making it compatible with Indian 230V AC single-phase supply, 110V AC international supply, and generator output which may fluctuate. No voltage selector switch is required — the universal-input switching design handles the full input range automatically, simplifying installation and reducing procurement variants.

Q: Can multiple ABLS1A12062 units be connected in parallel to increase output current?

A: Standard SMPS units like the ABLS1A12062 are not designed for direct parallel operation without active current-sharing circuitry. Connecting outputs in parallel without current sharing causes one unit to carry the full load while the other idles — leading to premature failure. For higher current requirements, use a single higher-rated PSU or use Schneider Electric-specified redundancy modules that manage load sharing and provide N+1 fault tolerance for critical applications.
