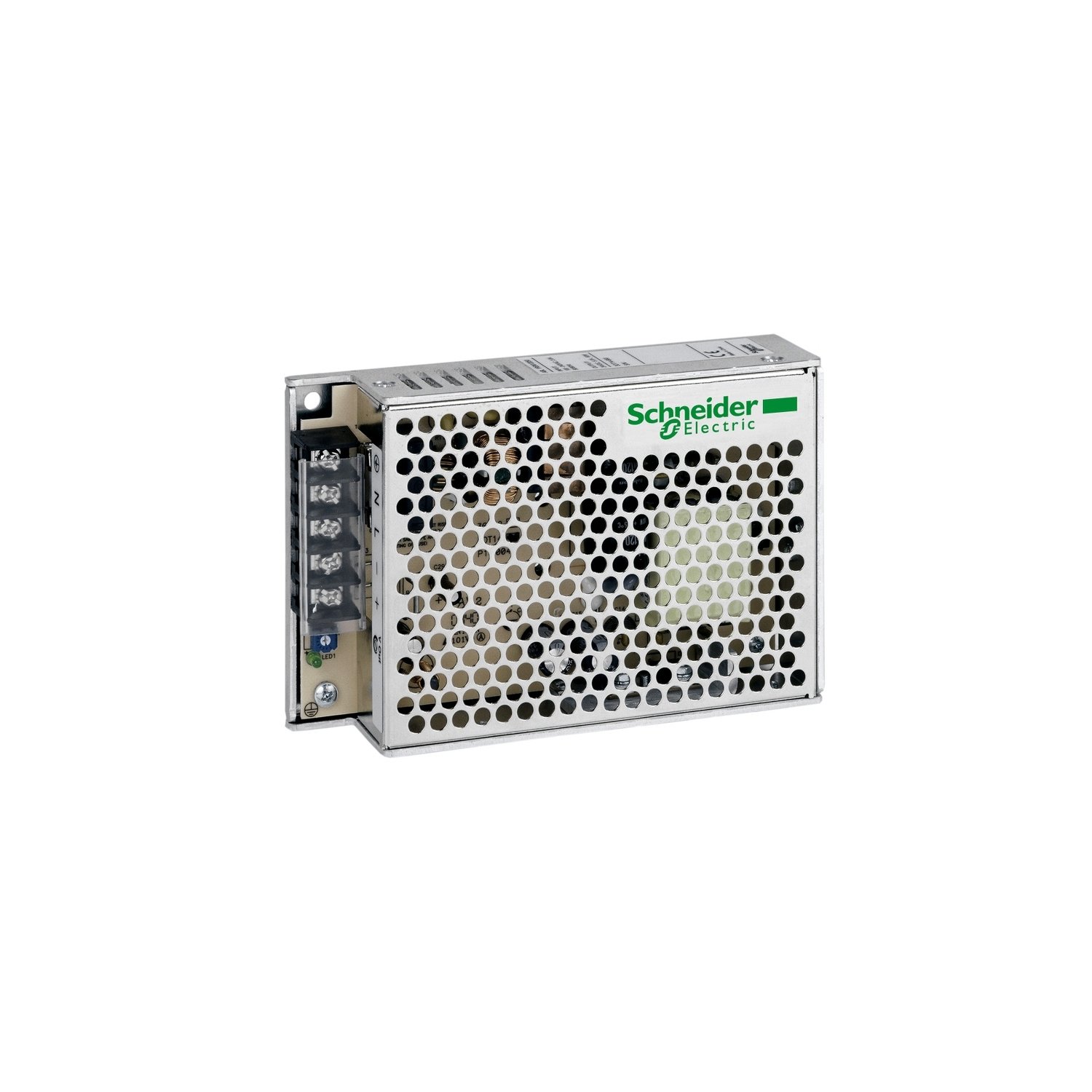

ABL1REM12050 | regulated SMPS – single phase – 100..240 V input – 12 V output – 60 W – Schneider Electric

Name: Schneider Electric ABL1REM12050 12V 60W Regulated SMPS
Brand: Schneider Electric
SKU: ABL1REM12050
Price: 9275.00 INR
Availability: OutOfStock

SKU: ABL1REM12050

₹9,275.00 Excl. GST

Out of stock

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the ABL1REM12050 | regulated SMPS – single phase – 100..240 V input – 12 V output – 60 W? This genuine Schneider Electric dc power supply / smps from the Phaseo Dedicated range is built for stable DC control power, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP20. Order part number ABL1REM12050 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ABL1REM12050
Category	DC Power Supply / SMPS
Main
Range of product	Phaseo Dedicated
Product or component type	Power supply
Power supply type	Regulated switch mode
Rated power in W	60 W
Main Input Voltage	100…240 V AC single phase 120…370 V DC
Output voltage	12 V DC
Power supply output current	5 A
Operating position	Any position
Vibration resistance	2 gn (f= 9…150 Hz) conforming to EN/IEC 61131-2 3.5 mm (f= 5…9 Hz) conforming to EN/IEC 61131-2
Name of test	Conducted interference conforming to EN 61000-4-8 level 4 Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3 Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Conducted/radiated emissions conforming to EN 55022 class B Conducted/radiated emissions conforming to EN/IEC 55011 Emission conforming to EN/IEC 61000-6-3 Primary outage conforming to IEC 61000-4-11 Surge conforming to EN/IEC 61000-4-5
Complementary
Input voltage limits	85…264 V
Network frequency	47…63 Hz
Inrush current	50 A at 115 V AC 100 A at 230 V AC
Cos phi	0.65
Efficiency	80 %
Power dissipation in W	15 W
Current consumption	1 A at 240 V 2 A at 100 V
Input protection type	Integrated fuse (not interchangeable)
Output voltage limits	10.8…13.2 V
Line and load regulation	+/- 3 %
Holding time	>= 10 ms at 100 V >= 40 ms at 240 V
Output protection type	Against overload, protection technology: 1.1…1.5 x In Against overvoltage, protection technology: tripping if U > 1.25 x Un Against short-circuits, protection technology: automatic reset Thermal
Connections – terminals	For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 For input connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 12 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 12
Marking	CE
Mounting support	Panel Reversible mounting bracket
Operating altitude	2000 m
Output coupling	Series Parallel
Overvoltage category	II
Meantime between failure [MTBF]	100000 h at 40 °C
Status LED	1 LED (green) output voltage
Product weight	0.44 kg
Environment
Product certifications	KC RCM CSA 22-2 No 60950-1 EAC TUV 60950-1 cCSAus UL 508
Environmental characteristic	EMC conforming to EN 50081-1 EMC conforming to EN 50082-2 EMC conforming to EN 61000-6-3 EMC conforming to EN/IEC 61000-6-2 Safety conforming to EN/IEC 60950-1 Safety conforming to SELV
IP degree of protection	IP20 conforming to EN/IEC 60950
Ambient air temperature for operation	0…45 °C (without derating) 45…60 °C (with derating factor)
Ambient air temperature for storage	-25…85 °C
Relative humidity	20…90 %
Overvoltage category	Class I conforming to VDE 0106-1
Pollution degree	2
Dielectric strength	1500 V between input and ground 3000 V between input and output 500 V between output and ground
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Wide-range 100–240V AC input — works on Indian 230V AC, 110V AC international supply, and generator output without a voltage selector or rewiring.
Single-phase input — connects to standard 230V AC single-phase supply; no three-phase supply required.
Regulated 12V DC output — output voltage held stable across the full load range, preventing PLC, relay, and sensor malfunctions caused by supply variation.
60 W power rating — designed for continuous 24/7 duty in industrial control panels without derating.
Electronic short-circuit and overload protection — output current-limits on fault and self-recovers automatically on fault clearance; no fuses to replace after a wiring short.
35mm DIN rail mounting (EN 60715) — snaps into the control panel rail alongside MCBs and terminal blocks; no separate bracket or drilling required.
Schneider Electric ABL1 series regulated power supply — designed for industrial control panel duty with built-in overvoltage protection on the output.
Manufactured to IEC 61204 (LV power supplies) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

GB2DB07

❓ Frequently Asked Questions

Q: What loads can be powered from the 12V DC output of the ABL1REM12050?

A: The 12V DC regulated DC output of the ABL1REM12050 is suitable for 12V DC panels, automotive systems, LED drivers, and relay coils. The output is short-circuit and overload protected. Ensure total connected load current does not exceed the PSU’s rated output current (see nameplate). Allow 20% current headroom for inrush at startup and future load additions.

Q: Is the ABL1REM12050 compatible with both 110V and 230V AC mains supply?

A: Yes. The ABL1REM12050 accepts a wide-range 100–240V AC input, making it compatible with Indian 230V AC single-phase supply, 110V AC international supply, and generator output which may fluctuate. No voltage selector switch is required — the universal-input switching design handles the full input range automatically, simplifying installation and reducing procurement variants.

Q: Can multiple ABL1REM12050 units be connected in parallel to increase output current?

A: Standard SMPS units like the ABL1REM12050 are not designed for direct parallel operation without active current-sharing circuitry. Connecting outputs in parallel without current sharing causes one unit to carry the full load while the other idles — leading to premature failure. For higher current requirements, use a single higher-rated PSU or use Schneider Electric-specified redundancy modules that manage load sharing and provide N+1 fault tolerance for critical applications.
