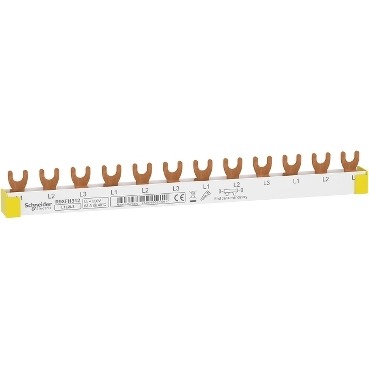

R9XFH312 | Resi9 – comb busbar – 3L – 18 mm pitch – 12 modules – 63 A – Schneider Electric

Name: Resi9 63A 12-Module Comb Busbar, 18mm Pitch | R9XFH312
Brand: Schneider Electric
SKU: R9XFH312
Price: 3071.11 INR
Availability: InStock

SKU: R9XFH312

Original price was: ₹4,207.00.Current price is: ₹3,071.11. Excl. GST

In stock

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-27%

R9XT20 | R9 SET OF 20 TOOTH CAPS – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: R9XT20

The Schneider Electric R9XFH312 is a busbar from the Resi9 range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 63 A at 40 °C, 400 V AC Ph/Ph. Buy the R9XFH312 | Resi9 – comb busbar – 3L – 18 mm pitch – 12 modules – 63 A online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	R9XFH312
Category	Busbar
Main
Range	Resi9
Product or component type	Comb busbar
Mounting mode	Horizontal
Accessory / separate part category	Connection accessory
Lines description	3L
Length in 18 mm modules	12
Standards	EN/IEC 61439-1
Product certifications	CE
Complementary
Number of ways	4 ways 3 L
Poles configuration for 1 way	1 x 3P
Connection pitch	18 mm
Connector type	Fork
Distance between way	54 mm
Marking	L1 L2 L3
Insulation	Insulated
Device presentation	Cuttable
[Ie] rated operational current	63 A at 40 °C
[Ue] rated operational voltage	400 V AC Ph/Ph
[Ui] rated insulation voltage	500 V AC
Mounting location	Bottom on biconnect
9 mm pitches	24
Width	220 mm
Colour	White (RAL 9003)
Range compatibility	Acti9 Acti9 K60 Resi9 Resi9 MCB Resi9 Resi9 RCBO Resi9 Resi9 RCCB Resi9 Resi9 SWITCH
Environment
Fire resistance	960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree	3
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.500 cm
Package 1 Width	1.500 cm
Package 1 Length	21.200 cm
Package 1 Weight	83.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	5
Package 2 Height	6.000 cm
Package 2 Width	8.500 cm
Package 2 Length	24.800 cm
Package 2 Weight	477.000 g
Unit Type of Package 3	S03
Number of Units in Package 3	90
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	9.017 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

63 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Plug-in neutral
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

R9XE310R9XT20A9KF71350BQA9KF71301BQA9KF71302BQA9KF71303BQA9KF71304BQ

❓ Frequently Asked Questions

Q: What is the significance of the 63 A rating on the R9XFH312?

A: The 63 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: How many single-pole MCBs can be installed in the R9XFH312 with 12 modules?

A: With 12 modules available, the R9XFH312 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
