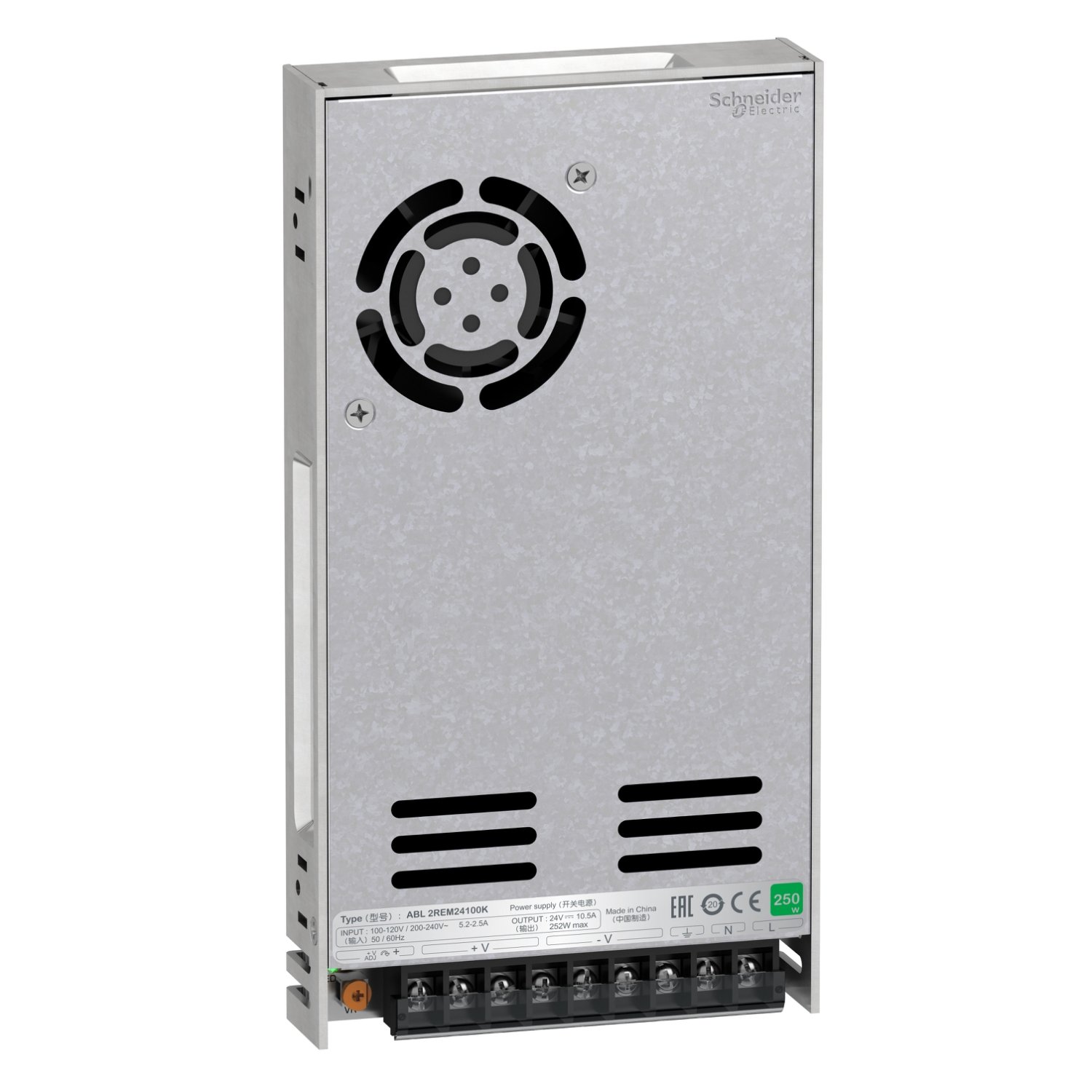

ABL2REM24100K | single phase power supply, 100…240V input, 24V DC output, 252W, 10,5A – Schneider Electric

Name: Schneider Electric 24V DC 10.5A Power Supply - ABL2REM24100K
Brand: Schneider Electric
SKU: ABL2REM24100K
Price: 4137.30 INR
Availability: InStock

SKU: ABL2REM24100K

Original price was: ₹9,194.00.Current price is: ₹4,137.30. Excl. GST

In stock

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric ABL2REM24100K dc power supply / smps from the Easy Modicon ABL2 range delivers dependable performance for stable DC control power. Key ratings include IP20. myelectric.in stocks the ABL2REM24100K | single phase power supply, 100…240V input, 24V DC output, 252W, 10,5A for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ABL2REM24100K
Category	DC Power Supply / SMPS
Main
Range of product	Easy Modicon ABL2
Product or component type	Power supply
Power supply type	Regulated switch mode
Rated power in W	252 W
Main Input Voltage	100…120 V AC single phase 200…240 V
Output voltage	24 V DC
Power supply output current	10.5 A
Operating position	Any position
Vibration resistance	4 gn (f= 10…500 Hz) conforming to IEC 61131-2
Name of test	Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A
Complementary
Input voltage limits	90…132 V 180…264 V
Network frequency	47…63 Hz
Inrush current	60 A at 100…120 V AC 60 A at 200…240 V AC
Cos phi	0.5
Efficiency	87 %
Power dissipation in W	37.6 W
Current consumption	2.5 A at 240 V
Input protection type	Integrated fuse (not interchangeable)
Output voltage limits	20.4…27.6 V
Line and load regulation	+/- 1 %
Holding time	>= 12 ms at 115 V
Output protection type	Against overload, protection technology: 1.1…1.5 x In Against short-circuits, protection technology: 1.1…1.5 x In Against overvoltage, protection technology: 28.8…33.6 V Thermal
Connections – terminals	For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
Marking	CE
Electromagnetic compatibility	Immunity to electromagnetic interference conforming to EN 55022 class B
Mounting support	DIN rail with accessory DIN rail with accessory
Operating altitude	5000 m
Output coupling	Series
Overvoltage category	II
Meantime between failure [MTBF]	600000 h at 25 °C
Status LED	1 LED (green) output voltage
Width	215 mm
Height	115 mm
Depth	30 mm
Product weight	0.75 kg
Environment
Product certifications	EAC IC RoHS KC RCM
IP degree of protection	IP20 conforming to IEC 62368-1
Ambient air temperature for operation	-30…70 °C (with power derating of 2.5 % per °C)
Ambient air temperature for storage	-40…85 °C
Relative humidity	10…95 %
Overvoltage category	Class I conforming to IEC 62368-1
Pollution degree	2
Dielectric strength	2000 V between input and ground
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.6 cm
Package 1 Width	12.3 cm
Package 1 Length	22.2 cm
Package 1 Weight	850.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	21
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	19.0 kg
Unit Type of Package 3	P06
Number of Units in Package 3	252
Package 3 Height	90.0 cm
Package 3 Width	60.0 cm
Package 3 Length	80.0 cm
Package 3 Weight	221.5 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Wide-range 100–240V AC input — works on Indian 230V AC, 110V AC international supply, and generator output without a voltage selector or rewiring.
Single-phase input — connects to standard 230V AC single-phase supply; no three-phase supply required.
Regulated 24V DC output — output voltage held stable across the full load range, preventing PLC, relay, and sensor malfunctions caused by supply variation.
252 W power rating — designed for continuous 24/7 duty in industrial control panels without derating.
Electronic short-circuit and overload protection — output current-limits on fault and self-recovers automatically on fault clearance; no fuses to replace after a wiring short.
35mm DIN rail mounting (EN 60715) — snaps into the control panel rail alongside MCBs and terminal blocks; no separate bracket or drilling required.
Schneider Electric ABL2 series regulated power supply — designed for industrial control panel duty with built-in overvoltage protection on the output.
Manufactured to IEC 61204 (LV power supplies) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.

❓ Frequently Asked Questions

Q: What loads can be powered from the 24V DC output of the ABL2REM24100K?

A: The 24V DC regulated DC output of the ABL2REM24100K is suitable for PLCs, solenoid valves, and contactors with DC coils. The output is short-circuit and overload protected. Ensure total connected load current does not exceed the PSU’s rated output current (see nameplate). Allow 20% current headroom for inrush at startup and future load additions.

Q: Is the ABL2REM24100K compatible with both 110V and 230V AC mains supply?

A: Yes. The ABL2REM24100K accepts a wide-range 100–240V AC input, making it compatible with Indian 230V AC single-phase supply, 110V AC international supply, and generator output which may fluctuate. No voltage selector switch is required — the universal-input switching design handles the full input range automatically, simplifying installation and reducing procurement variants.

Q: Can multiple ABL2REM24100K units be connected in parallel to increase output current?

A: Standard SMPS units like the ABL2REM24100K are not designed for direct parallel operation without active current-sharing circuitry. Connecting outputs in parallel without current sharing causes one unit to carry the full load while the other idles — leading to premature failure. For higher current requirements, use a single higher-rated PSU or use Schneider Electric-specified redundancy modules that manage load sharing and provide N+1 fault tolerance for critical applications.
